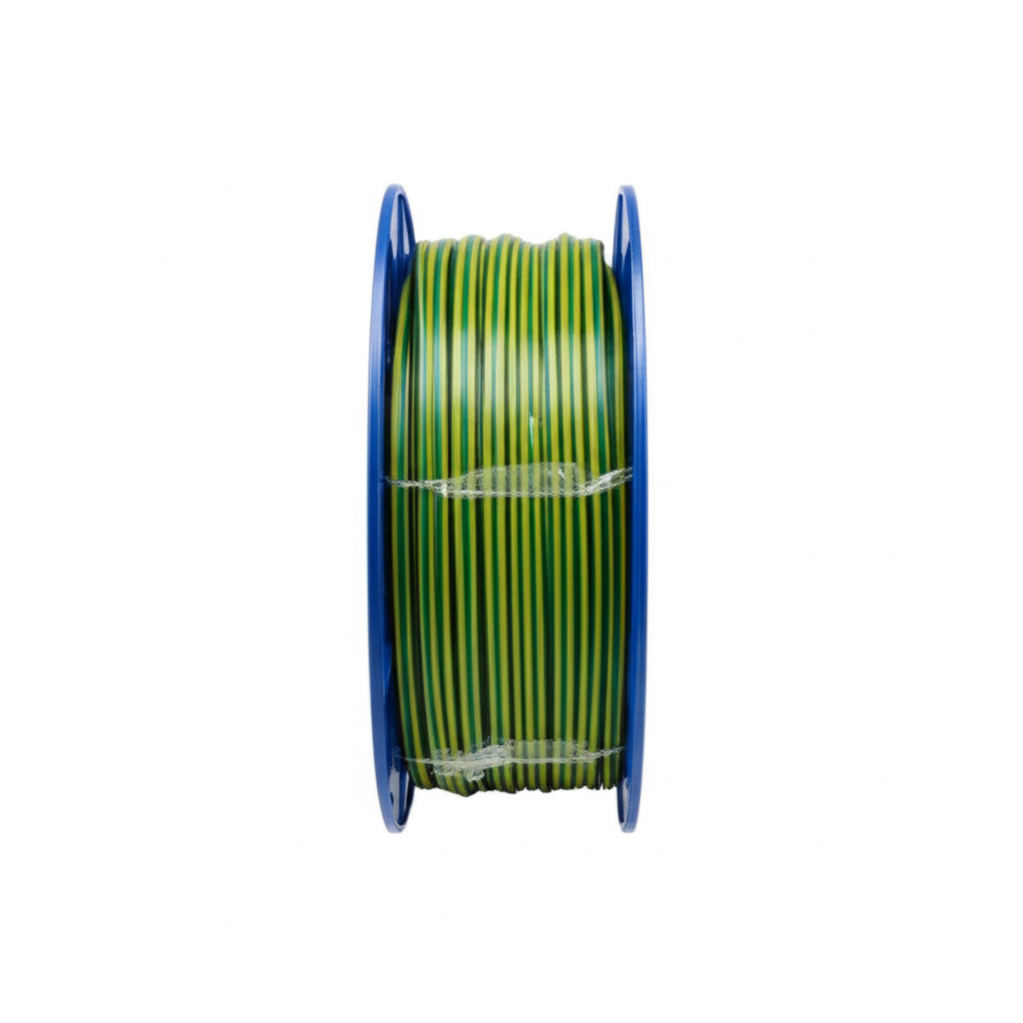

A premium single-core electrical cable designed for protective and critical grounding applications is the ELECTRA 16 mm2 PVC Earth cable Green/Yellow. In accordance with electrical safety regulations, it has a simple annealed copper conductor for maximum conductivity and is insulated with a sturdy V-90 PVC composite that is clearly colored green and yellow for instant identification as an earth conductor. In order to provide dependability and safety in a variety of electrical installations, this cable is constructed in accordance with strict Australian and New Zealand Standards (such as AS/NZS 5000.1, AS/NZS 1125, and AS/NZS 3808). In switchboards, control panels, and other enclosed electrical equipment where the cable is not susceptible to mechanical damage, it is frequently utilized for separate earth conductors.
Important attributes:
Purpose-Specific: Made especially for purposes using soil (grounding).
For superior electrical conductivity, use plain annealed copper wire as the conductor material.
Insulation: V-90 PVC (polyvinyl chloride) insulation, which is suited for continuous operation at temperatures up to 90°C and offers good durability and heat resistance.
For safety and compliance, color-coded insulation with distinctive green or yellow stripes is essential for unmistakable identification as an earth conductor.
Voltage Rating: Suitable for low voltage electrical systems, usually rated at 0.6/1 kV.
Standards Compliance: The product's quality and safety are guaranteed by its complete compliance with the applicable Australian and New Zealand Standards (AS/NZS 1125, AS/NZS 3808, and AS/NZS 5000.1).
Applications: Perfect for wiring in switchboards, control panels, and other enclosed electrical equipment where the cable is shielded, as well as for use as independent earth conductors. Ideal for glanding.
| Specification |
Details |
| Conductor Size |
16 mm² |
| Stranding |
7 strands of 1.70 mm |
| Insulation Thickness |
1.0 mm |
| Overall Diameter |
Approximately 7.1 mm |
| Voltage Rating |
0.6/1 kV |
| DC Resistance @ 20°C |
1.15 Ω/km |
| Current Rating |
71 Amp |
| Insulation Material |
V-90 PVC (or V90HT PVC) |
| Standards |
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1 |
.png)
