High Breaking Capacity: With a 6kA breaking capacity, this MCB ensures reliable protection against short circuits, safeguarding both the circuit and connected equipment.
C-Curve Tripping Characteristic: Ideal for circuits with moderate inrush currents, such as motors and transformers, reducing the risk of nuisance tripping during normal startup conditions.
Compact Design: The 18mm width allows for efficient use of panel space, accommodating more breakers in a single enclosure.
Flexible Installation: Offers the choice of line connection from either the top or bottom, providing versatility during installation.
Enhanced Safety: Features a trip-free locking device that can be locked in both the 'ON' and 'OFF' positions, preventing accidental operation.
Positive Contact Indicator: The toggle indicates the opening of all poles, enhancing safety and ensuring clear status indication.

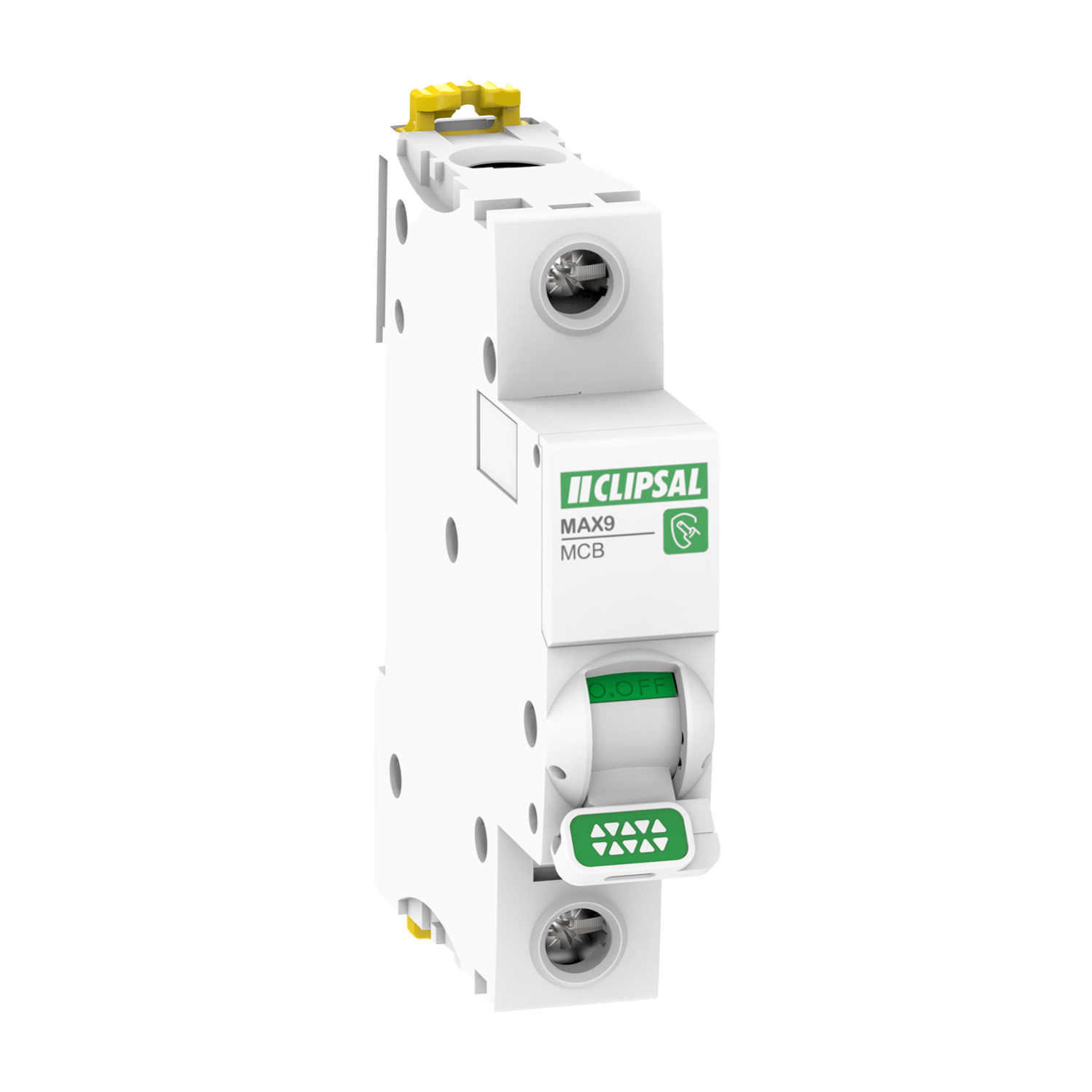

The Clipsal 1P-C32/6K is suitable for protecting circuits in residential and commercial environments, including:
Lighting circuits
Power outlets
Air conditioning systems
Cooktops and ovens
Hot water systems
Pool pumps
Other critical equipment requiring reliable protection
Feature |
Details |
Rated Current |
32A |
Poles |
1P (Single Pole) |
Tripping Curve |
C-curve (suitable for circuits with moderate inrush currents) |
Breaking Capacity |
6kA (at 240V AC) |
Voltage Rating |
240V AC |
Protection Rating |
IP20 (protection against solid objects larger than 12mm) |
Mounting |
DIN rail (18mm module width) |
Operating Temperature Range |
-25°C to +70°C |
Electrical Endurance |
10,000 cycles |
Mechanical Endurance |
20,000 cycles |
Terminal Capacity |
1–25 mm² flexible / 1–35 mm² rigid |
