High Breaking Capacity: With a 6kA breaking capacity, this MCB ensures reliable protection against short circuits, safeguarding both the circuit and connected equipment.
C-Curve Tripping Characteristic: Ideal for circuits with moderate inrush currents, such as motors and transformers, reducing the risk of nuisance tripping.
Compact Design: The 18mm width allows for efficient use of panel space, accommodating more breakers in a single enclosure.
Flexible Installation: Offers the choice of line connection from either the top or bottom, providing versatility during installation.
Enhanced Safety: Features a trip-free locking device that can be locked in both the 'ON' and 'OFF' positions, preventing accidental operation.
Positive Contact Indicator: The toggle indicates the opening of all poles, enhancing safety and ensuring clear status indication.
Applications:
Residential Electrical Systems: Protects circuits powering household appliances, lighting, and HVAC systems.
Commercial Applications: Used to safeguard circuits for office equipment, small motors, and other commercial machinery.
Industrial Settings: Ideal for circuits with moderate inrush currents, such as those supplying motors, pumps, or compressors.
| Feature |
Details |

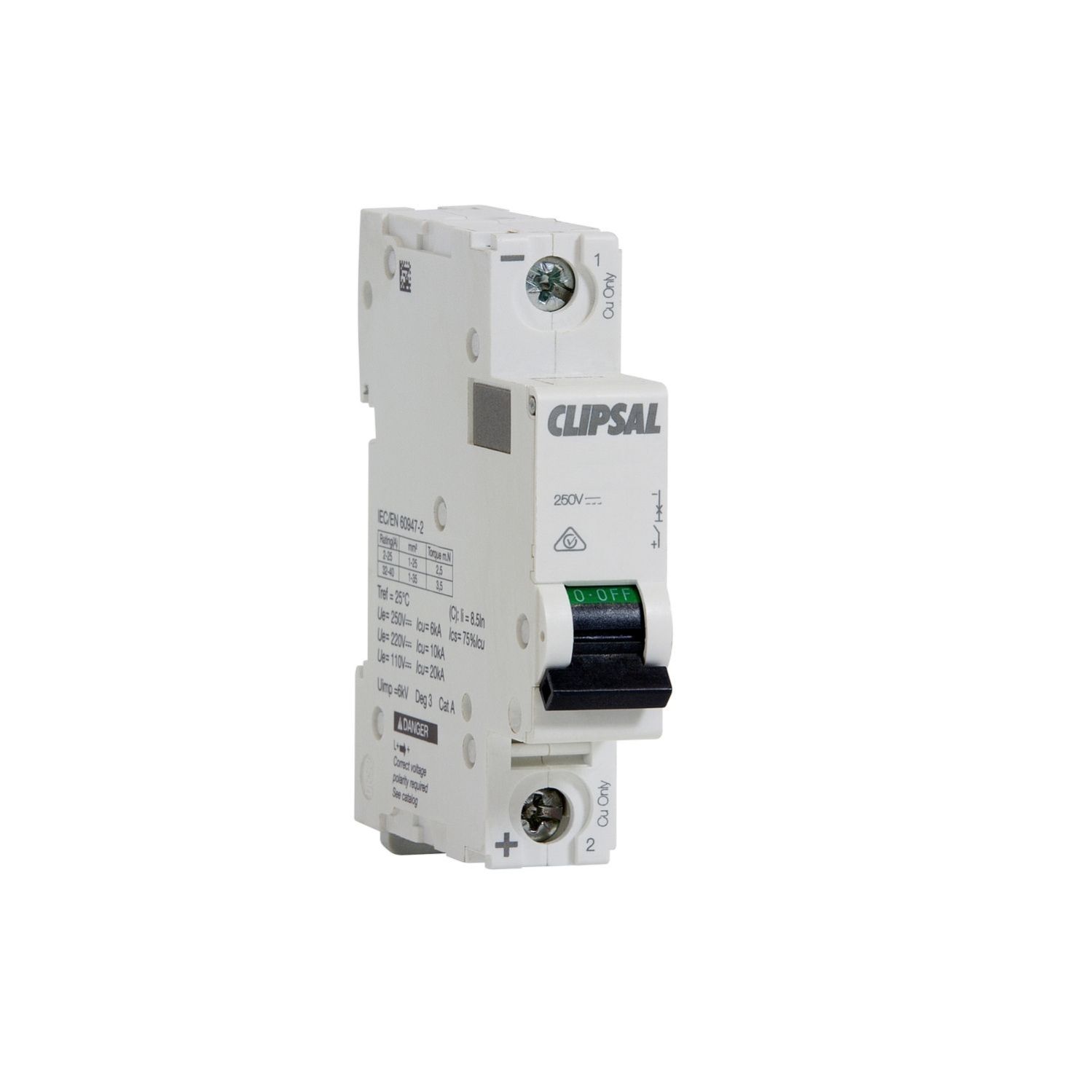

| Product Code |
1P-C40A/6K |
| Brand |
Clipsal (Schneider Electric) |
| Series |
MAX9 |
| Type |
Miniature Circuit Breaker (MCB) |
| Poles |
1P (Single Pole) |
| Rated Current |
40A at 30°C |
| Tripping Curve |
C-curve (suitable for moderate inrush currents) |
| Breaking Capacity |
6kA (at 240V AC, 50/60Hz) |
| Voltage Rating |
240V AC (50/60Hz) |
| Rated Insulation Voltage (Ui) |
500V AC |
| Rated Impulse Withstand Voltage (Uimp) |
4kV |
| Protection Rating |
IP20 (protection against solid objects larger than 12mm) |
| Mounting |
DIN rail (18mm module width) |
