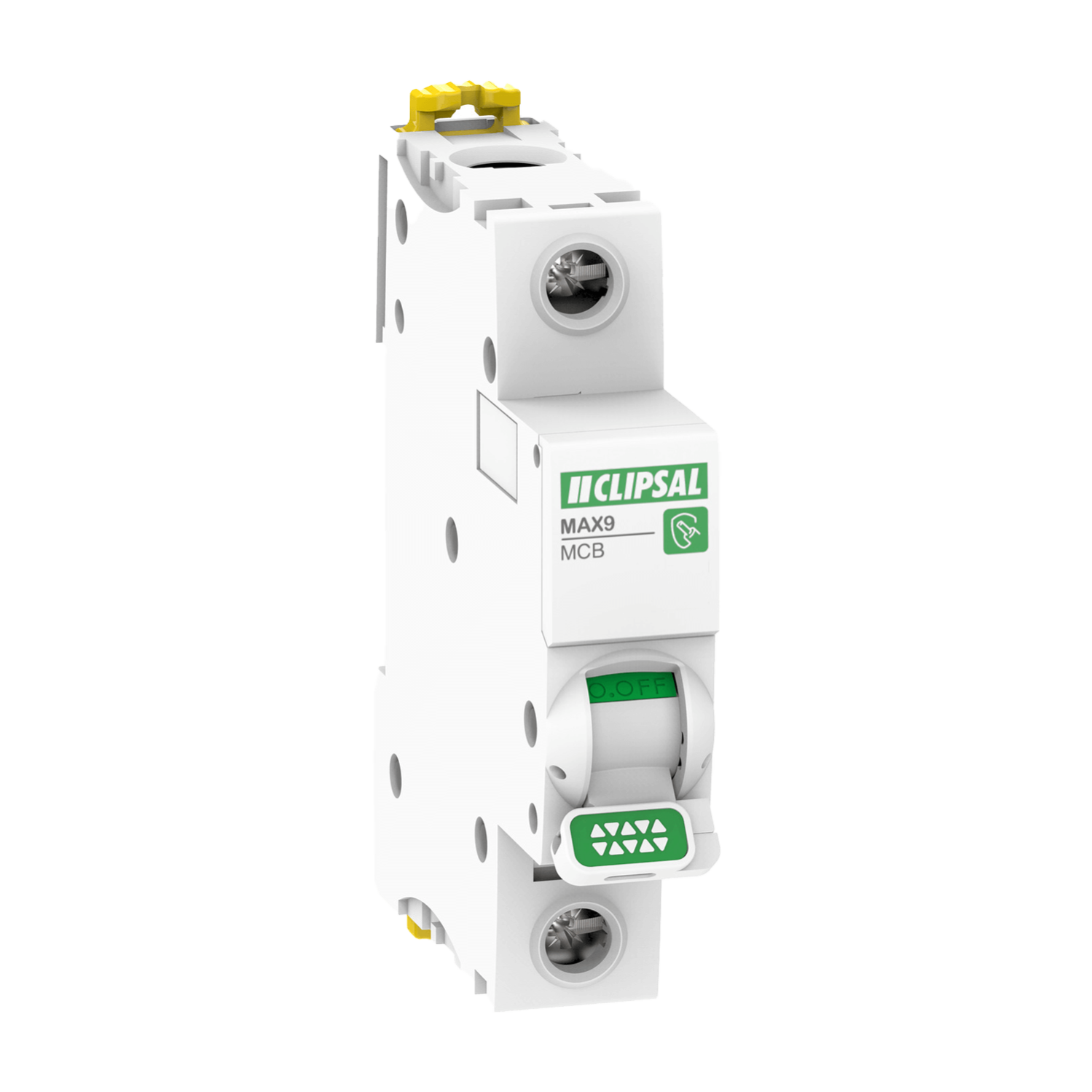

Rated Current: 50A, providing a substantial level of protection for circuits carrying moderate to high loads.
Poles: Single-pole (1P), meaning it is suitable for use in single-phase circuits.
Tripping Curve: C-curve, which is ideal for circuits with moderate inrush currents, such as motors, transformers, and other devices that experience a brief surge in current when starting.
Breaking Capacity: 6kA, meaning the circuit breaker can safely interrupt the flow of current during a short circuit event, up to a maximum fault level of 6kA.
Voltage Rating: 240V AC, which is typical for most household and commercial electrical systems.
Protection Rating: IP20, meaning the breaker is protected against solid objects larger than 12mm (e.g., fingers), but not water.
Environmental Conditions:
The MCB operates within a temperature range of -25°C to +70°C, making it suitable for use in various climates and environments.
Mounting: The MCB is designed to be mounted on a DIN rail, and it occupies an 18mm width module, which is standard for circuit breakers, making it easy to install in electrical panels.
Endurance:
Electrical Endurance: 10,000 cycles (ability to withstand on/off operations).
Mechanical Endurance: 20,000 cycles (ability to physically operate without failure).
Applications:
The Clipsal 1P-C50A/6K is ideal for use in circuits where there is a need for overcurrent protection, especially in environments where moderate to high inrush currents are expected, such as:
Residential circuits: Protects home electrical systems like lighting, appliances, and small machines.
Commercial and industrial installations: Used in circuits for motors, air conditioners, pumps, and other machinery that may experience brief surges in current
| Specification |
Details |
| Product Code |
1P-C50A/6K |
| Brand |
Clipsal (Schneider Electric) |
| Type |
Miniature Circuit Breaker (MCB) |
| Poles |
1P (Single Pole) |
| Rated Current |
50A |
| Tripping Curve |
C-curve (for moderate inrush currents) |
| Breaking Capacity |
6kA |
| Voltage Rating |
240V AC |
| Protection Rating |
IP20 (protection against solid objects larger than 12mm) |
| Mounting |
DIN Rail (18mm width) |
| Operating Temperature Range |
-25°C to +70°C |
| Electrical Endurance |
10,000 cycles |
| Mechanical Endurance |
20,000 cycles |
.png)
