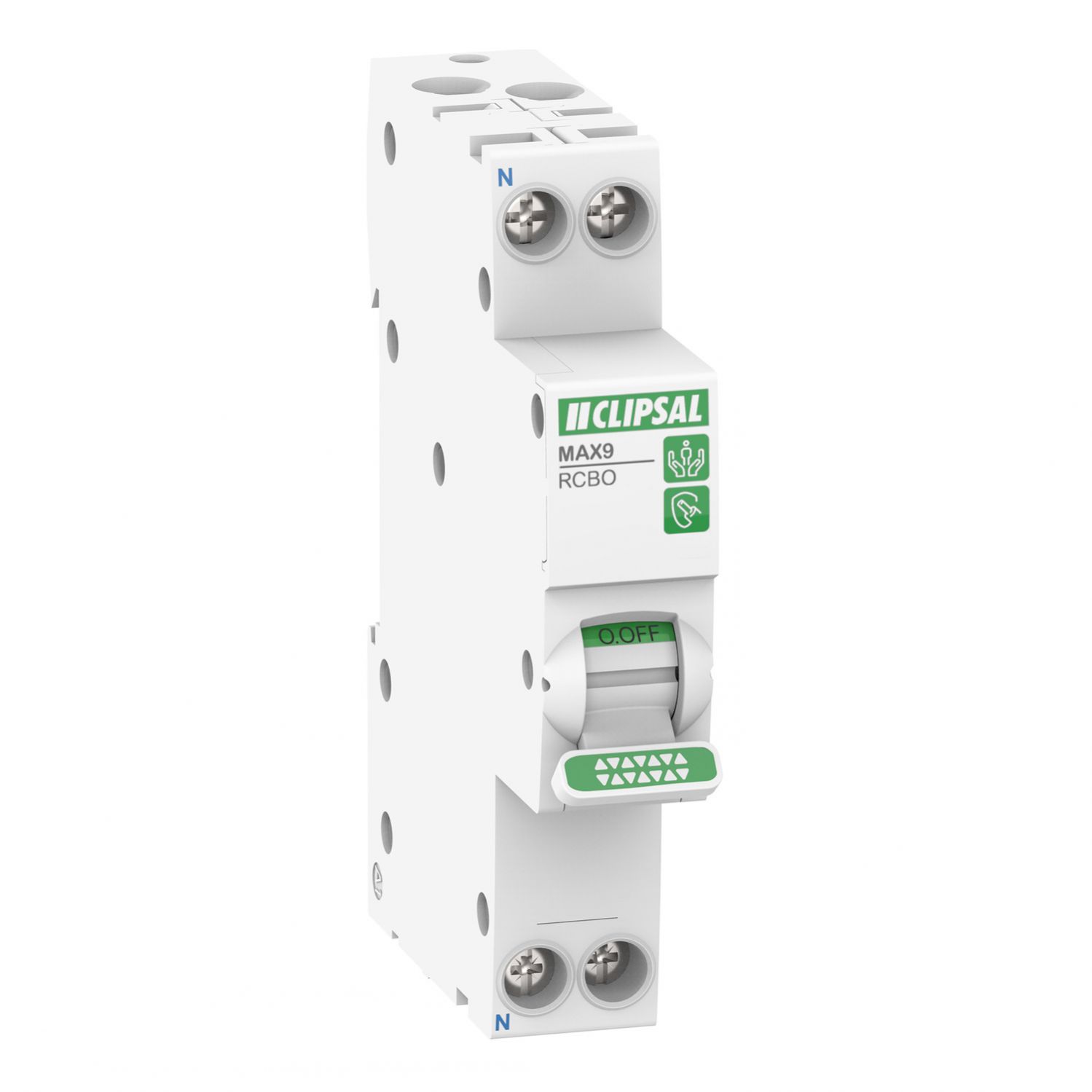

Compact Design: Slim 1-module width allows for more RCBOs to be installed in one enclosure, ideal for retrofit installations where space is limited.
Flexible Installation: Top and bottom line and load terminals for ease of installation.
Enhanced Safety: Type A RCD provides protection against both AC and pulsating DC residual currents.
Locking Mechanism: Trip-free locking device allows the breaker to be locked in the 'ON' or 'OFF' position, enhancing safety during maintenance.
Compliance: Meets AS/NZS 61009.1 standards, ensuring reliability and safety
Applications:
Protecting household circuits: The RCBO ensures protection against both overloads, short circuits, and earth leakage faults (e.g., faulty appliances or damaged cables).
Kitchen and bathroom circuits: These areas are especially vulnerable to leakage currents due to the presence of water and electrical appliances. The MAX9R3116 offers safety by detecting residual currents and quickly disconnecting the circuit to prevent electric shock hazards.
Small offices and shops: Provides protection to lighting and power circuits in office spaces or small commercial establishments.
Machinery and power supply systems: The RCBO is used to protect machinery circuits from faults caused by electrical leakage, ensuring safe operation in industrial environments.
Garden tools and outdoor lighting: Protects outdoor circuits, where electrical faults or leakage currents from wet conditions can present a significant safety risk.
| Specification |
Value |
| Rated Current (In) |
16 A at 30°C |
| Tripping Curve |
C |
| Short-Circuit Breaking Capacity (Icn) |
6,000 A at 240 V AC |
| Earth Leakage Sensitivity |
30 mA |
| Type |
A (sensitive to AC and pulsating DC) |
| Rated Operational Voltage (Ue) |
240 V AC, 50/60 Hz |
| Rated Insulation Voltage (Ui) |
440 V |
| Rated Impulse Withstand Voltage (Uimp) |
4 kV |
| Electrical Endurance |
10,000 cycles |
| Mechanical Endurance |
20,000 cycles |
| Operating Temperature Range |
-25°C to +70°C |
| Protection Degree |
IP20 |
| Mounting |
DIN rail (18 mm pitch |
