Rated Current: The RCBO is designed to handle 10 Amps of current, making it suitable for general residential and light commercial circuits.
Poles: It features a 1-pole + neutral (1P+N) configuration, which is ideal for single-phase circuits.
Breaking Capacity: The RCBO has a 4.5kA breaking capacity, which allows it to safely interrupt fault currents up to 4.5kA, ensuring effective protection against short circuits.
Residual Current Sensitivity: This RCBO is sensitive to 30mA of earth leakage current, which ensures that it trips when there is a potential risk of electric shock or an earth fault.
Type A Protection: It provides Type A protection, which means it can detect both AC and pulsating DC fault currents. This feature is critical for applications that involve devices that could generate these types of fault currents.
Applications:
Residential Installations: It ensures protection against electrical faults, preventing potential hazards in homes.
Commercial Installations: Ideal for small office setups and commercial spaces where both overcurrent and earth leakage protection are essential.
Industrial Use: It provides protection for circuits in light industrial environments, ensuring safety from faults and preventing damage to electrical equipment.
Specification |
Details |
Model |

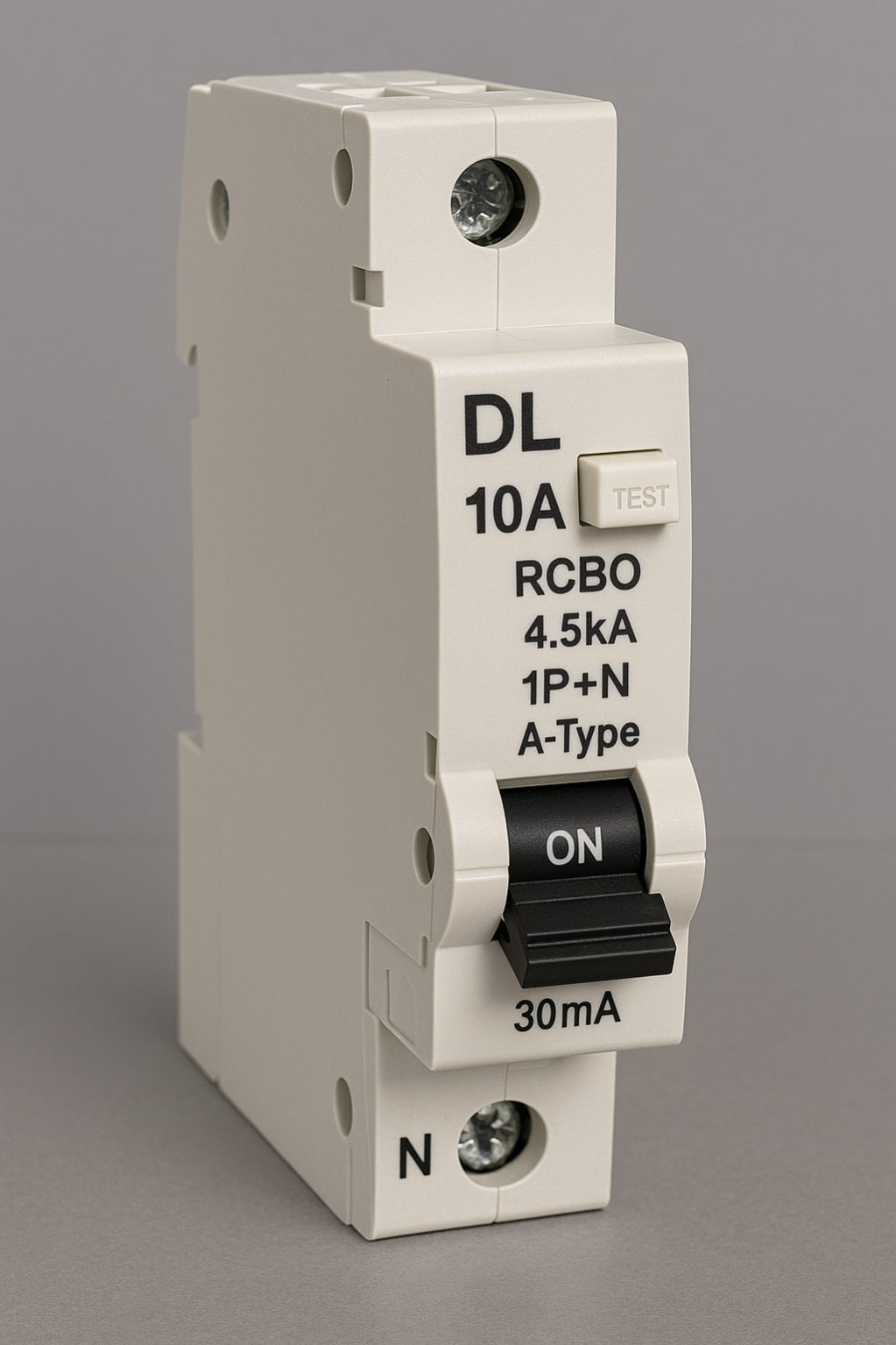

DL 10A RCBO 4.5kA 1P+N A-Type 30mA |
Rated Current |
10 Amps |
Poles |
1 Pole + Neutral (1P+N) |
Breaking Capacity |
4.5kA |
Residual Current Sensitivity |
30mA (Type A) |
Type of Protection |
Overcurrent & Earth Leakage Protection |
Voltage Rating |
240V AC |
