Rated Current: 10 Amps, making it suitable for typical residential and light commercial circuits.
Poles: 1 Pole + Neutral (1P+N), which is ideal for single-phase installations.
Breaking Capacity: 3kA, allowing it to safely interrupt fault currents up to 3kA.
Residual Current Sensitivity: 30mA (Type A), providing protection against both AC and pulsating DC fault currents.
Voltage Rating: Rated for 240V AC circuits.
Overcurrent & Earth Leakage Protection: Combines the functions of overcurrent protection (against overloads) and earth leakage protection (to prevent electrical shocks).
Mounting Type: Designed to be mounted on a DIN rail, ensuring easy and secure installation in electrical panels.
Compliance with International Standards: Meets IEC 61009-1 and IEC 60947-2 safety standards.
Specification |
Details |
Model |

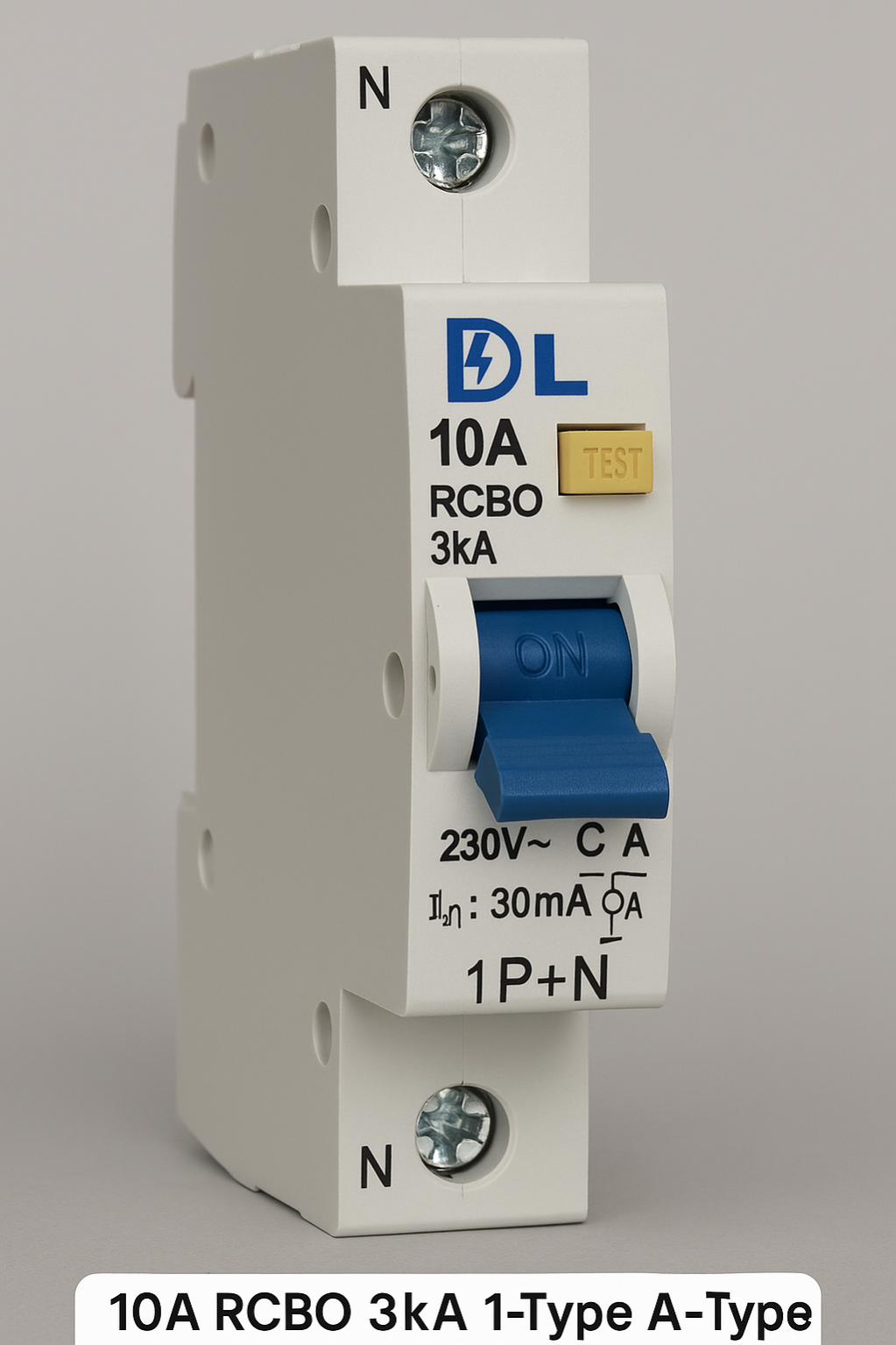

DL 10A RCBO 3kA 1P+N A-Type 30mA |
Rated Current |
10 Amps |
Poles |
1 Pole + Neutral (1P+N) |
Breaking Capacity |
3kA |
Residual Current Sensitivity |
30mA (Type A) |
Type of Protection |
Overcurrent & Earth Leakage Protection |
Voltage Rating |
240V AC |
Mounting Type |
DIN Rail |
Operating Temperature Range |
-5°C to +40°C |
Tripping Characteristics |
Instantaneous or delayed, depending on the current |
Standards Compliance |
IEC 61009-1, IEC 60947-2 |
Dimensions |
Approx. 81mm (Height) x 36mm (Width) x 70mm (Depth) |
Weight |
Approx. 0.2 kg |
Application |
Residential, Commercial, Industrial |
