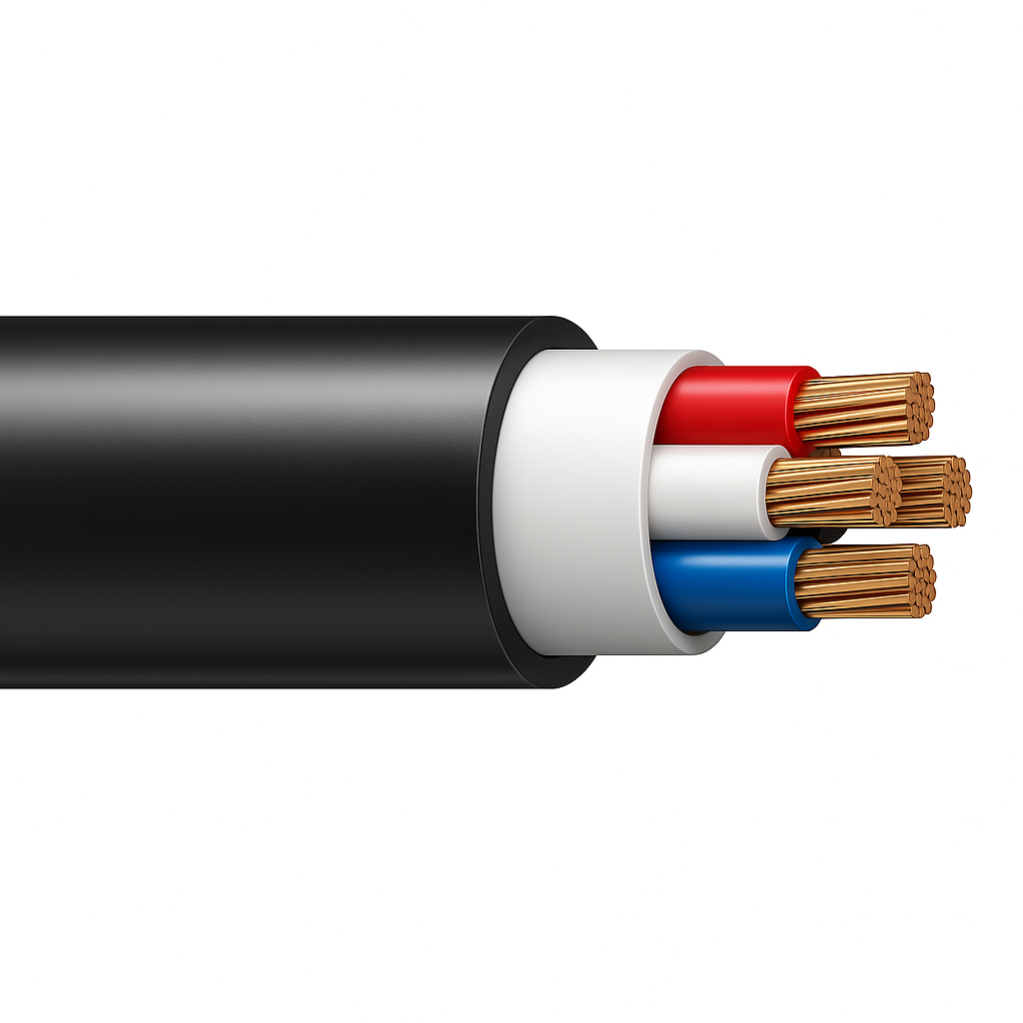

The Electra 16mm 4 Core XLPE Underground Cable is intended for underground installation and low voltage (0.6/1kV) power distribution. This cable has exceptional thermal and mechanical performance and is perfect for fixed installations in commercial, light industrial, and residential applications thanks to its sturdy XLPE insulation and long-lasting PVC sheath.
Important attributes:
Type of Cable: Underground 4-Core XLPE Sheathed and Insulated PVC.
Stranded Plain Annealed Copper (Class 5) is the conductor.
XLPE (cross-linked polyethylene) is used as insulation.
Sheath: Black outer layer of UV-stabilized PVC.
The primary colors are red, white, blue, and black.
Yes, flame retardant; it complies with AS/NZS regulations.
Rating for Voltage: 0.6/1 kV.
Temperature Range (XLPE rated): -15°C to +90°C.
Installation options include conduit, subterranean duct, or direct burial.
Parameter |
Value |
SKU |
XLPE4160 |
Conductor Area |
16 mm² |
Number of Cores |
4 |
Core Colours |
Red, White, Blue, Black |
Insulation Thickness |
0.7 mm (XLPE) |
Sheath Thickness |
~1.8 mm (PVC) |
Conductor Stranding |
7 wires of 1.70 mm |
Overall Diameter (approx.) |
22.5 mm – 25 mm |
Minimum Bending Radius |
10 × OD (approx. 250 mm) |
Weight per Meter |
~1.18 to 1.25 kg/m |
Rated Voltage |
0.6/1 kV |
Standard Compliance |
AS/NZS 5000.1, AS/NZS 1125 |
