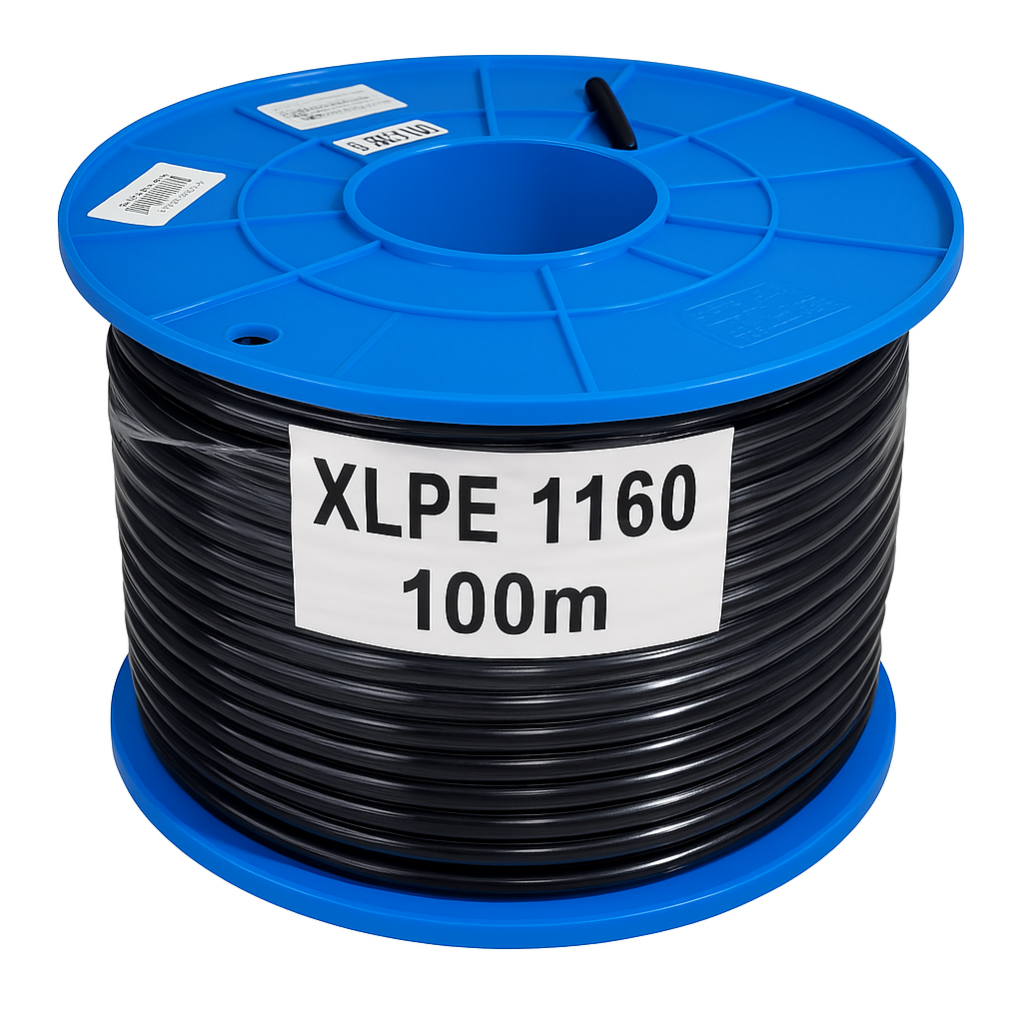

For optimum ordering freedom, the Electra XLPE1160 is a quality, unarmoured 16mm² single core power cable that may be purchased by the meter. It has a sturdy Black 5V-90 PVC sheath and strong XLPE (cross-linked polyethylene) X-90 insulation. This cable is a great option for fixed wire applications, such as mains, sub-mains, and sub-circuits, in commercial, industrial, and residential settings. As long as it is not subjected to mechanical stress, its design ensures dependability and safety for a range of installations, including those that are unenclosed, enclosed in conduit, buried directly, or in underground ducts. The XLPE1160 was manufactured in accordance with strict Australian and New Zealand standards (AS/NZS 1125, AS/NZS 3808, and AS/NZS 5000.1), guaranteeing a dependable, efficient, and safe electrical supply.
Important attributes:
0.6/1 kV is the voltage rating, making it appropriate for a variety of common power applications.
High Temperature Performance: Up to 90°C can be operated continuously.
Sturdy Construction: Contains a sturdy Black 5V-90 PVC shell for strong mechanical protection and insulation integrity, as well as XLPE X-90 insulation (natural color underneath sheath).
Flexible Installation: Suitable for a number of installation techniques, including conduit, unenclosed, direct burial, and underground ducts.
Standards Compliant: High quality and safety are ensured by manufacturing in accordance with AS/NZS 1125, AS/NZS 3808, and AS/NZS 5000.1 standards.
Optimal Conductivity: For greatest efficiency and current carrying capacity, use plain annealed copper conductors.
| Parameter |
Details |
| SKU |
XLPE1160 |
| Conductor Material |
Annealed Plain Copper |
| Conductor Stranding |
7/1.7 mm |
| Conductor Size |
16 mm² |
| Insulation Material |
X-90 XLPE |
| Insulation Thickness |
0.7 mm |
| Sheath Material |
5V-90 PVC |
| Sheath Thickness |
1.4 mm |
| Voltage |
0.6/1kV |
| Max Conductor Temp |
90°C (normal), 250°C (short circuit) |
| Bending Radius |
150 mm |
| Application |
Power distribution, industrial machinery, control panels |
| Standards |
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1 |
