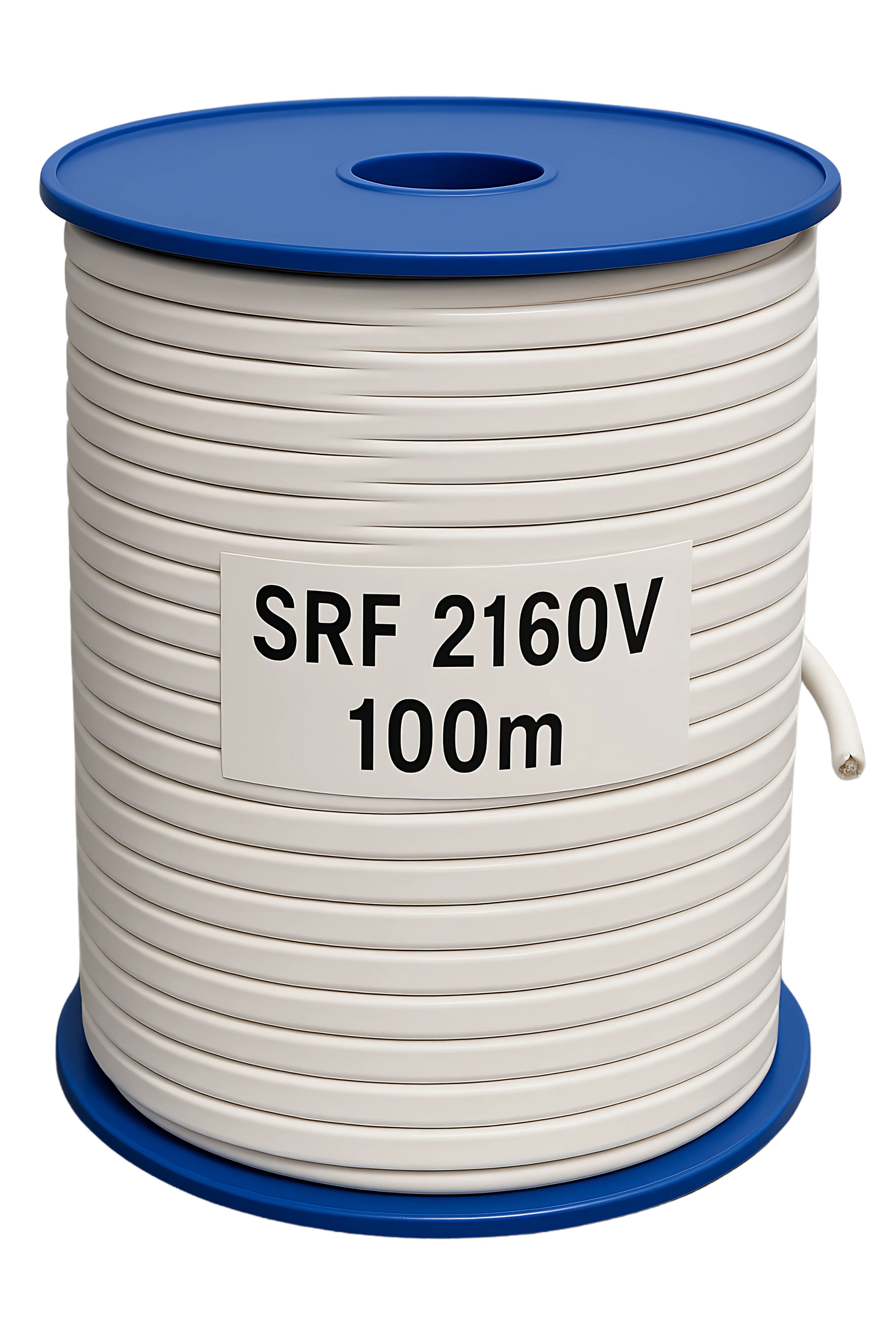

This 16mm² twin flat TPS (thermoplastic sheathed) cable is called the Electra SRF2160V. It has two plain, black and red annealed copper conductors that are each separately insulated with V90 PVC. A sturdy white 3V-90 PVC outer sheath that is easy to rip encases the entire cable. As long as it is adequately shielded from mechanical harm, this cable is specifically made for flexible installation in a range of settings, such as exposed areas, conduits, direct burial, or underground ducts. To guarantee the greatest standards of electrical safety and performance, it is manufactured in strict accordance with Australian and New Zealand requirements (AS/NZS 1125, AS/NZS 3808, and AS/NZS 5000.2).
Important Features:
Twin Active Design: Provides distinct phase identification and efficient and dependable electrical power transmission by using two active conductors (black and red).
The 16mm² Cross-Sectional Area has a very high current-carrying capability, which makes it appropriate for demanding applications such large fixed appliances, sub-mains, or circuits that need a lot of power delivery in commercial, industrial, and residential installations.
Excellent electrical conductivity is guaranteed by plain annealed copper conductors, which also offer enough flexibility to make handling and installation simpler.
PVC V90 Insulation: Provides strong electrical insulation that can tolerate conductor working temperatures up to 90°C continuously.
The outer sheath of the Easy-Tear 3V-90 White Sheath is made especially for simple and clean peeling, which drastically cuts down on installation time and effort. In a variety of applications, the white hue guarantees a tidy and unobtrusive look.
New Zealand/Australian Standards Compliant: Superior safety, dependability, and compliance with regional electrical codes are ensured by the rigorous adherence to AS/NZS 1125 (conductors), AS/NZS 3808 (insulating and sheathing compounds), and AS/NZS 5000.2 (electric cables) throughout manufacturing.
Versatile Use: Perfect for general electrical wiring in a variety of contexts, including major commercial and industrial projects with high power requirements as well as bigger domestic applications.
Various Installation Methods: Provides flexibility in wiring design, permitting installation in underground ducts, closed conduits, unenclosed conduits, or direct buried, contingent on the particular project requirements and safety precautions.
| Specification |
Details |
| Model Number |
SRF2160V |
| Conductor Size |
16MM2 |
| Stranding |
2x7/1.35 mm |
| Insulation Material |
PVC V90 |
| Insulation Thickness |
Approximately 1.0 mm |
| Sheath Thickness |
Approximately 1.2 mm |
| Sheath Material |
3V-90 PVC |
| Conductor Material |
Plain annealed copper |
| Bend Radius |
Approximately 70 mm |
| Conductor Resistance |
DC: 1.15 Ohm/km; AC: 1.4 Ohm/km |
| Voltage Rating |
450/750 V |
| Core Colors |
Red and Black |
| Standard Pack Size |
100 meters |
| Standards |
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.2 |
