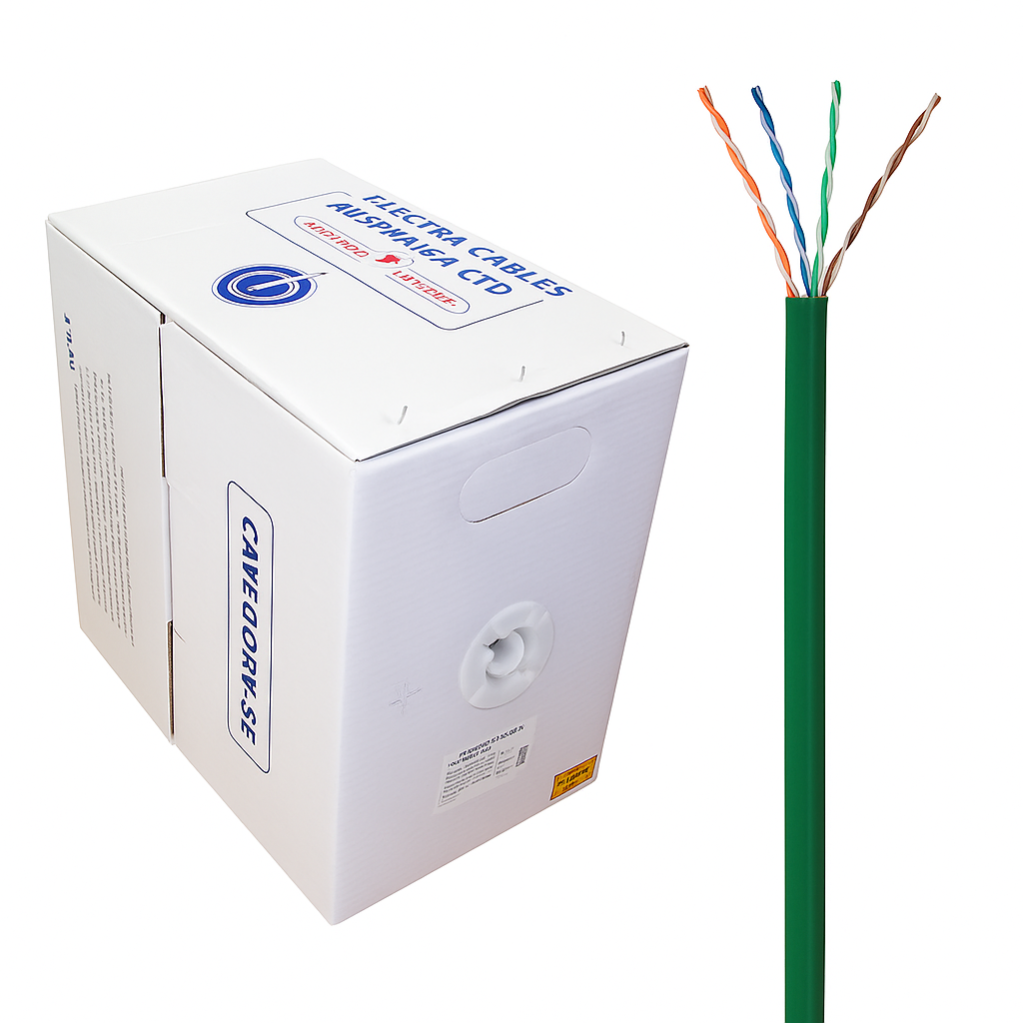

High-speed, high-performance unshielded twisted pair cables like the ELECTRA CAT6 UTP Cable are made to provide dependable network connectivity in commercial, residential, and industrial settings. This cable, which has 23AWG solid bare copper conductors, enables 10/100/1000 Mbps (Gigabit Ethernet) and is perfect for high-bandwidth applications including advanced data centers, VoIP, and HD video streaming.
It makes long cable runs and installations easier and comes in an easy-pull package that is 305 meters (1,000 feet) long. Complete adherence to ISO/IEC 11801 and TIA/EIA 568-C.2 performance standards.
Key Features:
Superior quality solid copper conductors with 23AWG.
Unshielded Twisted Pair, or UTP, for less crosstalk.
Support for bandwidth up to 250 MHz.
Ready for gigabit Ethernet (10/100/1000 Mbps).
Compatible with keystone jacks and RJ45 connectors.
An outer jacket made of PVC for durability and flexibility.
provided in a handy 305-meter pull box.
Jacket that resists flames (rated CM or CMR).
| Specification |
Details |
| Cable Category |
CAT6 |
| Conductor Material |
Solid Bare Copper |
| Conductor Size |
23 AWG |
| Number of Conductors |
4 Pairs (8 conductors) |
| Cable Type |
UTP (Unshielded Twisted Pair) |
| Jacket Material |
PVC |
| Bandwidth |
Up to 250 MHz |
| Performance Standard |
TIA/EIA-568-C.2, ISO/IEC 11801 |
| Compliance |
RoHS, ETL/UL (depending on model) |
| Insulation Material |
HDPE (High-Density Polyethylene) |
| Outer Diameter |
Approx. 6.2 mm ± 0.3 mm |
| Temperature Rating |
-20°C to +60°C |
| Application |
LAN, CCTV, VoIP, Data Centers |
