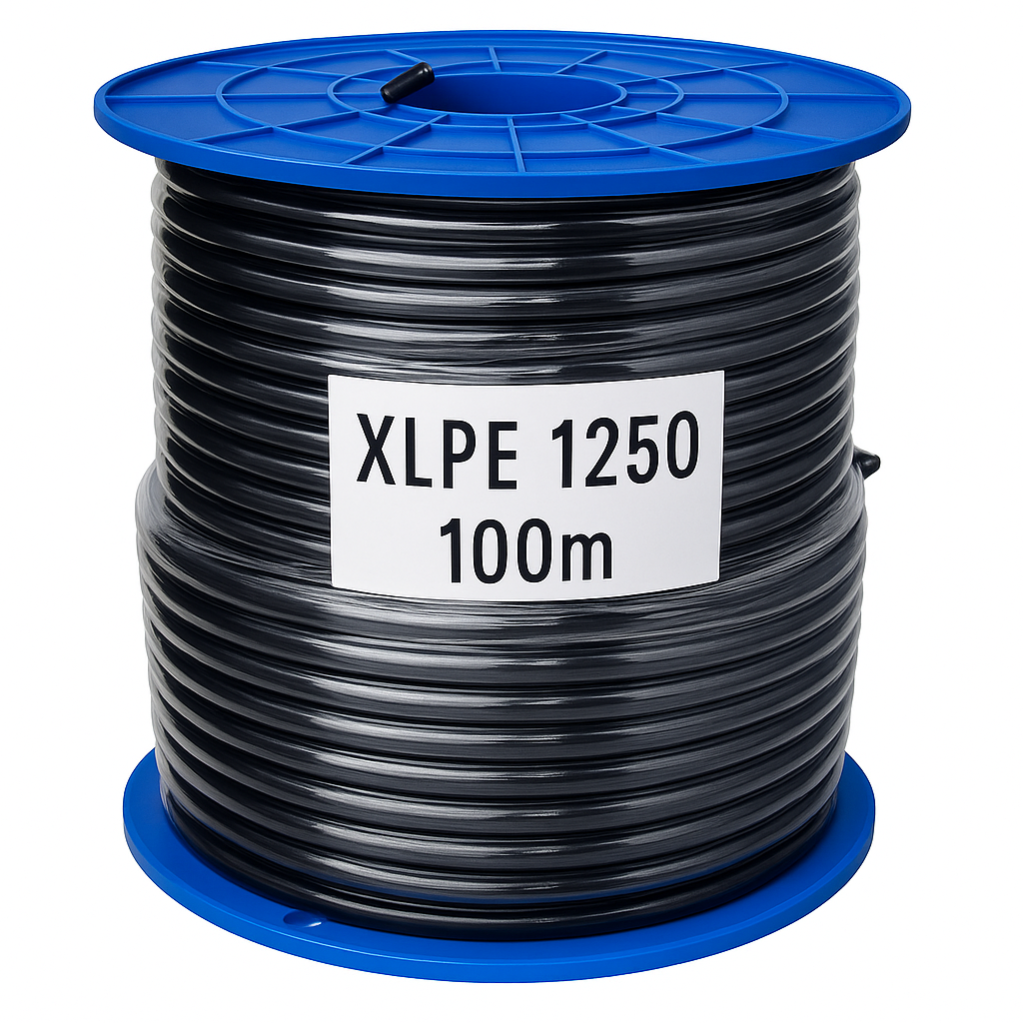

A premium, unarmoured 25mm² single core power cable, the Electra XLPE1250 comes in a handy 100-meter drum. This cable is especially made for sturdy and dependable fixed wiring applications in homes, businesses, and industries. It has outstanding mechanical and thermal qualities thanks to its robust Black 5V-90 PVC sheath and long-lasting XLPE (cross-linked polyethylene) X-90 insulation. Its design guarantees reliability and safety for a variety of installations, including unenclosed, in conduit, direct burial, or subterranean ducts, where it is not subject to mechanical stress. It is perfect for mains, sub-mains, and sub-circuits. Produced in accordance with the strict Australian and New Zealand standards (AS/NZS 1125, AS/NZS 3808, and AS/NZS 5000.1), the XLPE1250 ensures a dependable, efficient, and safe electrical supply.
Important attributes:
Because of its 0.6/1 kV voltage rating, it can be used in a variety of general power applications.
High Temperature Performance: Up to 90°C can be operated continuously.
Sturdy Design: XLPE X-90 insulation and a durable Black 5V-90 PVC shell provide strong mechanical defense and insulation integrity.
Flexible Installation: Suitable for a number of installation techniques, including conduit, unenclosed, direct burial, and underground ducts.
Standards Compliant: High quality and safety are ensured by manufacturing in accordance with AS/NZS 1125, AS/NZS 3808, and AS/NZS 5000.1 standards.
Optimal Conductivity: For greatest efficiency and current carrying capacity, use plain annealed copper conductors.
Pre-packaged Length: Easy stock management or larger projects with a handy 100-meter drum.
| Parameter |
Details |
| SKU |
XLPE1250 |
| Conductor Size |
25 mm² |
| Stranding |
19 strands of 1.35 mm diameter |
| Insulation Thickness |
0.9 mm |
| Sheath Thickness |
1.4 mm |
| Overall Diameter |
Approximately 11.4 mm |
| Minimum Bend Radius |
170 mm |
| Conductor Resistance |
DC: 0.727 Ohm/km; AC: 0.932 Ohm/km |
| Voltage Rating |
0.6/1 kV |
| Maximum Operating Temp |
90°C |
| Standard Pack Size |
100 meters per roll |
| Standards |
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1 |
