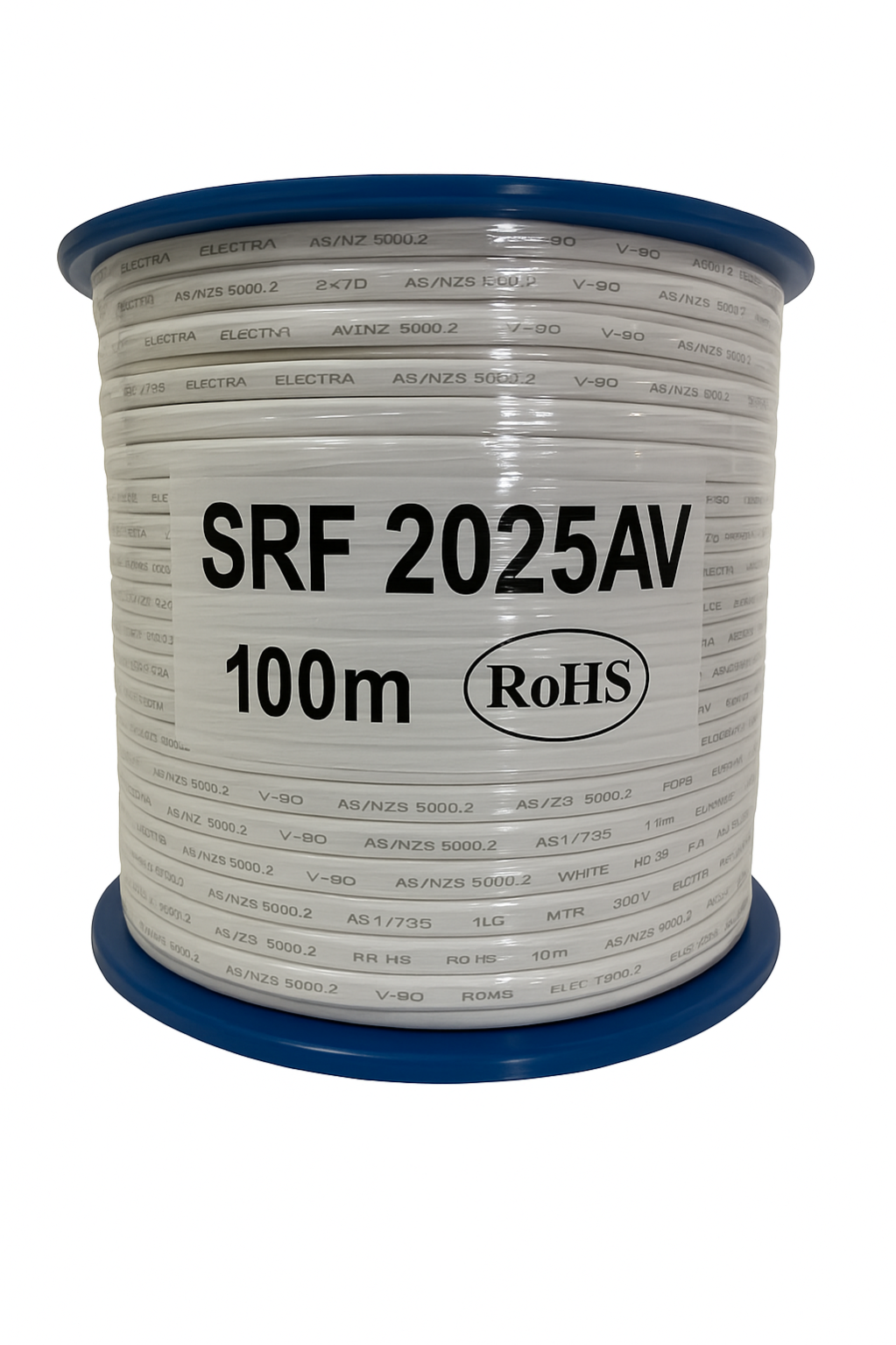

A 2.5mm² Twin Active Flat TPS (Thermoplastic Sheathed) cable is the Electra SRF2025AV. It is composed of two conventional red and white annealed copper conductors for active identification, each insulated with V90 PVC. A sturdy, easy-to-tear 3V-90 PVC outer shell encloses the entire system. This cable is specifically made for flexible installation; it can be used in conduits, underground ducts, direct burial, or unenclosed applications as long as sufficient protection against mechanical damage is guaranteed. Strict Australian/New Zealand standards (AS/NZS 1125, AS/NZS 3808, and AS/NZS 5000.2) are followed during manufacturing to ensure high electrical safety and performance in local conditions.
Important Features:
Two active conductors (white and red) are used in the twin active design to transmit electrical power in an effective and transparent manner.
2.5mm² Cross-Sectional Area: Offers sufficient current-carrying capacity for a variety of typical power circuits in homes, businesses, and light industries, including fixed appliances and general power outlets.
Excellent electrical conductivity and flexibility are guaranteed by plain annealed copper conductors, making handling and installation simpler.
PVC V90 Insulation: Provides strong electrical insulation that can tolerate conductor working temperatures up to 90°C continuously.
The exterior sheath of the Easy-Tear 3V-90 White Sheath is made to be easily and cleanly stripped, which drastically cuts down on installation time and effort. In a variety of applications, the white hue guarantees a tidy and unobtrusive look.
Reliability, safety, and compliance with local electrical codes are ensured by the rigorous adherence to AS/NZS 1125 (conductors), AS/NZS 3808 (insulating and sheathing compounds), and AS/NZS 5000.2 (electric cables) throughout manufacturing.
Versatile Use: Perfect for general electrical wiring in a variety of contexts, such as homes, businesses, and light industrial settings.
Various Installation Methods: Provides flexibility in wiring design, including installation in underground ducts, closed conduits, unenclosed conduits, or direct buried, contingent on project specifications and safety precautions.
| Specification |
Details |
| Model Number |
SRF2025AV |
| Conductor Size |
2.5 MM2 |
| Stranding |
2x7/0.67 mm |
| Insulation Material |
PVC V90 |
| Insulation Thickness |
Approximately 0.7 mm |
| Sheath Thickness |
Approximately 1 mm |
| Sheath Material |
PVC 3V-90 Easy-tear |
| Conductor Material |
Plain annealed copper |
| Bend Radius |
Approximately 40 mm |
| Conductor Resistance |
DC: 7.41 Ohm/km; AC: 9.01 Ohm/km |
| Voltage Rating |
450/750 V |
| Core Colors |
Red and White |
| Standard Pack Size |
100 meters |
| Standards |
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.2 |
