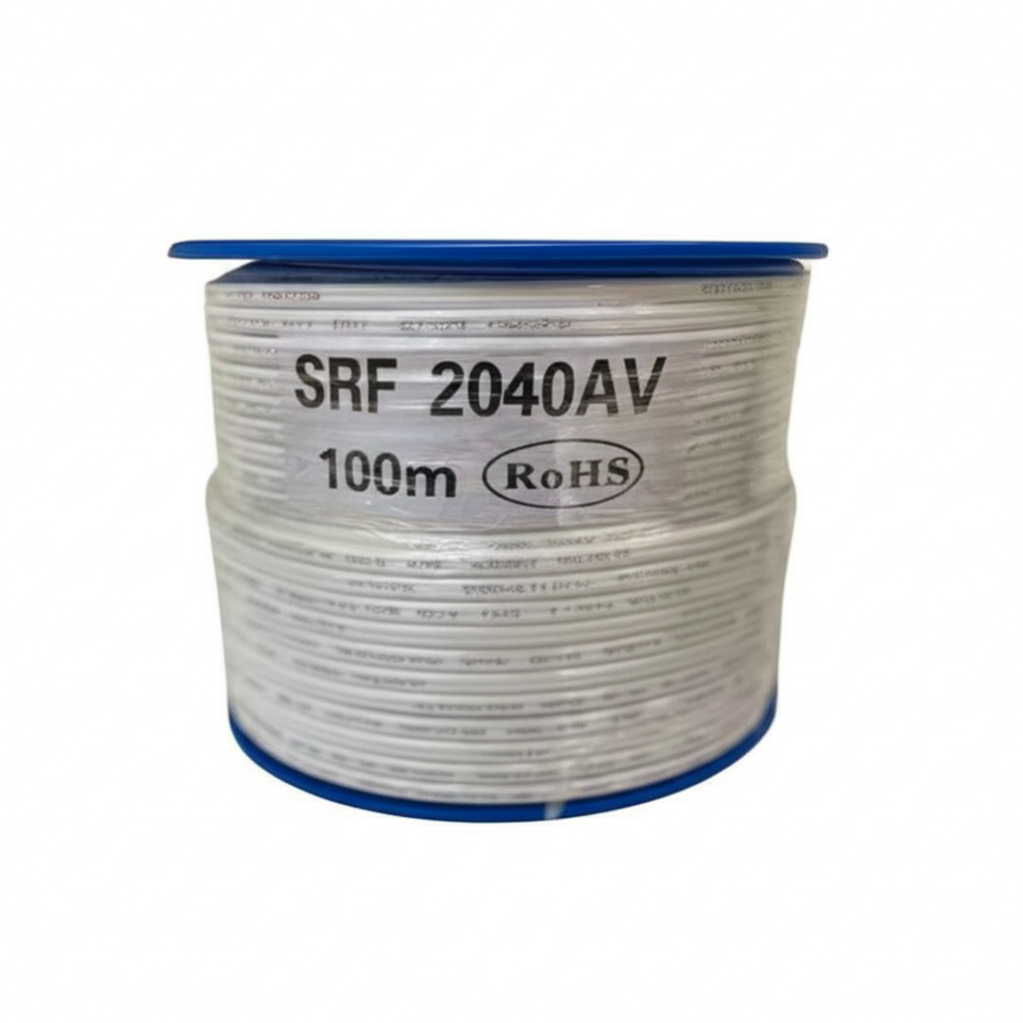

A premium two-core electrical cable, the ELECTRA 4MM2 TWIN ACTIVE RED AND WHITE CABLE SRF2040AV is made for a variety of residential, business, and industrial electrical applications. It has two red and white, plain annealed copper conductors that are independently insulated with V-90 PVC to make it simple to identify active circuits. After that, a sturdy, easy-peel 3V-90 Easytear White PVC sheath is placed over the entire cable. As long as it is not mechanically damaged, this construction makes it appropriate for ordinary wire applications, whether they are unenclosed, in conduits, or even buried directly or in underground ducts. It guarantees dependability and safety because it is manufactured in accordance with Australian and New Zealand Standards (AS/NZS 1125, AS/NZS 5000.2).
Key Features:
For superior conductivity, use plain annealed copper (AS/NZS 1125) as the conductor material.
There are two active cores in total.
Insulation: Each core has V-90 PVC insulation, which is heat-resistant and long-lasting.
Red and white insulation colors make it easy to identify active conductors.
Sheath: Easytear White PVC 3V-90 sheath, which makes stripping during installation simple.
0.6/1 kV is the voltage rating, making it appropriate for common low voltage electrical systems.
Temperature Rating: Up to 90°C is the typical operating temperature.
Compliance: Complete adherence to New Zealand and Australian standards, particularly AS/NZS 5000.2.
Versatility of Application: Suitable for conduits, direct burial where shielded from mechanical damage, and ordinary wire, including unenclosed installations.
Length: Commonly offered in 100-meter rolls.
| Specification |
Details |
| Model Number |
SRF2040AV |
| Conductor Size |
4 mm² |
| Stranding |
2x7/0.85 mm |
| Insulation Material |
PVC V90 |
| Sheath Material |
3V-90 Easytear White PVC |
| Overall Dimensions |
10.7 mm (width) x 6.6 mm (height) |
| Voltage Rating |
0.6/1 kV |
| Conductor Resistance |
DC: 4.61 Ω/km; AC: 5.61 Ω/km |
| Current Rating |
Around 32 Amp |
| Core Colors |
Red and White |
| Standard Pack Size |
100 meters |
| Standards |
AS/NZS 1125, AS/NZS 5000.2. |
