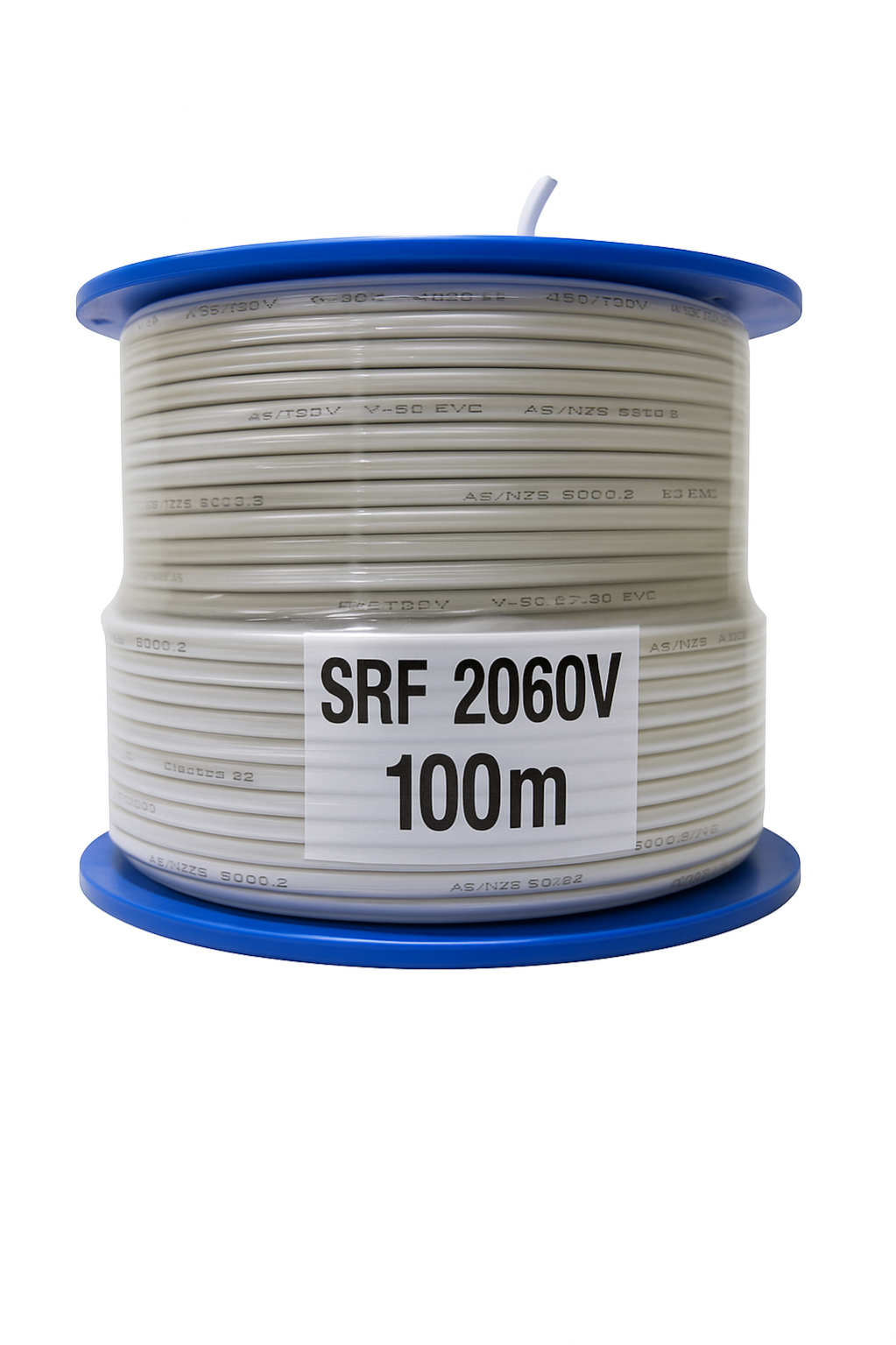

A sturdy two-core electrical cable, the ELECTRA 6MM2 TWIN ACTIVE RED AND WHITE CABLE SRF2060AV is perfect for a variety of power and lighting circuits in homes, businesses, and light industries. For simple phase and neutral identification, it includes two separate cores of plain annealed copper conductors, each insulated with sturdy V-90 PVC and painted a clear red and white. A sturdy, easily-tearable 3V-90 White PVC sheath is then placed over the entire cable. This flat profile cable is made for general wiring and can be installed in conduits, underground ducts, or outdoors where it won't be damaged by mechanical forces. It guarantees high levels of safety, dependability, and long-term performance because it is manufactured in accordance with strict Australian and New Zealand Standards (AS/NZS 1125, AS/NZS 3808, and AS/NZS 5000.2).
Important attributes:
For superior conductivity and flexibility, use plain annealed copper (AS/NZS 1125) as the conductor material.
There are two active cores in total.
Each core is insulated with V-90 PVC, which offers good durability and heat resistance up to 90°C, the typical operating temperature.
Red and white insulation colors allow active and neutral conductors to be easily and consistently identified.
Sheath: Easytear White PVC 3V-90 sheath, made to strip effectively during installation.
Suitable for standard low voltage electrical systems, the voltage rating is 450/750 Volt (V) or 0.45/0.75 kV.
Complete adherence to all applicable Australian and New Zealand standards, including AS/NZS 5000.2 for electrical wires, is demonstrated by this compliance.
Versatility of Application: Perfect for general wiring in commercial, industrial, and residential environments. Ideal for installations that are not enclosed, in conduits, or buried direct/in ducts that are shielded from mechanical harm.
Flat thermoplastic sheathed (TPS) cable is the type of cable.
| Specification |
Details |
| Model Number |
SRF2060AV |
| Conductor Size |
6 mm² |
| Stranding |
2x7/1.04 mm |
| Insulation Material |
PVC V90 |
| Insulation Thickness |
Approximately 0.8 mm |
| Sheath Thickness |
Approximately 1.1 mm |
| Sheath Material |
3V-90 PVC |
| Overall Dimensions |
11.8 mm (width) x 7.2 mm (height) |
| Bend Radius |
50 mm |
| Conductor Resistance |
DC: 3.08 Ω/km; AC: 3.75 Ω/km |
| Voltage Rating |
450/750 V |
| Core Colors |
Red and White |
| Standard Pack Size |
100 meters |
| Standards |
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.2 |
