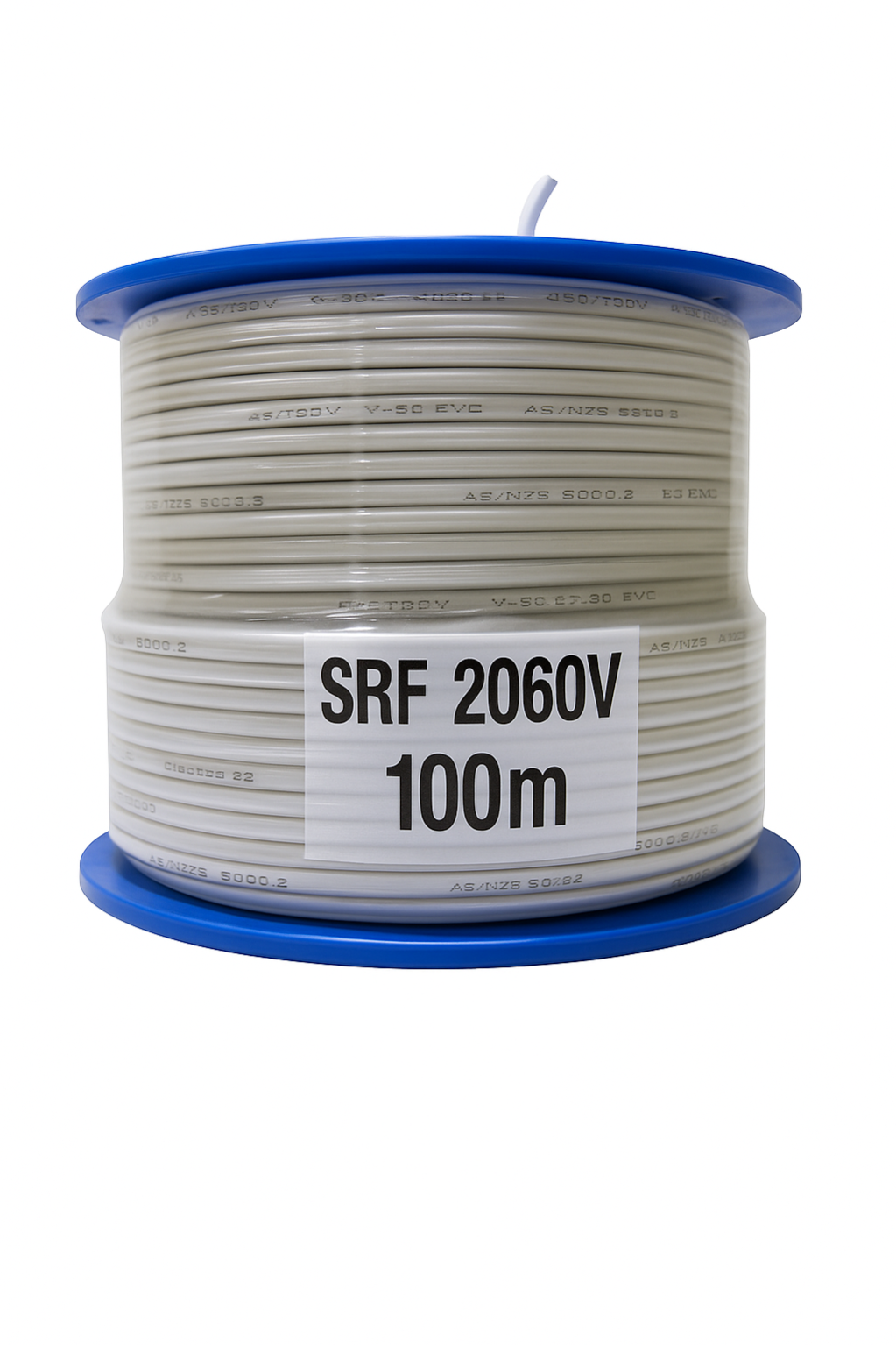

A sturdy two-core electrical cable designed for a variety of home, business, and light industrial power and lighting applications is the ELECTRA 6MM2 TWIN ACTIVE RED AND BLACK CABLE SRF2060AV. It is made up of two separate cores of simple annealed copper conductors, each of which is insulated in a different shade of black and red using sturdy V-90 PVC. For active circuits (such as phase and neutral in some areas, positive and negative in DC systems, or two distinct phases) to be easily identified, this color labeling is essential. After that, a sturdy, easily removable 3V-90 White PVC sheath is placed over the entire cable assembly. As long as it is sufficiently shielded from mechanical harm, its flat profile makes it suitable for a variety of general wire applications, including unenclosed, conduit, and underground duct installations. This cable is made in strict compliance with Australian and New Zealand Standards (AS/NZS 1125, AS/NZS 3808, and AS/NZS 5000.2), guaranteeing exceptional safety, dependability, and long-term performance.
Important attributes:
Conductor Material: AS/NZS 1125-compliant plain annealed copper for superior electrical flexibility and conductivity.
There are two active cores in total.
Each core has V-90 PVC insulation, which is suited for continuous operation up to 90°C and offers good durability, abrasion resistance, and heat resistance.
In order to clearly and consistently identify different wire configurations (such as active/neutral, positive/negative, or two active lines), insulation comes in two colors: red and black.
Sheath: 3V-90 Easytear White PVC sheath, which saves time and effort during installation by making stripping simple.
With a voltage rating of 450/750 V, or 0.45/0.75 kV, it can be used in standard low voltage electrical systems.
Temperature Rating: Up to 90°C is the typical operating temperature.
Compliance: Complete adherence to pertinent Australian and New Zealand standards, such as AS/NZS 5000.2 for electrical cables, guarantees the safety and quality of the product.
Versatility of Application: Perfect for general lighting and power circuits in light industrial, commercial, and residential settings. When shielded from mechanical harm, it can be installed directly in ducts, conduits, or outdoors.
Flat thermoplastic sheathed (TPS) cable is the type of cable.
| Specification |
Details |
| Model Number |
SRF2060AV |
| Conductor Size |
6 mm² |
| Stranding |
2x7/1.04 mm |
| Insulation Material |
PVC V90 |
| Insulation Thickness |
Approximately 0.8 mm |
| Sheath Thickness |
Approximately 1.1 mm |
| Sheath Material |
3V-90 PVC |
| Overall Dimensions |
11.8 mm (width) x 7.2 mm (height) |
| Bend Radius |
50 mm |
| Conductor Resistance |
DC: 3.08 Ω/km; AC: 3.75 Ω/km |
| Voltage Rating |
450/750 V |
| Core Colors |
Red and Black |
| Standard Pack Size |
100 meters |
| Standards |
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.2 |
