An excellent unshielded twisted pair (U/UTP) network cable designed for long-distance, high-speed data transfer is the ELECTRA CAT6A 23AWG Blue Cable. It offers reliable performance in demanding network environments, such as enterprise networks, data centers, and structured cabling systems, and is made to support 10 Gigabit Ethernet (10GBASE-T) applications.
Up to 500 MHz, this 305-meter (1,000-foot) spool of solid copper cable guarantees steady frequency response, low attenuation, and less crosstalk. For easy and effective installations, it comes in a handy, tangle-free pull box.
Key Features:
Category 6A (CAT6A) high-performance cable.
23 AWG conductors of solid bare copper.
Up to 100 meters of 10G Ethernet support.
500 MHz is the maximum bandwidth.
Blue is the color of the jacket.
Outstanding achievement in NEXT, FEXT, and ACR.
PVC outer jacket that is flame-retardant.
In accordance with ISO/IEC 11801 Class EA and TIA/EIA 568-C.2.

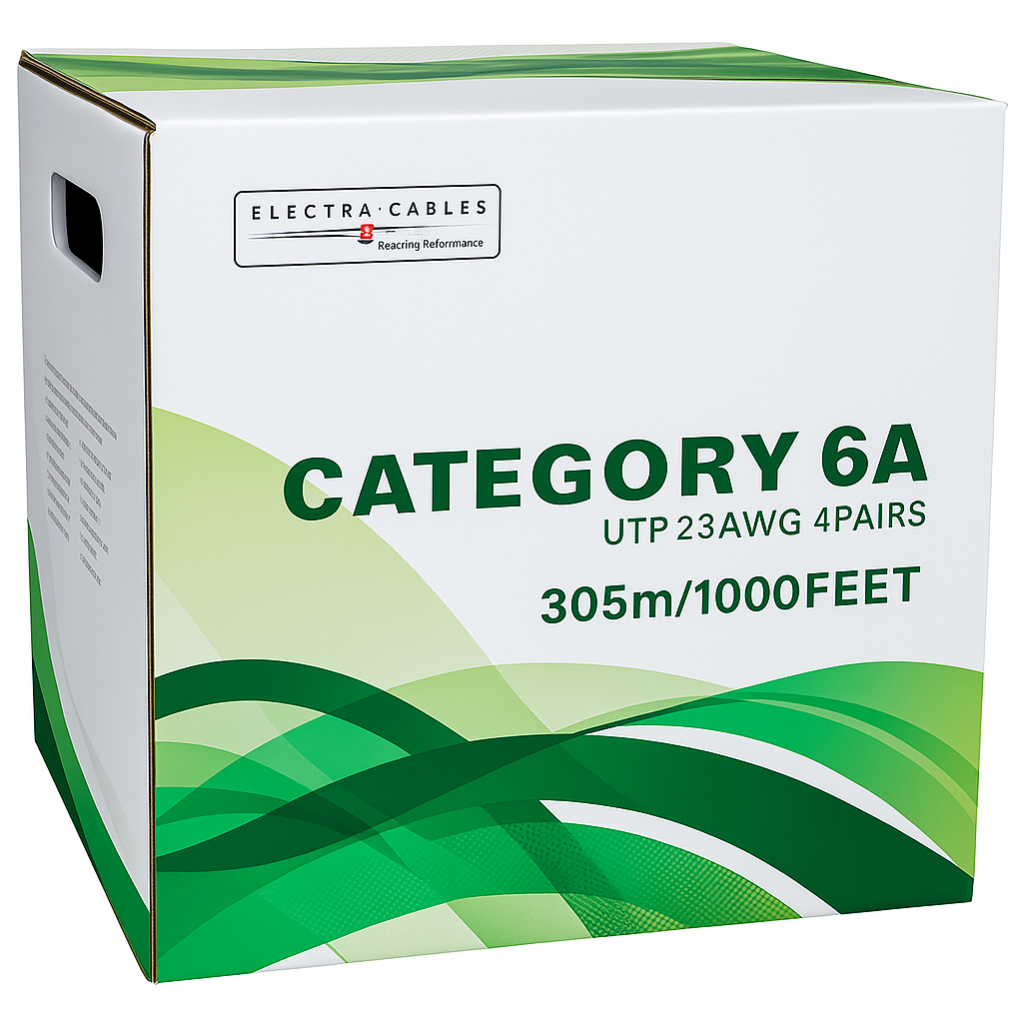

305m reel-in-box packing with easy pull.
| Specification |
Details |
| Cable Category |
CAT6A (Augmented Category 6) |
| Conductor Type |
Solid |
| Conductor Size |
23 AWG |
| Conductor Material |
Bare Copper |
| Cable Structure |
U/UTP – Unshielded Twisted Pair |
| Jacket Material |
PVC (CM/CMR Rated) |
| Jacket Color |
Blue |
| Insulation Material |
HDPE |
| Frequency Rating |
Up to 500 MHz |
| Max Data Rate |
10 Gbps |
| Impedance |
100 ohms ±15% |
| Outer Cable Diameter |
~7.3 mm ± 0.3 mm |
| Compliance |
RoHS, TIA/EIA, ISO/IEC, EN Standards |
| Operating Temp Range |
-20°C to +60°C |
| Packaging |
305 meters (1,000 ft) Pull Box |
