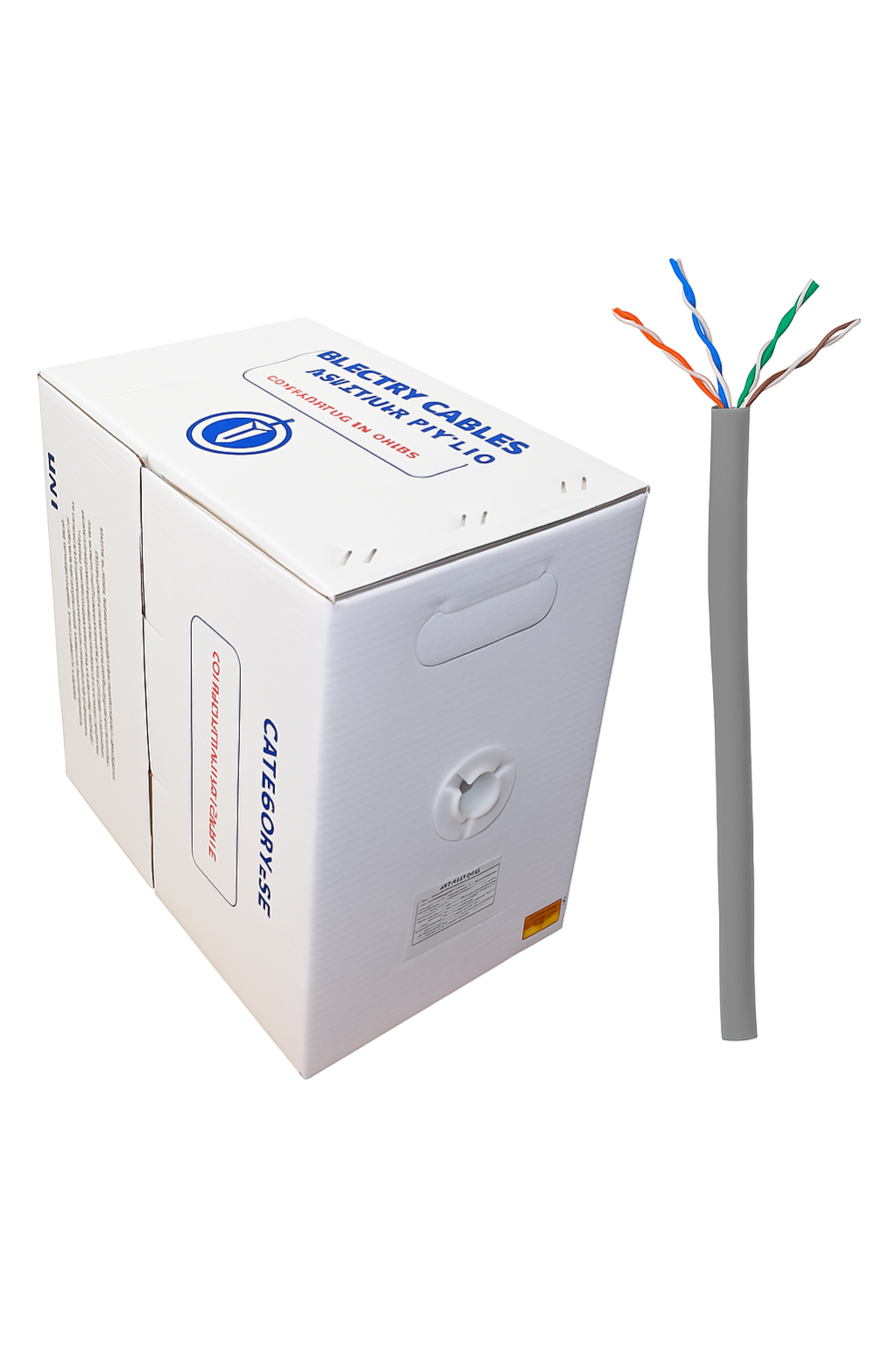

A high-performance unshielded twisted pair (UTP) data cable made for dependable and quick data transfer is the ELECTRA UTP CAT5E Cable. This cable supports Gigabit Ethernet and works with all CAT5E applications, including data, audio, and video, making it ideal for networking setups in homes, workplaces, and industrial settings.
Superior conductivity and signal integrity are guaranteed by the use of 24AWG solid copper conductors in its construction. For ease of installation, the cable comes in a 305-meter (1,000-foot) easy-pull package.
Key Features:
A pull box 305 meters (1,000 feet) long for convenient dispensing.
Solid bare copper conductors 24AWG.
Unshielded Twisted Pair, or UTP, reduces interference.
complies with ISO/IEC 11801 and TIA/EIA-568-C.2 standards.
Gigabit Ethernet (1000BASE-T) compatibility.
PVC exterior covering for flexibility and durability.
Perfect for telephone, CCTV, and networking installations.
Color: usually either blue or grey, though it can vary.
| Parameter |
Details |
| Cable Type |
UTP CAT5E |
| Conductor Size |
24 AWG (American Wire Gauge) |
| Conductor Material |
Solid Bare Copper |
| Number of Pairs |
4 pairs (8 conductors) |
| Jacket Material |
PVC (Polyvinyl Chloride) |
| Outer Diameter |
~5.0 mm ± 0.2 mm |
| Insulation |
HDPE (High-Density Polyethylene) |
| Flame Rating |
CM or CMR Rated (depending on type) |
| Bandwidth |
Up to 100 MHz |
| Frequency Rating |
100 MHz (Standard CAT5E) |
| Operating Temperature |
-20°C to +60°C |
