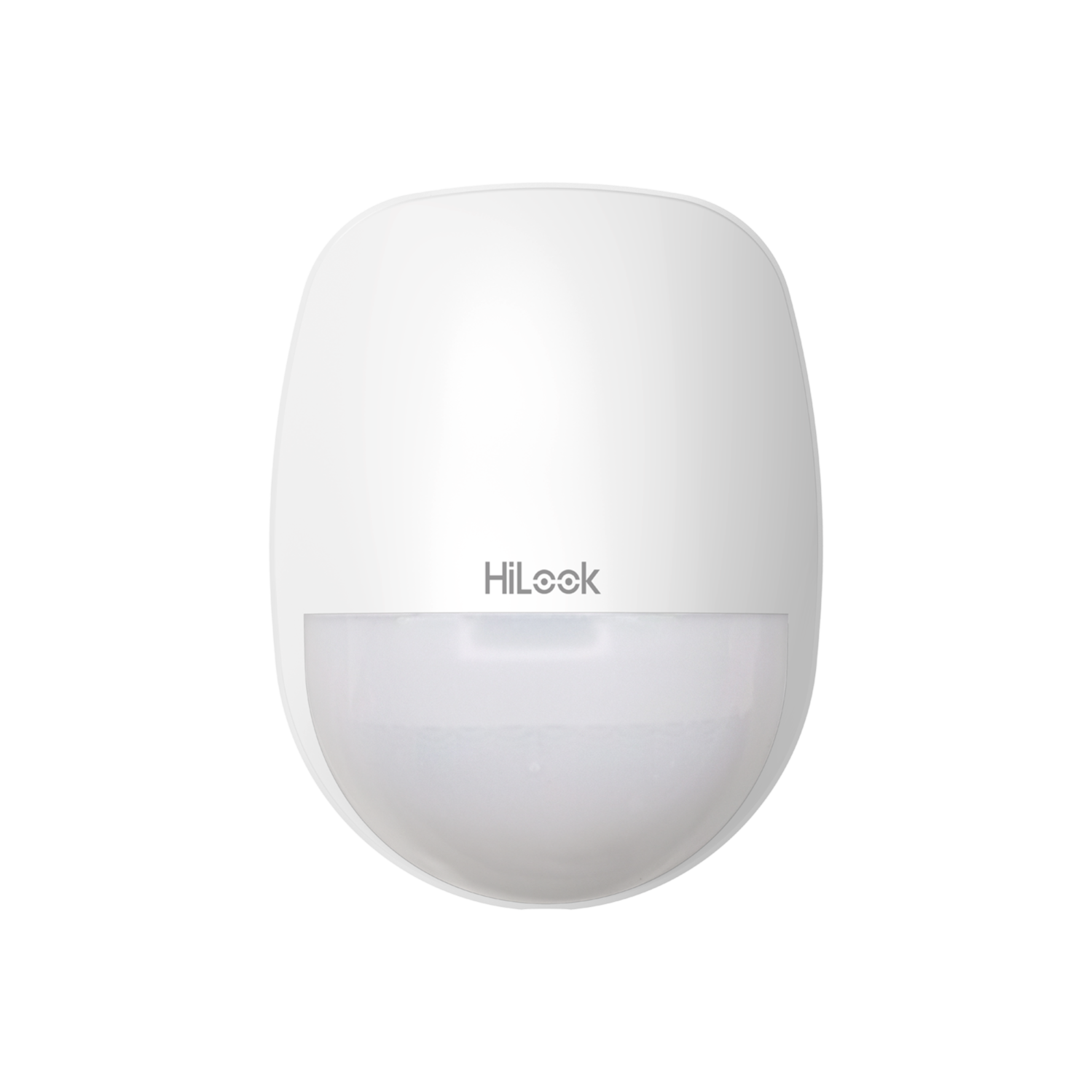

Wired internal 18m PIR detector PIR detector Detection range - Up to 18m volumetric detection coverage, the Ellipse is the ideal solution for any small to large indoor rooms and spaces. Detection range:18m 85.9°; NC;

> Modern design - Delivers a small and sleek detection solution; providing a modern yet unobtrusive finish to complement any room.
> Detection range - Up to 18m volumetric detection coverage, the Ellipse is the ideal solution for any small to large indoor rooms and spaces.
> Digital temperature compensation - Digitally adjusts its sensitivity to maintain its specified range when the background temperature is close to body temperature.
> Automatic sensitivity - self-adapts to changing environmental conditions to maintain stability and intruder catch performance.
> 3D optics - Improves the detection of moving targets; ensuring more precise signals can be received from the PIR by enabling the perfect focusing of the infra-red signal onto the pyro-electric sensor.
> Creep-zone protection - covers the blind spot area directly below it, where an intruder may have otherwise avoided detection.
> Selectable EOL resistors - incorporates selectable alarm resistor values of 1K, 2K2, 4K7, 5K6 and 8K2, as well as tamper resistance values of 1K, 2K2, 4K7 and 5K6; catering for most control panels on the market.
> Wall and ceiling mount options - can be fitted at a mounting height of 1.8m to 2.4m . There is also a ceiling mount option available if required.
> Anti-insect interference - Protects the detector from possible insect infestation, as well as shielding air movement in front of its pyro-electric sensor and protecting against adverse reflections from inside the detector housing.
> Wide voltage - 9 to 16 V wide voltage adaptation with polarity reverse connection protection
> IFT technology - automatically adjust the upper and lower alarm trip thresholds when exposed to electromagnetic or electrical interference and shift the thresholds before the detector goes into false alarm.
