Features

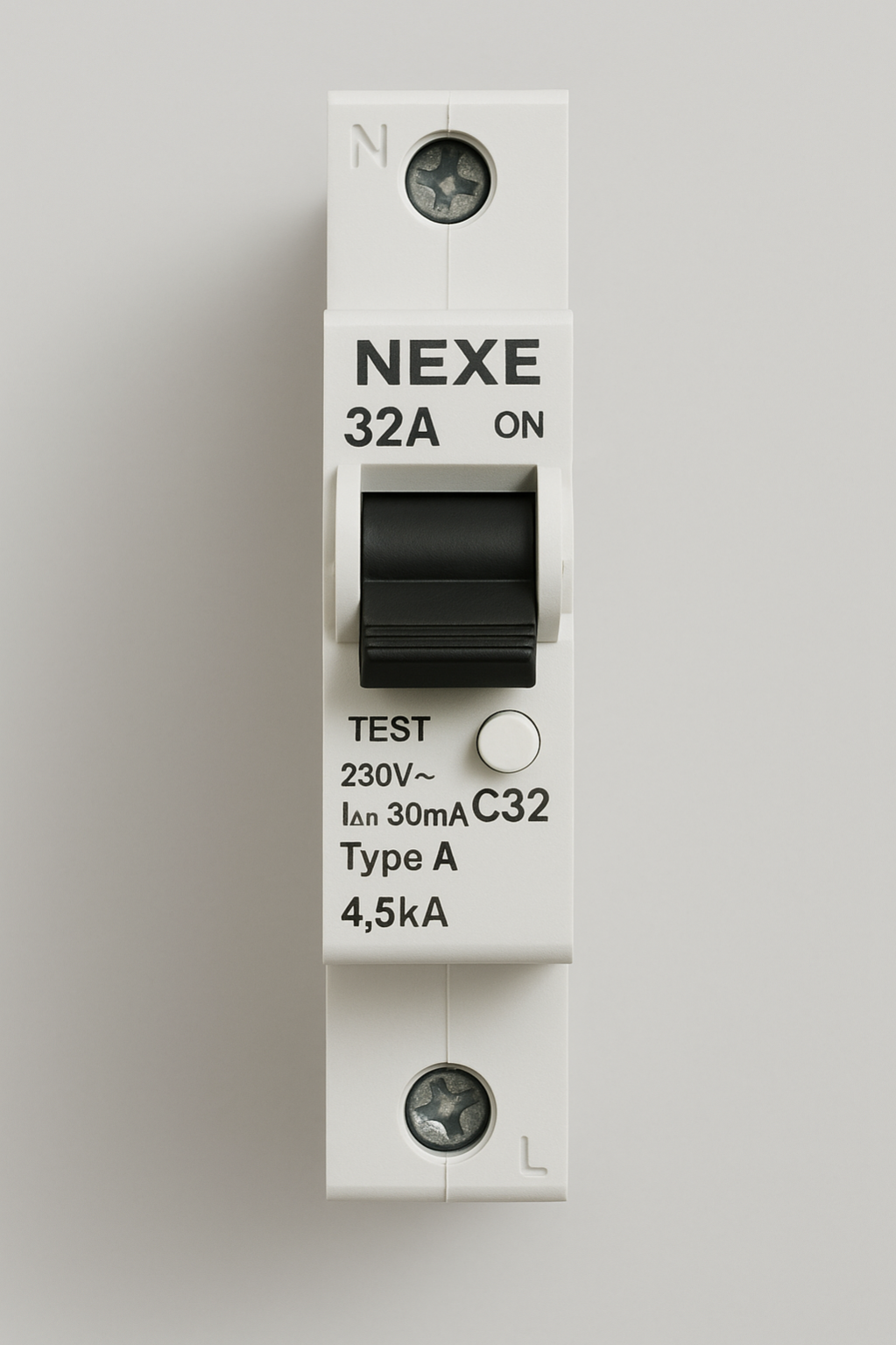

Rated Current: 32 A for reliable circuit protection.
Breaking Capacity: High short-circuit withstand capability of 4.5 kA.
Type A Protection: Detects both AC and pulsating DC residual currents, improving safety for electronic device circuits.
Combined Protection: Offers both earth leakage (residual current) protection and overcurrent (overload and short circuit) protection in one device.
Compact Design: Single module width (17.5 mm) for space-saving installation in distribution boards.
C Curve Tripping: Provides a good balance between nuisance tripping and fast disconnection during faults.
Rated Residual Operating Current: 30 mA, suitable for personal protection against electric shock.
Easy Installation: Quick mounting on standard 35 mm DIN rails.
Durability: Designed for long service life with mechanical endurance of 20,000 operations and electrical endurance of 4,000 cycles.
Wide Operating Temperature Range: Functional from -25°C up to +70°C.
Safety Compliance: Meets international standards for circuit breakers and residual current devices.
| Specification |
Details |
| Rated Current (In) |
32 A |
| Number of Poles |
1P + N (Single Pole + Neutral) |
| Rated Voltage (Ue) |
230 V AC |
| Rated Short-Circuit Breaking Capacity (Icn) |
4.5 kA |
| Type |
Type A (AC and Pulsating DC leakage) |
| Tripping Curve |
C (Magnetic trip between 5 and 10 times the rated current) |
| Rated Residual Operating Current (I△n) |
30 mA |
| Rated Impulse Withstand Voltage (Uimp) |
4 kV |
| Rated Insulation Voltage (Ui) |
500 V |
| Frequency |
50/60 Hz |
| Mounting |
DIN Rail (35 mm) |
| Protection Degree |
IP20 |
| Operating Temperature Range |
-25°C to +70°C |
| Mechanical Endurance |
20,000 operations |
