Voltage Rating: Designed for 1500V DC, suitable for high-voltage solar installations.
Conductor Material: Typically made from tinned copper for enhanced corrosion resistance.
Insulation & Sheath: Electron-beam cross-linked XLPO (XLPE), offering high thermal stability and resistance to UV radiation.
Temperature Range: Operates effectively between -40°C and +120°C, ensuring reliability in various environmental conditions.
Compliance: Meets TÜV EN50618 and IEC 62930 standards, ensuring safety and performance in PV applications.
Colors Available: Typically yellow-green for earth cables, adhering to international color coding standards.

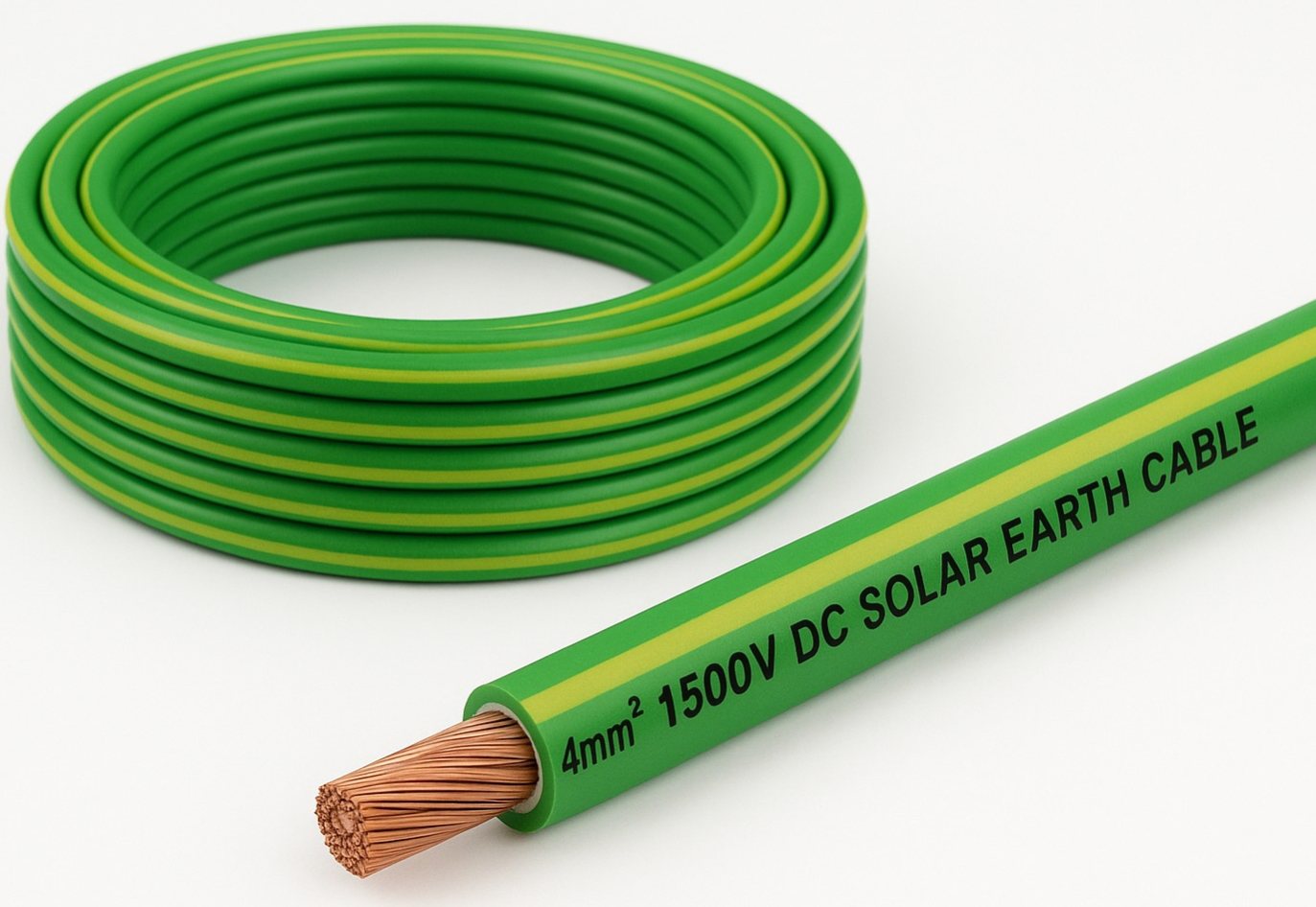

This cable is rated for 1500V DC, making it suitable for high-voltage solar installations, and complies with international standards such as TÜV EN50618 and IEC 62930.
The 4mm² cross-sectional area ensures that it can handle currents up to approximately 50A, with an operational temperature range from -40°C to +120°C.
The cable is often color-coded in yellow-green, which is the international standard for earthing and grounding wires, ensuring safety and ease of identification.
It is also designed to be flame retardant, with the insulation material meeting standards like IEC 60332-1 for fire resistance and IEC 61034 for low smoke emissions.
This cable is typically used in solar panel systems, inverters, and solar charge controllers for grounding purposes to ensure safety in case of faults and to reduce the risk of electrical shocks.
| Specification |
Details |
| Voltage Rating |
1500V DC |
| Conductor Material |
Tinned Copper |
| Conductor Construction |
56/0.3 mm Strands |
| Cross-Sectional Area |
4mm² |
| Insulation Material |
Electron-beam Cross-linked XLPO (XLPE) |
| Insulation Thickness |
Approx. 0.7 mm |
| Outer Diameter |
Approx. 6.1 mm |
| Weight |
Approx. 4.75 kg per 100 meters |
| Current Carrying Capacity |
Approx. 50A |
