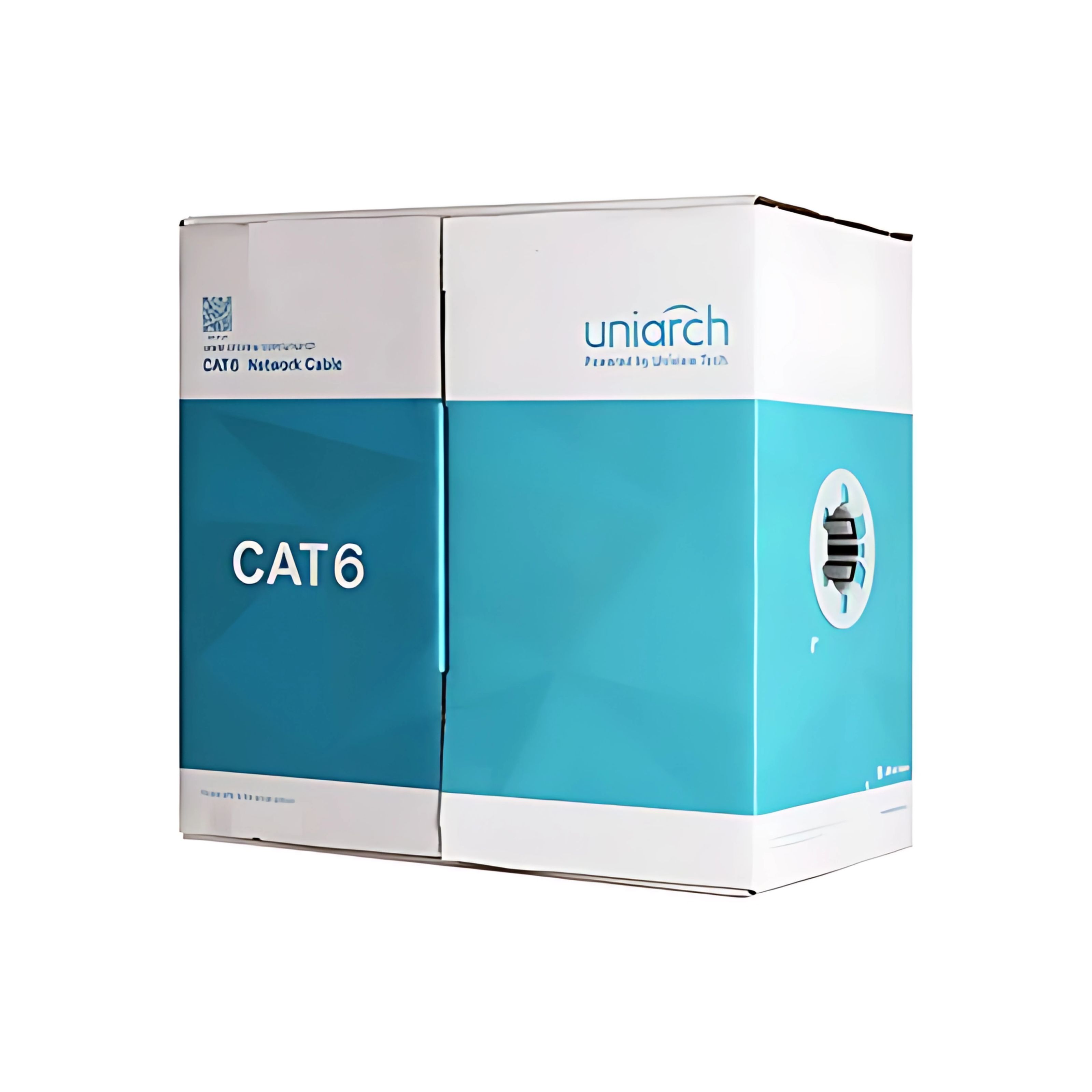

Because of its high-speed data transmission design, the UNIARCH UTP CAT6 Network Security Cable may be used with a variety of systems, including VoIP, CCTV, and gigabit Ethernet. It guarantees dependable operation and signal integrity over long distances thanks to its robust copper conductors and high-density polyethylene insulation.
Key Features:
Unshielded Twisted Pair (UTP) CAT6 cable.
Material of Conductor: Solid Bare Copper.
Size of Conductor: 24 AWG.
Four twisted pairs of eight conductors.
HDPE, or high-density polyethylene, is used as insulation.
Material of Jacket: PVC
Color of Jacket: Orange
Length: 1000 feet, or 305 meters
Conformance to TIA/EIA-568-C.2 and ISO/IEC 11801 standards
Temperature range for operation: -20°C to +60°C
Parameter |
Details |
Conductor Diameter |
0.45 ± 0.005 mm |
Insulation Diameter |
1.02 ± 0.06 mm |
Outer Jacket Diameter |
6.5 ± 0.3 mm |
DC Resistance |
≤ 95 Ω/km |
Impedance |
100 ± 15 Ω |
Bandwidth |
Up to 250 MHz |
Data Rate Support |
Up to 1 Gbps (Gigabit Ethernet) |
Flame Retardant Rating |
IEC 60332-1-2 compliant |
Packaging |
305 meters per pull box |
Net Weight |
Approximately 15 kg |
