20A Current Rating
Suitable for isolating three-phase electrical circuits with a 20A current rating.
High Voltage Rating
Rated for 500V AC, making it ideal for industrial applications with higher voltage requirements.
Weatherproof Design
IP66-rated, providing complete protection against dust and strong water jets, perfect for harsh outdoor environments.
Durable Construction
Made from UV-resistant polycarbonate, ensuring long-lasting durability and resistance to outdoor elements.

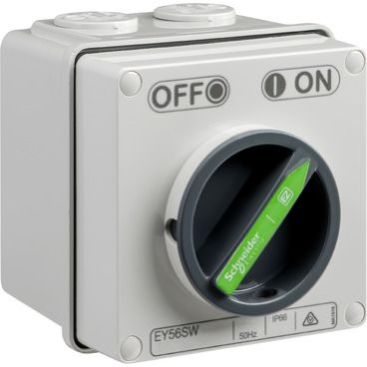

Rotary Switch Operation
Simple and reliable rotary knob for easy ON/OFF control with positive feedback.
Lockable for Safety
Can be padlocked, offering safety during maintenance or isolation procedures.
Wide Temperature Range
Operates effectively in ambient temperatures ranging from -25°C to +75°C, suitable for diverse environments.
Easy Installation
Surface mount design with screw terminal connections for a straightforward installation process.
Compliant with Standards
Conforms to AS/NZS 3133 and AS 60529, ensuring reliable performance and safety.
Versatile Application
Ideal for use in industrial, commercial, and outdoor installations requiring robust isolation switching.
APPLICATIONS:
-
-
Outdoor Installations: Ideal for environments exposed to dust and moisture.
-
Industrial Equipment: Used to isolate three-phase machinery and equipment.
-
Maintenance Lockout: Facilitates safe maintenance procedures through its lockable design.
-
Utility Installations: Applicable in utility infrastructure requiring reliable isolation switches.
Attribute |
Specification |
Brand |
Clipsal (by Schneider Electric) |
Series |
56 Series |
Model Number |
EY56SW320 |
Function |
Isolating switch |
Number of Poles |
3 |
Rated Current |
20A |
Rated Voltage |
500V AC, 50Hz |
Ingress Protection (IP) |
IP66 (dust-tight and protected against powerful water jets) |
Control Type |
Rotary knob |
Material |
Polycarbonate (PC) |
Mounting Type |
Surface mount |
Lockable |
Yes, supports padlocking |
Ambient Temperature Range |
-25°C to +75°C |
Compliance Standards |
AS/NZS 3133, AS 60529 |
