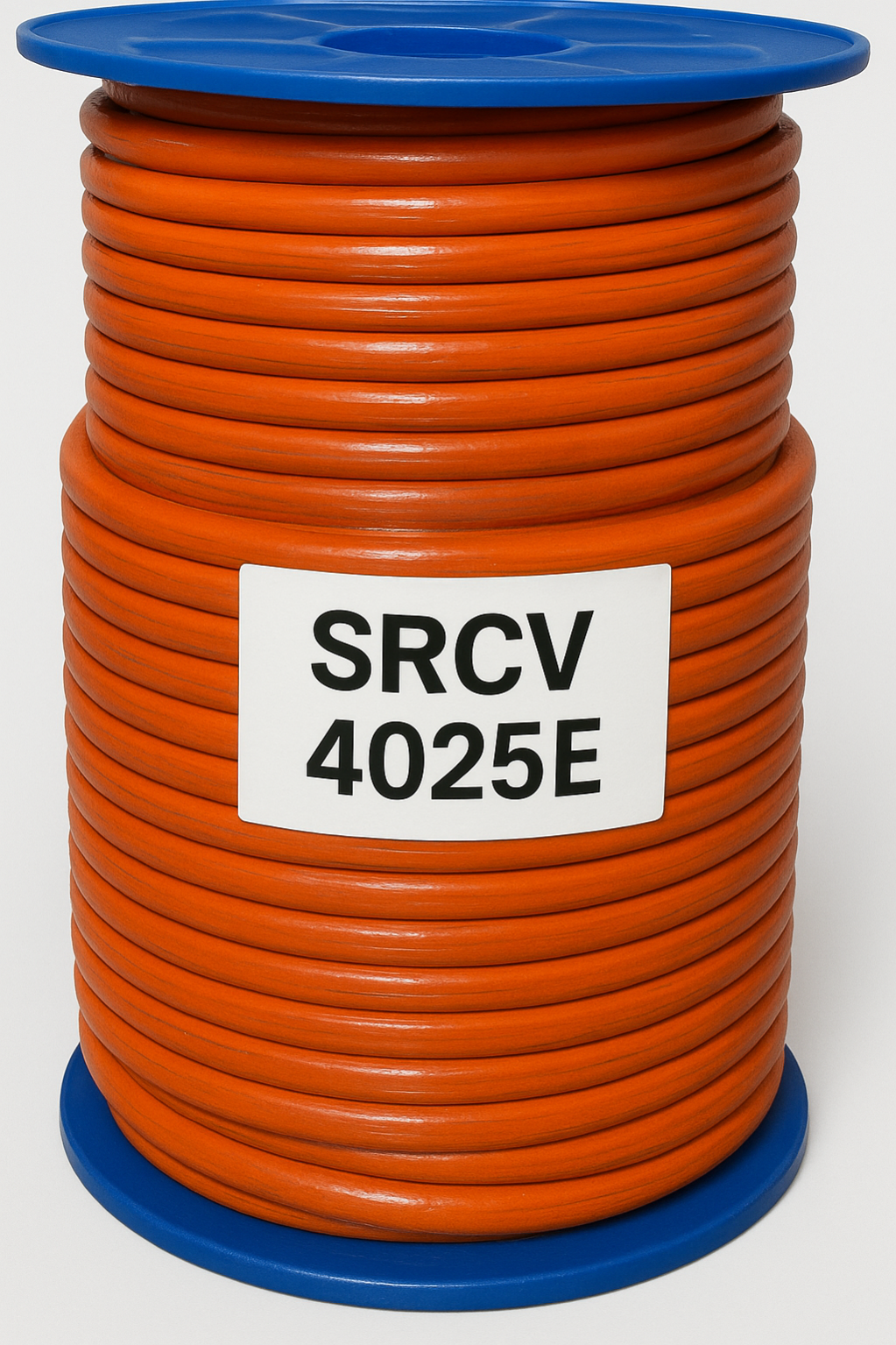

A sturdy and dependable unarmoured orange circular electrical cable, the ELECTRA SRCV4025E is made for a range of low voltage applications. It has an earth core and four active cores, each with a cross-sectional size of 2.5 mm². In residential, commercial, and industrial systems that need a higher current carrying capability than 1.5mm² cables, this heavy-duty cable is frequently used for mains, sub-mains, and sub-circuits. It is appropriate for direct burial or underground ducts where it is not subjected to high mechanical stress, as well as for enclosed or unenclosed installations in conduits due to its long-lasting PVC sheath and insulation. For projects of different sizes, the 100-meter roll is useful.
Important attributes:
Code of Product: SRCV4025E
Brand: Electra Cables (or provided by other reliable cable brands that satisfy requirements)
Each core's conductor size is 2.5 mm².
Configuration of the Core: Earth + 4 Core (4C+E)
Cable Length: Comes in a roll or drum of 100 meters.
High Visibility: Electrical power lines in some areas typically have a bright orange outer wrapping for simple identification.
Durability: 5V-90 PVC sheath and V90 PVC insulation offer longevity and high protection against environmental influences.
Versatile Application: Fits well with circuit wire, sub-mains, and mains power systems. Under some circumstances, it can be buried directly, put in conduit, or installed in the air.
Complying with applicable Australian and New Zealand standards (usually AS/NZS 5000.1, AS/NZS 1125, and AS/NZS 3808), the product is manufactured.
Usability: Flexible stranded annealed copper conductors make installation simpler.
| Specification |
Details |
| Model Number |
SRCV4025E |
| Conductor Size |
2.5 MM2 |
| Stranding |
4 x 7/0.67 mm for cores; 7/0.67 mm for earth |
| Insulation Material |
PVC V90 |
| Insulation Thickness |
Around 0.8mm to 0.9mm |
| Sheath Thickness |
Around 1.8mm to 1.9mm |
| Sheath Material |
PVC 5V-90 |
| Conductor Material |
Plain annealed copper |
| Bend Radius |
Approximately 40 mm |
| Voltage Rating |
450/750 V |
| Core Colors |
Red, White, Blue, Black, and Green/Yellow for earth |
| Standard Pack Size |
100 meters |
| Standards |
AS/NZS 5000.1 and AS/NZS 5000.2 |
