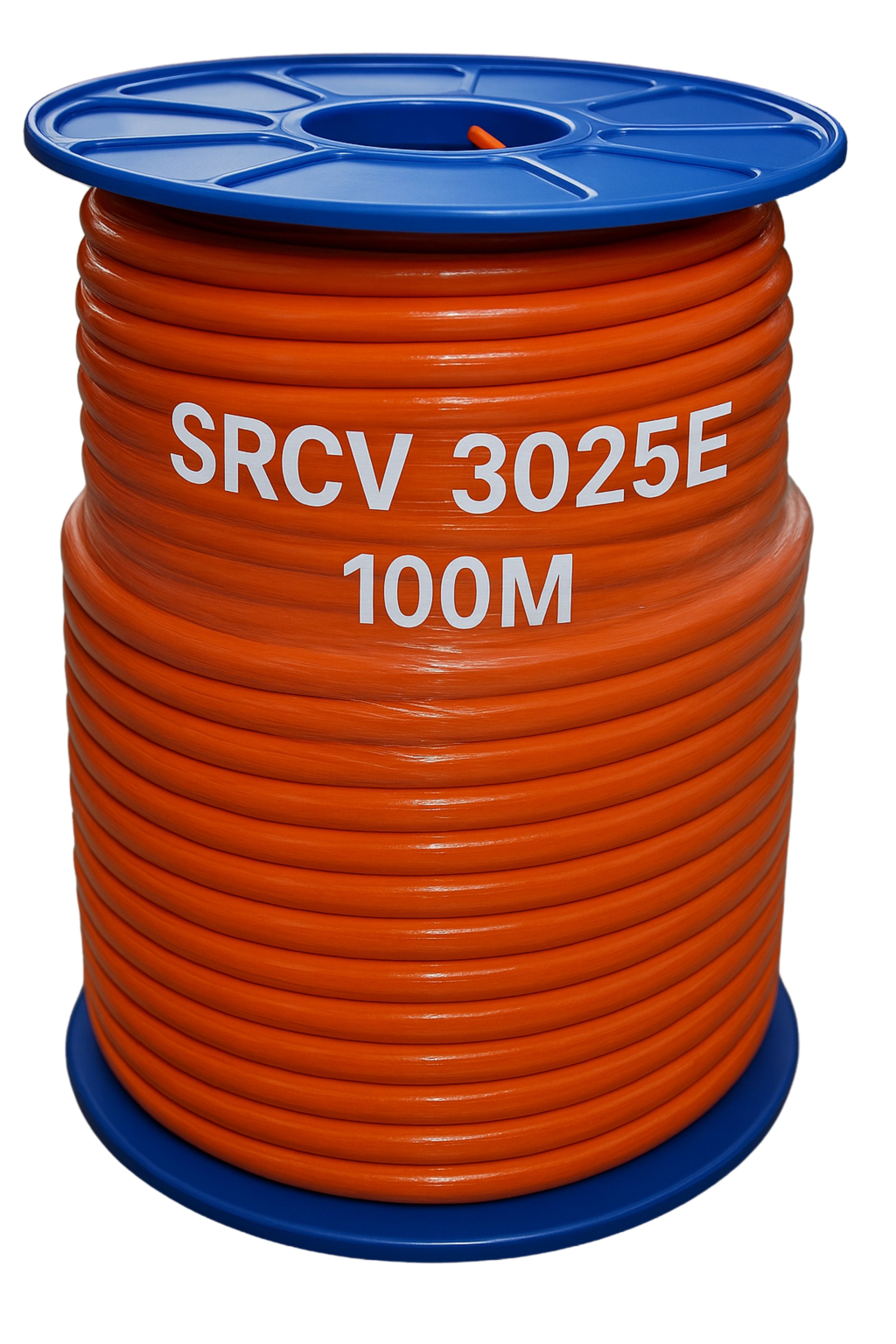

For power distribution and fixed wiring applications, the ELECTRA 2.5MM 3C+E 100M ORANGE CIRCULAR CABLE (SRCV3025E) is an electrical cable. It is made up of one earth conductor and three 2.5mm² copper conductors, or cores. The cable is protected and made easier to identify by its characteristic orange circular outer wrapping. It comes in a length of 100 meters. For uses like power sub-mains, this kind of cable is frequently utilized in commercial, industrial, and residential settings.
Important attributes:
Three Core + Earth (3C+E): Consists of one earth conductor for safety and three active conductors, usually red, white, and blue.
A conductor with a cross-sectional size of 2.5 mm² is appropriate for a range of electrical loads.
Orange Circular Sheath: Electrical wires are frequently easily identified by their orange color. The round shape offers a sturdy and controllable shape.
A standard 100-meter roll is provided, making it convenient for a variety of installation tasks.
Long-lasting sheath and insulation: Provides defense against environmental elements, moisture, and mechanical harm. Specific insulation and sheath characteristics (such as those pertaining to voltage rating or materials like XLPE for insulation and PVC for the sheath, however this needs to be verified by the manufacturer's datasheet) may be indicated by the "SRCV" designation.
Annealed copper conductors offer flexibility and superior conductivity.
Voltage Rating: Suitable for ordinary wire applications, usually rated at 450/750V.
| Specification |
Details |
| Conductor Material |
Plain annealed copper (AS/NZS 1125) |
| Conductor Size |
2.5 mm² |
| Stranding |
3 x 7/0.67 mm + 7/0.67 mm Earth |
| Insulation Material |
PVC V-90 |
| Insulation Thickness |
0.7 mm |
| Sheath Material |
PVC 5V-90 |
| Sheath Thickness |
1.3 mm |
| Overall Diameter |
11.1 mm |
| Approximate Mass |
19.7 kg per 100 m |
| Number of Cores |
3 Core + Earth |
| Core Colours |
Red, White, Blue, Green/Yellow |
| Standards Compliance |
AS/NZS 5000.2 |
| Warranty |
1 Year |
