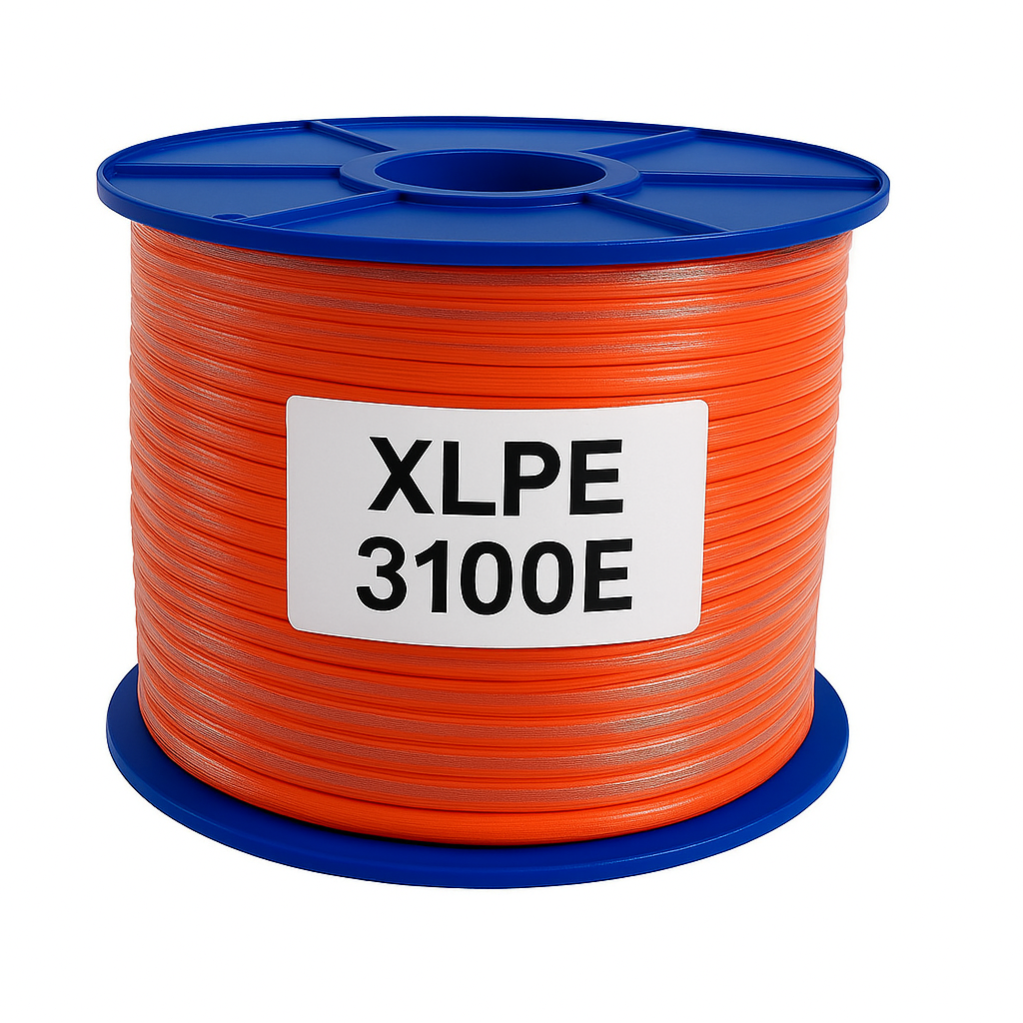

An excellent unarmoured circular cable for fixed wiring applications in commercial, industrial, and residential environments is the ELECTRA XLPE3100E. This cable, which has four active cores and an earth conductor, is wrapped in sturdy orange PVC and insulated with XLPE, giving it exceptional mechanical and thermal qualities. For a variety of installations, such as mains, sub-mains, and sub-circuits, its design guarantees dependability and safety.
Important attributes:
Stranded annealed copper is used as the conductor material.
Configuration: 1 earth conductor (4C+E) plus 4 active cores.
Cross-linked polyethylene (XLPE) is used as insulation.
Sheath: Orange PVC stabilised by UV light for durability and visibility.
Rating for Voltage: 0.6/1kV
Rating for Temperature: Up to 90°C
Identification of Cores: Green/Yellow for Earth Cores; Red, White, Blue, and Black for Active Cores
Compliance with Standards: AS/NZS 5000.1
Use: Fits mains, sub-mains, and sub-circuits; can be buried directly, enclosed in conduit, or installed in subterranean ducts where mechanical damage is unlikely.
| Parameter |
Details |
| SKU |
XLPE3100E |
| Conductor Size |
10 mm² |
| Earth Conductor Size |
4 mm² |
| Stranding |
7/1.35 mm (approximate) |
| Insulation Thickness |
0.7 mm |
| Sheath Thickness |
1.8 mm |
| Overall Diameter |
Approximately 18.1 mm |
| Core Colours |
Red, White, Blue, Black, Green/Yellow |
| Maximum Operating Temp |
90°C |
| Voltage Rating |
0.6/1kV |
| Standard Pack Size |
Per meter; 100m rolls available |
