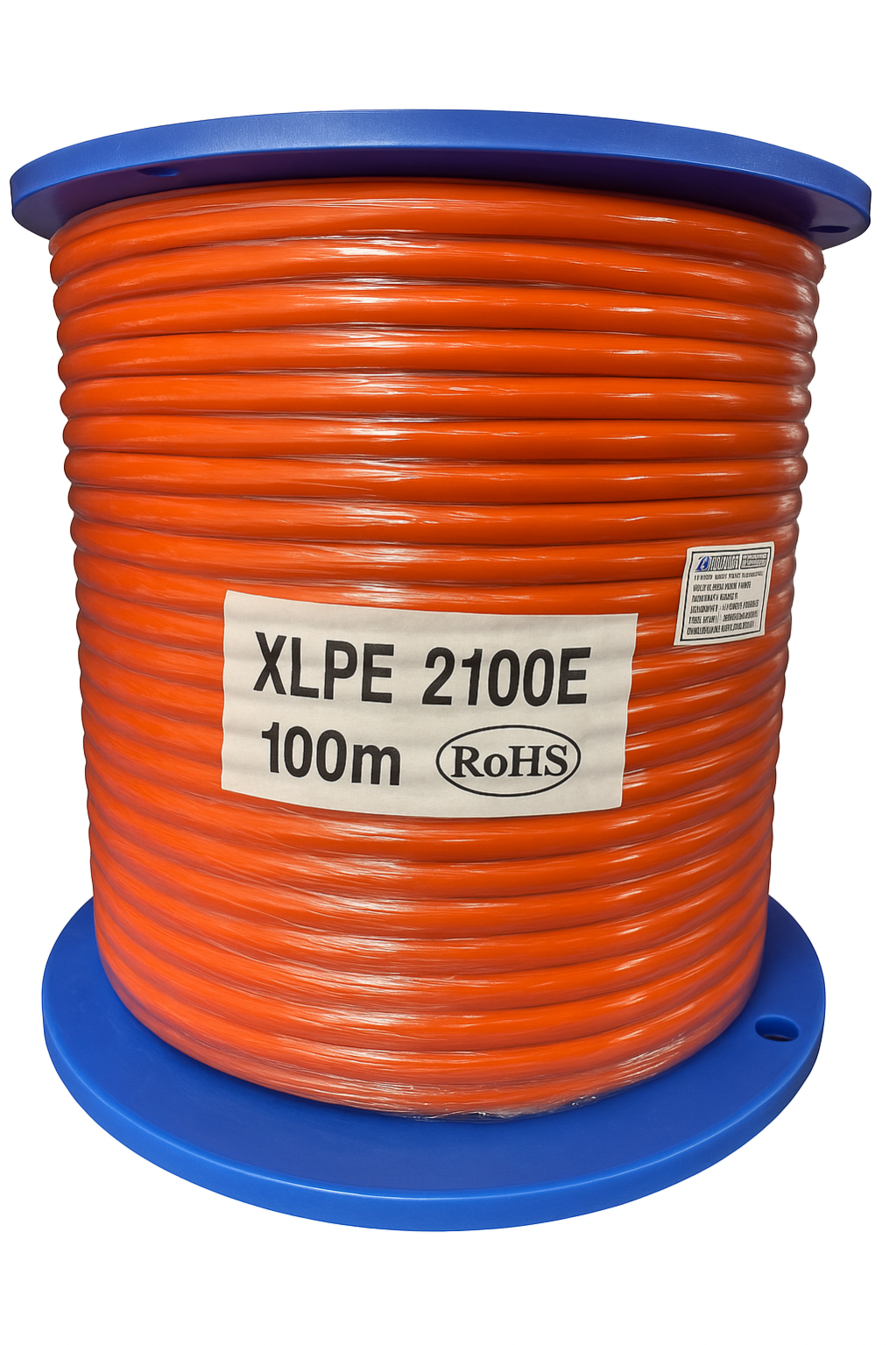

The meter conveniently sells the Electra XLPE2100E, a premium, unarmoured 10mm² circular power cable with two cores and earth, for customized ordering. This cable is intended for dependable power distribution in residential, commercial, and industrial mains, sub-mains, and sub-circuits. It offers outstanding protection, thermal performance, and a long service life thanks to its sturdy Orange 5V-90 PVC sheath and XLPE (cross-linked polyethylene) X-90 insulation. As long as it is not mechanically damaged, it can be installed in a variety of ways, such as direct burial, conduit encasement, unenclosed installations, or underground ducts. AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, and AS/NZS 4026 are among the strict Australian and New Zealand standards that the XLPE2100E is manufactured to meet, guaranteeing a safe, dependable, and effective electrical supply.
Important attributes:
With a voltage rating of 0.6/1 kV (450/750V), it can be used in a variety of general power applications.
High Temperature Performance: Up to 90°C can be operated continuously.
Sturdy Design: Featuring a sturdy 5V-90 PVC sheath for mechanical protection and XLPE X-90 insulation for exceptional thermal and electrical performance.
Flexible Installation: Suitable for a number of installation techniques, including conduit, unenclosed, direct burial, and underground ducts.
Clear Core Identification: Makes installation easier with its standard Red, Black, and Green/Yellow (Earth) cores for safe and simple phase identification.
Standards Compliant: High quality and safety are ensured by manufacturing in compliance with AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, and AS/NZS 4026 standards.
Optimal Conductivity: For greatest efficiency and current carrying capacity, use plain annealed copper conductors.
| Specification |
Details |
| SKU |
XLPE2100E |
| Cable Size |
10mm² |
| Core Count |
2 Core + Earth |
| Conductor Material |
Stranded Copper |
| Insulation Material |
XLPE X-90 |
| Sheath Material |
5V-90 PVC |
| Sheath Type |
Orange Circular PVC |
| Rated Voltage |
0.6/1kV |
| Max Current Capacity |
Approx. 50–60 Amps (in conduit) |
| Temperature Rating |
90°C (continuous) |
.png)
No Reviews For this Product
