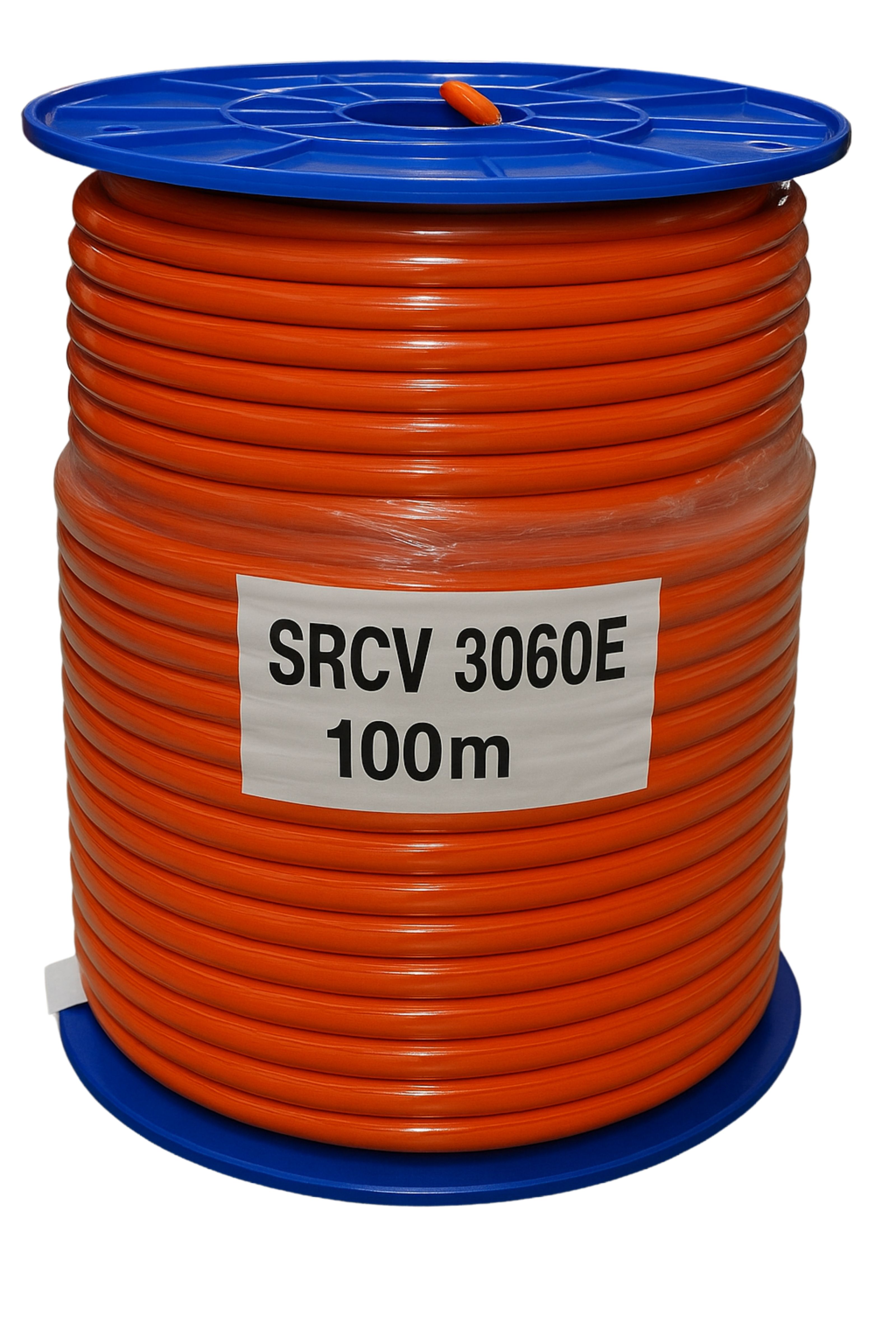

Being sold by the meter, the Electra SRCV3060E is a high-end, unarmoured 6mm² 3 Core + Earth circular power cable that is made for maximum ordering flexibility. This cable is designed to provide dependable power distribution in residential, commercial, and industrial establishments' mains, sub-mains, and sub-circuits. It offers outstanding protection and a long service life thanks to its sturdy Orange 5V-90 PVC sheath and long-lasting V-90 PVC insulation. As long as it is not susceptible to mechanical damage, it can be installed in a number of ways, such as direct burial, conduit encasement, unenclosed, or underground ducts. AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, and AS/NZS 5000.2 are the strict Australian and New Zealand standards that the SRCV3060E is manufactured to meet, guaranteeing a reliable, efficient, and safe electrical supply.
Important attributes:
450/750V (0.6/1 kV) is the voltage rating, making it appropriate for a variety of ordinary power applications.
High Temperature Performance: Up to 90°C can be operated continuously.
Sturdy Construction: Offers strong mechanical protection and insulation integrity with V-90 PVC insulation and a durable 5V-90 PVC sheath.
Flexible Installation: Suitable for a number of installation techniques, including conduit, unenclosed, direct burial, and underground ducts.
Standard Red, White, Blue, and Green/Yellow (Earth) cores are included for clear core identification, which makes installation simpler and ensures safe phase identification.
Standards Compliant: High quality and safety are ensured by manufacturing in accordance with AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, and AS/NZS 5000.2 standards.
Optimal Conductivity: For greatest efficiency and current carrying capacity, use plain annealed copper conductors.
| Parameter |
Details |
| SKU |
SRCV3060E |
| Conductor Size |
6 mm² |
| Earth Conductor Size |
2.5 mm² |
| Stranding |
3 x 7/1.04 mm + 7/0.67 mm (Earth) |
| Insulation Thickness |
0.8 mm |
| Insulation Material |
V-90 PVC |
| Sheath Thickness |
1.3 mm |
| Sheath Material |
5V-90 PVC |
| Overall Diameter |
Approximately 13.9 mm |
| Core Colours |
Red, White, Blue, Green/Yellow |
| Maximum Operating Temp |
90°C |
| Voltage Rating |
450/750V |
| Standard Pack Size |
100 meters |
| Standards |
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, AS/NZS 5000.2 |
