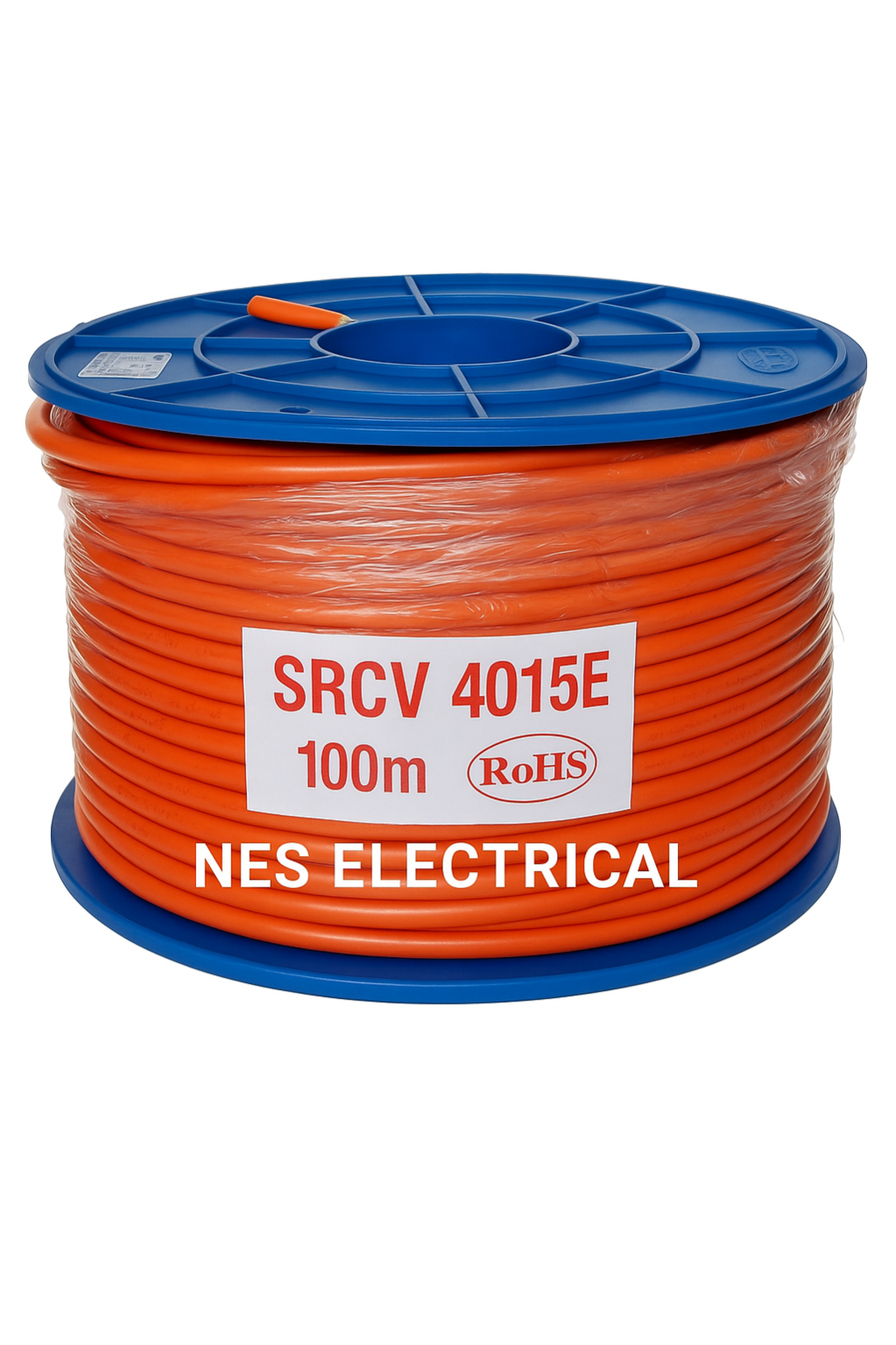

A sturdy and dependable unarmoured orange circular electrical cable, the ELECTRA SRCV4015E is made for a range of low voltage applications. It has an earth core and four active cores, each having a cross-sectional size of 1.5 mm². Mains, sub-mains, and sub-circuits in commercial, industrial, and residential installations frequently use this cable. It is appropriate for direct burial or underground ducts where it is not subjected to mechanical stress, as well as for enclosed or unenclosed installations in conduits due to its long-lasting PVC insulation and sheath. For a range of project sizes, the 100-meter roll is practical.
Important attributes:
Code of Product: SRCV4015E
Brand: Electra Cables (or supplied by several reputed cable brands satisfying standards)
Each core's conductor size is 1.5 mm².
Configuration of the Core: Earth + 4 Core (4C+E)
Cable Length: Comes in a roll or drum of 100 meters.
Visibility: Electrical power lines in some areas typically have a bright orange outer wrapping for easy identification.
Durability: 5V-90 PVC sheath and V90 PVC insulation offer longevity and high protection against environmental influences.
Versatile Application: Fits well with circuit wire, sub-mains, and mains power systems. Under some circumstances, it can be buried directly, put in conduit, or installed in the air.
Complying with applicable Australian and New Zealand standards (usually AS/NZS 5000.1, AS/NZS 1125, and AS/NZS 3808), the product is manufactured.
Usability: Flexible stranded annealed copper conductors make installation simpler.
| Specification |
Details |
| Model Number |
SRCV4015E |
| Conductor Size |
1.5 MM2 |
| Stranding |
2x7/0.5 mm for cores; 7/0.5 mm for earth |
| Insulation Material |
PVC V90 |
| Insulation Thickness |
Approximately 0.8 mm |
| Sheath Thickness |
Approximately 1.8 mm |
| Sheath Material |
5V-90 PVC |
| Conductor Material |
Plain annealed copper |
| Bend Radius |
Approximately 40 mm |
| Voltage Rating |
450/750 V |
| Core Colors |
Red, White, Blue, Black, and Green/Yellow for earth |
| Standard Pack Size |
100 meters |
| Standards |
AS/NZS 5000.1, AS/NZS 1125 |
