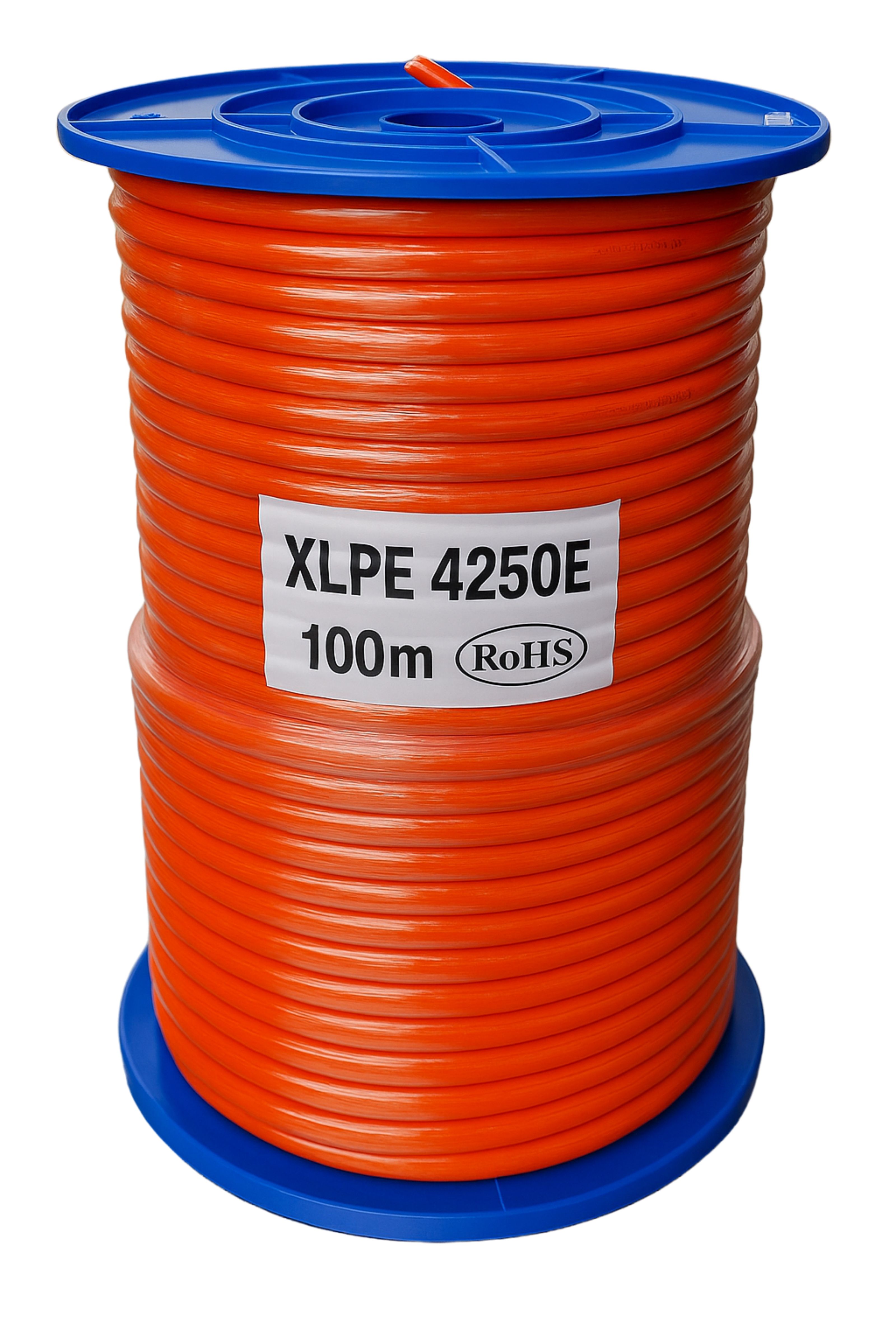

A premium, unarmoured 25mm² circular power cable with four cores and earth, the Electra XLPE4250E comes on a drum with a length of 100 meters. It is made for mains, sub-mains, and sub-circuits and has a sturdy Orange PVC sheath and XLPE (cross-linked polyethylene) insulation. As long as it is resistant to mechanical damage, this cable can be buried directly, enclosed in conduit, installed outdoors, or placed underground in ducts inside buildings and industrial facilities. It is also appropriate for glanding. It provides exceptional durability, adaptability, and dependable power distribution for both residential and commercial applications, all while being manufactured in accordance with strict Australian and New Zealand regulations.
Important characteristics:
include a high voltage rating of 0.6/1 kV for flexible power distribution.
Temperature Rating: Reliable up to 90°C operation.
Sturdy Construction: Contains a 5V-90 PVC sheath and XLPE X-90 insulation for increased durability and protection.
Flexible Installation: Suitable for conduit, direct burial, and unenclosed applications, among other installation techniques.
Red, White, Blue, Black, and Green/Yellow cores are included in Clear Core Identification for simple phase and earth identification.
Standards Compliant: Quality and safety are guaranteed by manufacturing in accordance with AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, and AS/NZS 4026 standards.
For best conductivity, use plain annealed copper as the conductor material.
| Specification |
Details |
| SKU |
XLPE4250E |
| Conductor Material |
Plain annealed copper (AS/NZS 1125) |
| Conductor Size |
25 mm² |
| Stranding |
19/1.35 mm |
| Earth Conductor Size |
25 mm² |
| Insulation Material |
X-90 XLPE |
| Insulation Thickness |
0.9 mm + 0.7 mm (Earth) |
| Sheath Material |
5V-90 PVC |
| Sheath Thickness |
1.8 mm |
| Overall Diameter |
26.9 mm |
| Bend Radius |
280 mm |
| Number of Cores |
4 Core + Earth |
| Core Colours |
Red, White, Blue, Black, Green/Yellow |
| Standards Compliance |
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, AS/NZS 4026 |
| Temperature Range |
-15°C to 90°C |
