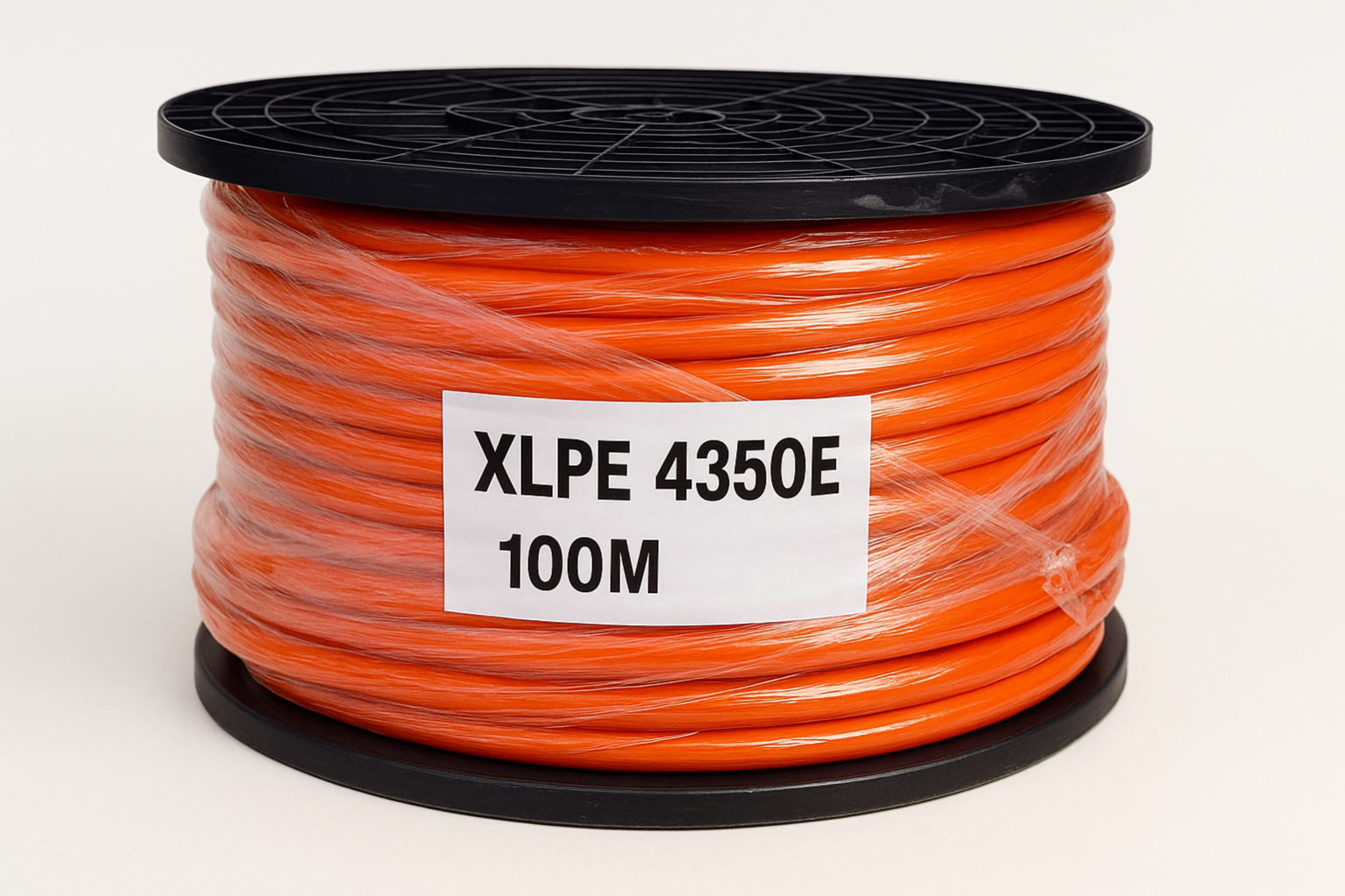

For optimum ordering freedom, the Electra XLPE4350E is a premium, unarmoured, 35mm² 4 Core + Earth circular power cable that is sold by the meter. It is intended for dependable power distribution in residential and commercial systems' mains, sub-mains, and sub-circuits. This cable provides exceptional protection and longevity thanks to its sturdy Orange 5V-90 PVC sheath and long-lasting XLPE (Cross-linked Polyethylene) X-90 insulation. As long as it is shielded from mechanical harm, it can be installed in a variety of ways, such as underground ducts, conduit, unenclosed, or directly buried. It ensures a safe and effective power solution because it is manufactured in accordance with stringent Australian and New Zealand requirements.
Important attributes:
With a high voltage rating of 0.6/1 kV, it can be used in a variety of power distribution applications.
High Temperature Performance: Up to 90°C can be operated continuously.
Sturdy & Long-Lasting: XLPE X-90 insulation and a durable 5V-90 PVC sheath provide excellent protection and a long lifespan.
Flexible Installation: Adaptable to different project needs, it can be used for conduit, direct burial, and unenclosed applications.
Clear Core Identification: Provides simple and secure phase identification with conventional Red, White, Blue, Black, and Green/Yellow (Earth) cores.
Standards Compliant: Quality and safety are guaranteed by manufacturing in compliance with AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, and AS/NZS 4026 standards.
Optimal Conductivity: For superior electrical transmission, use plain annealed copper conductors.
| Parameter |
Details |
| SKU |
XLPE4350E |
| Conductor Size |
35 mm² |
| Stranding |
19 strands × 1.53 mm |
| Earth Conductor |
10 mm² |
| Nominal Voltage |
0.6/1 kV |
| Insulation Material |
As per XLPE X‑90 |
| Insulation Thickness |
0.9 mm |
| Sheath Material |
PVC 5V‑90 |
| Sheath Thickness |
0.7 mm |
| Max Operating Temp |
90 °C |
| Number of Cores |
4 cores + Earth |
| Core Colours |
Red, White, Blue, Black, Green/Yellow |
| Standards Compliance |
AS/NZS 1125, 3808, 5000.1, 4026 |
| Typical OD |
~28–29.7 mm |
