This 16mm² Electra building wire is a tough, reliable cable made with high-quality tinned copper and wrapped in durable PVC V90 insulation. It's built to handle up to 1,000 volts, making it a great choice for electrical work where wires are hidden away or hard to reach—like inside switchboards or control panels. It’s especially suited for installations that require secure cable entry through glands.
Key Features:
Strong Conductor: Made from 7 strands of 1.7mm tinned copper, offering excellent conductivity and resistance to corrosion.
Durable Insulation: Protected by PVC V90, compliant with AS/NZS 3808, providing safety and long-lasting performance.
Handles High Voltage: Rated for up to 0.6/1kV, suitable for residential, commercial, or industrial wiring needs.
Built for Heat: Can withstand temperatures up to 90°C, so it's ready for warm environments.
Standards Approved: Meets Australian standards AS/NZS 1125 and AS/NZS 5000.1.
Color Options: Available in Black, Red, Blue, White, and Green/Yellow (Earth) to match any wiring setup.

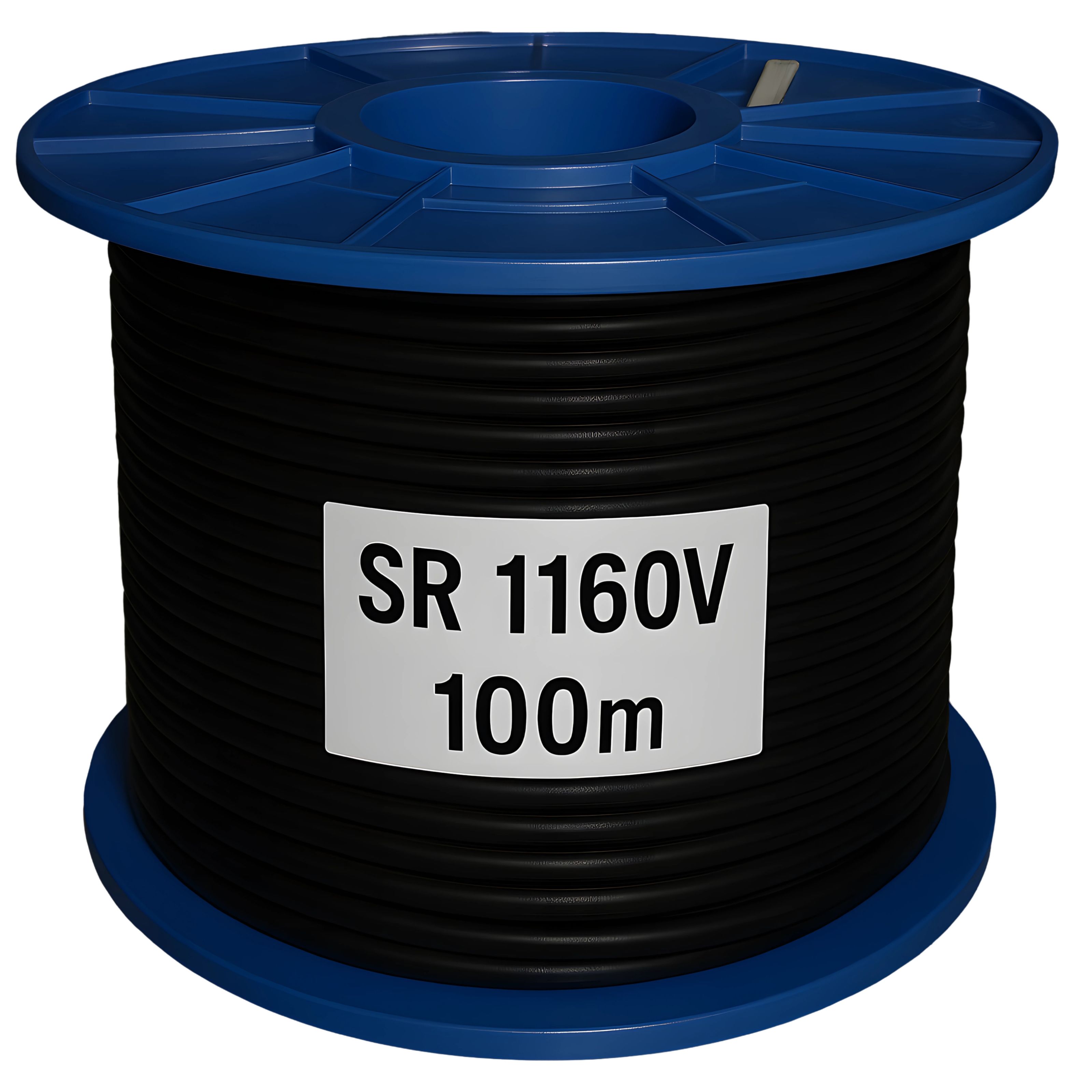

Convenient Length: Comes in a 100-meter roll, making it easy to cut and install as needed.
| Specification |
Details |
| SKU |
SR1160 |
| Cable Size |
16mm² |
| Stranding |
7/1.7mm |
| Overall Diameter |
Approximately 7.1mm |
| Minimum Bend Radius |
30mm |
| Insulation Material |
PVC V90 |
| Conductor Material |
Tinned Copper |
| Voltage Rating |
0.6/1 kV |
| Operating Temperature |
Up to 90°C |
| Standards Compliance |
AS/NZS 1125, AS/NZS 5000.1, AS/NZS 3808 |
