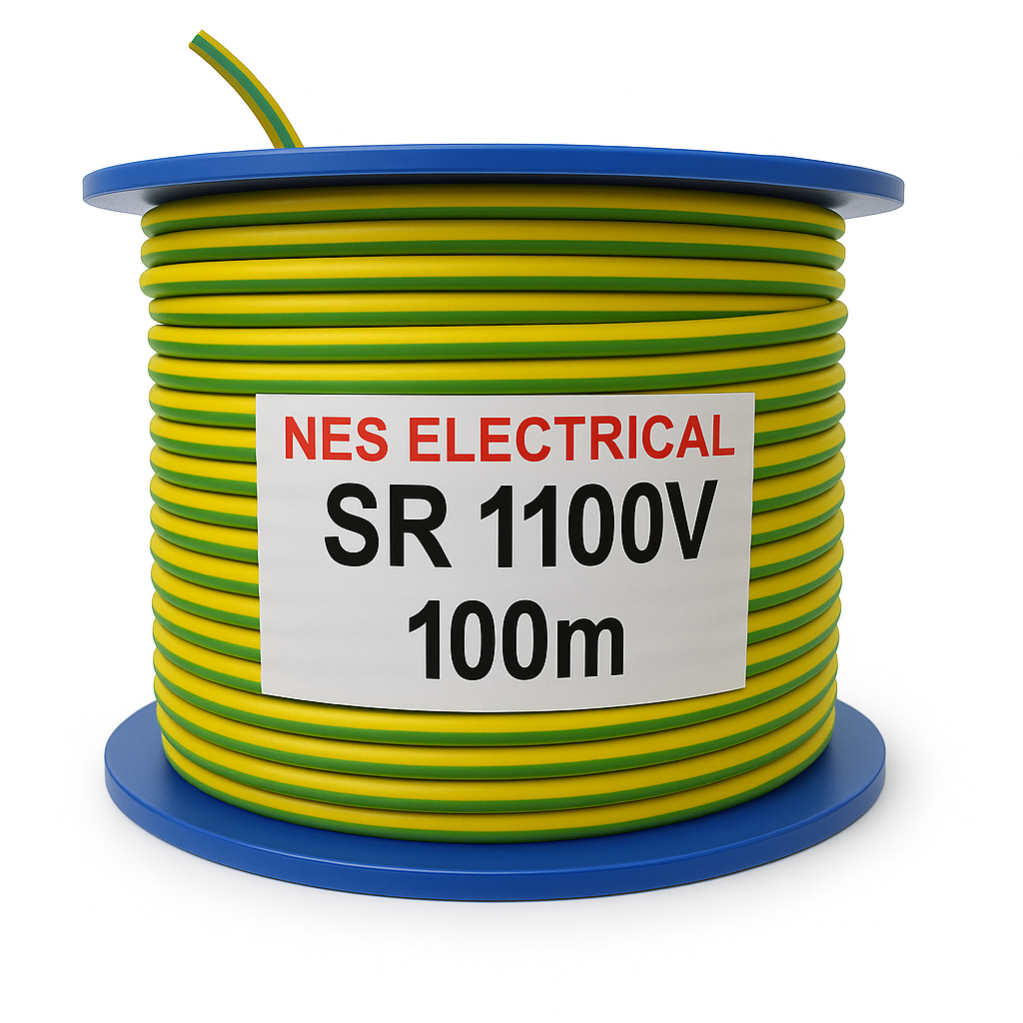

An excellent single-core electrical cable for a variety of building and electrical applications, the ELECTRA EARTH 10MM2 BUILDING WIRE SR1100 100M has a plain annealed copper conductor with durable V-90 PVC insulation, making it suitable for tough environments and general wiring. It is frequently used for separate earth conductors, switchboard and control panel wiring, and within other enclosed apparatus where the cable is not easily accessible without tools. It is manufactured to comply with relevant Australian and New Zealand standards, offering dependability and safety.
Important attributes:
For superior conductivity, use plain annealed copper (usually 7/1.35mm stranding) as the conductor material.
V-90 PVC (polyvinyl chloride) insulation, which is renowned for its strength and ability to withstand heat. Additionally, some publications make reference to V90HT, which denotes a greater temperature rating.
Suitable for general residential, commercial, and industrial electrical systems, the voltage rating is 0.6/1 kV.
Temperature Rating: Up to 90°C is the standard operating temperature at which it is intended to function.
Compliance: Fulfills New Zealand and Australian Standards, such as AS/NZS 5000.1, AS/NZS 3808, and AS/NZS 1125.
Color: Earth insulation, perfect for identifying different circuits, especially for neutral or specific phase wiring based on local codes.
Length: Comes in a handy 100-meter coil or roll.
Use: Ideal for equipment such as control panels, switchboards, and enclosed wiring where the wire is not susceptible to mechanical harm. Ideal for glanding as well.
| Specification |
Details |
| Model Number |
SR1100 |
| Conductor Size |
10 mm² |
| Stranding |
7 strands of 1.35 mm |
| Overall Diameter |
6.1 mm |
| Insulation Thickness |
1.0 mm |
| DC Resistance |
1.83 Ohm/km |
| AC Resistance |
2.23 Ohm/km |
| Standards Compliance |
AS/NZS 1125, 3808, 5000.1 |
| Voltage Rating |
0.6/1 kV |
| Current Rating |
Around 53 Amp |
