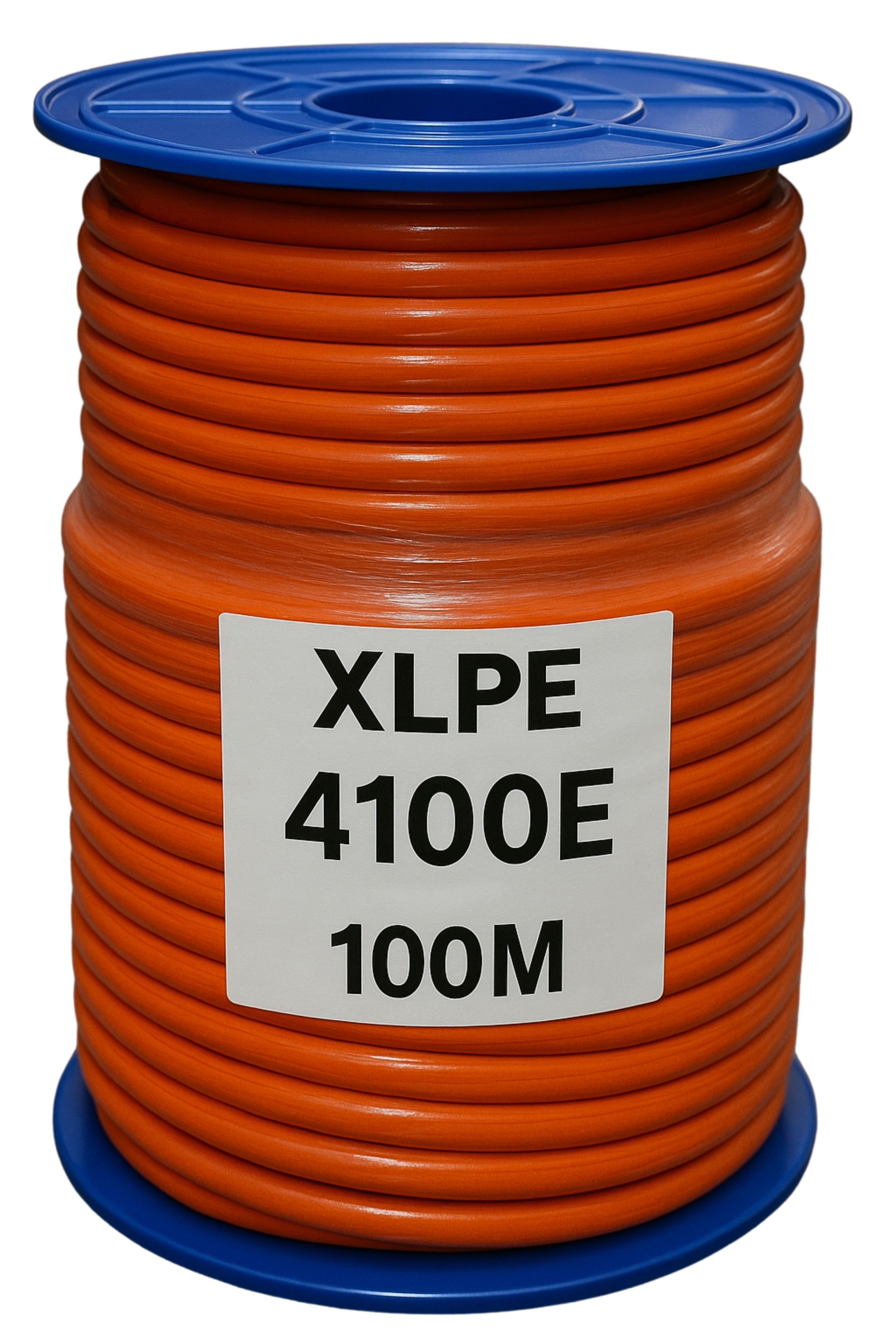

The heavy-duty ELECTRA 10MM² 4C+E Orange Circular Cable (XLPE4100E) is made for power distribution in commercial, industrial, and residential settings. In addition to an earth conductor for safety, it has four 10mm² copper conductors (cores) for active power transmission. A sturdy, orange circular outer casing protects the cable from weather elements and mechanical stress while also making it immediately recognized. The product designation "XLPE" denotes that the insulation is made of Cross-Linked Polyethylene, which is renowned for its superior dielectric qualities and resistance to elevated temperatures. Mains, sub-mains, and other fixed wiring installations where a significant current carrying capability is needed usually utilize this cable. Typically, 100-meter lengths are provided.
Important attributes:
Four Core + Earth (4C+E): Consists of one Green/Yellow earth conductor and four active conductors, usually red, white, blue, and black. Applications requiring three-phase power with a neutral can use this setup.
For more demanding power circuits, the 10mm² conductor size provides a sizable cross-sectional area for transmitting higher electrical currents.
Compared to regular PVC insulation, XLPE insulation (X-90) offers better insulation qualities, increased durability, and temperature resistance (usually up to 90°C normal working temperature).
5V-90 Orange Circular PVC Sheath: It is simple to recognize an electrical power wire because to its orange hue. The long-lasting, round PVC sheath provides mechanical defense.
For many installation jobs, a standard supply length is 100 meters.
High Current Carrying Capacity: Made for uses where a significant amount of power must be delivered.
Usually rated for 0.6/1kV (600/1000V), this voltage rating makes it appropriate for low voltage mains and sub-mains applications.
Standards Compliance: Made in accordance with applicable Australian and New Zealand standards, including AS/NZS 5000.1, AS/NZS 1125, and AS/NZS 3808.
Good conductivity and flexibility are ensured by annealed copper conductors, making installation simpler.
| Specification |
Details |
| SKU |
XLPE4100E |
| Conductor Material |
Plain annealed copper (AS/NZS 1125) |
| Conductor Size |
10 mm² |
| Stranding |
7/1.7 mm |
| Earth Conductor Size |
4 mm² |
| Insulation Material |
X-90 XLPE |
| Insulation Thickness |
0.7 mm |
| Sheath Material |
5V-90 PVC |
| Sheath Thickness |
1.8 mm |
| Overall Diameter |
25.2 mm |
| Bend Radius |
21 mm |
| Number of Cores |
4 Core + Earth |
| Core Colours |
Red, White, Blue, Black, Green/Yellow |
| Standards Compliance |
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, AS/NZS 4026 |
