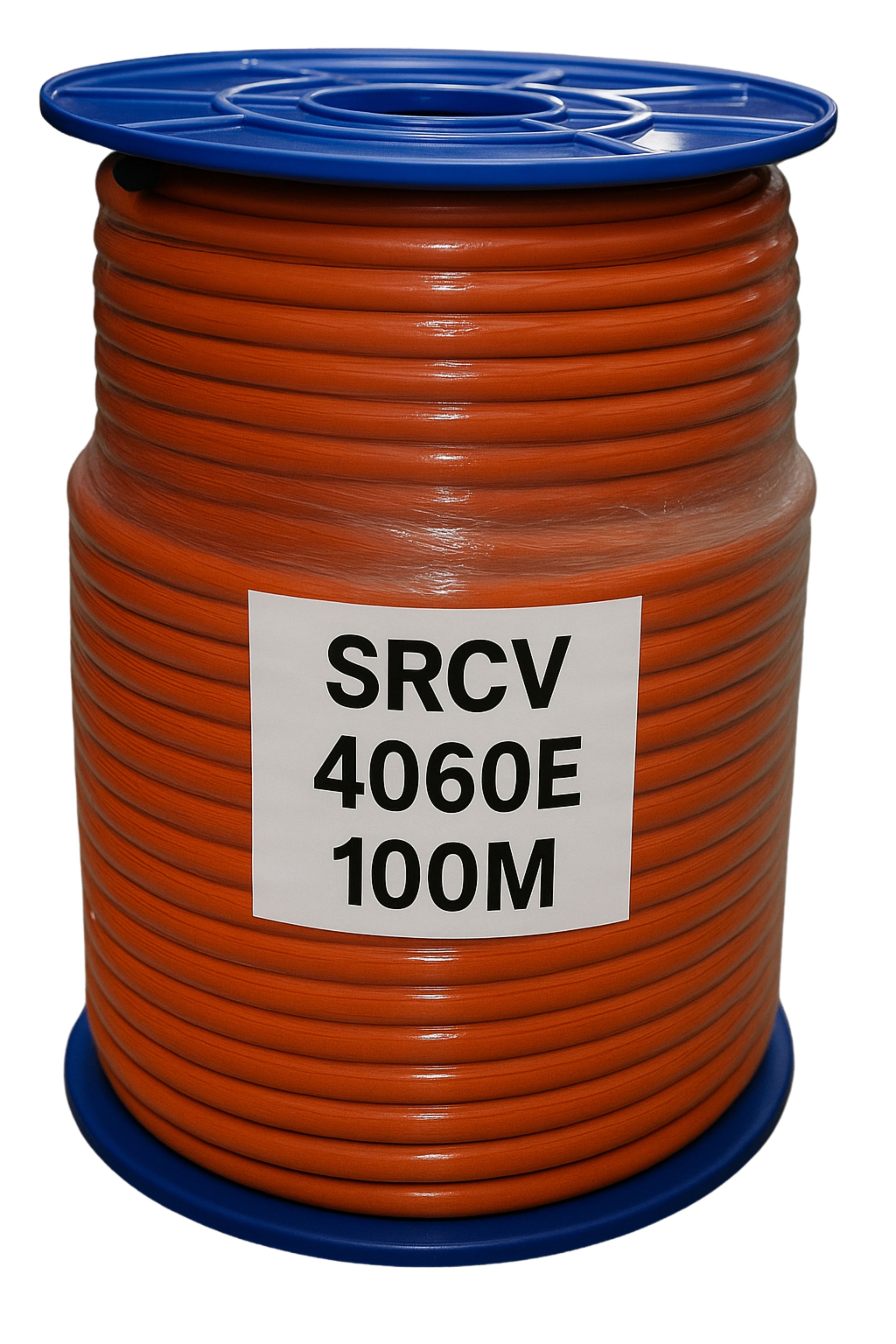

A sturdy electrical cable with a higher current carrying capacity, the ELECTRA 6MM² 4C+E 100M Orange Circular Cable (SRCV4060E) is made for power distribution and fixed wiring applications. It has one earth conductor and four 6mm² copper conductors (cores), all of which are protected and easily identifiable by a characteristic orange circular outer coating. This 100-meter-long heavy-duty cable is frequently utilized in commercial, industrial, and residential settings for mains and sub-mains power supply applications.
Important Features:
Four Core + Earth (4C+E): Contains one earth conductor for safety and four active conductors (often used for three-phase applications with a neutral).
Electrical loads that require a larger conductor cross-sectional area for a higher current capacity can benefit from a 6mm² conductor size.
Orange Circular Sheath: In intricate wire situations, the vivid orange hue makes identification simple. Mechanical strength is provided by the circular design.
A standard 100-meter roll is provided, making it convenient for a range of installation tasks.
Long-lasting sheath and insulation: Provides defense against moisture, mechanical stress, and other environmental elements. The designation "SRCV" usually denotes particular sheath (PVC) and insulation (usually XLPE) qualities intended for harsh environments.
Excellent conductivity and flexibility are provided by annealed copper conductors, making installation simpler.
Typically rated at 0.6/1kV (600/1000V), this voltage rating makes it appropriate for low voltage power applications.
| Specification |
Details |
| SKU |
SRCV4060E |
| Conductor Material |
Plain annealed copper (AS/NZS 1125) |
| Conductor Size |
6 mm² |
| Stranding |
4 x 7/1.04 mm + 7/0.67 mm Earth |
| Insulation Material |
PVC V-90 |
| Insulation Thickness |
0.8 mm |
| Sheath Material |
PVC 5V-90 |
| Sheath Thickness |
1.4 mm |
| Overall Diameter |
15.0 mm |
| Approximate Mass |
42.1 kg per 100 m |
| Number of Cores |
4 Core + Earth |
| Core Colours |
Red, White, Blue, Black, Green/Yellow |
| Standards Compliance |
AS/NZS 5000.2 |
| Warranty |
1 Year |
