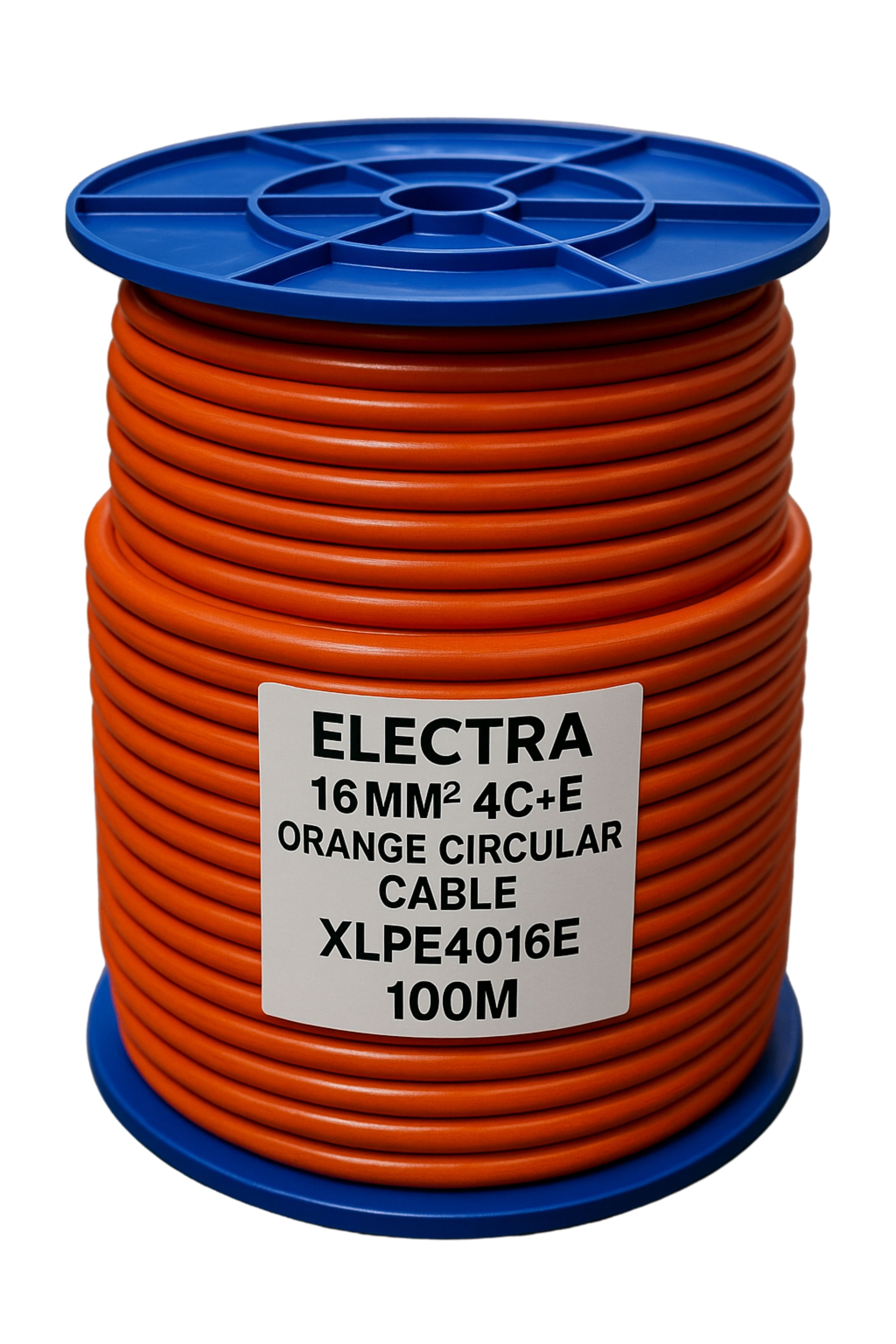

A premium, unarmoured circular power cable for mains, sub-mains, and sub-circuits is the Electra XLPE4016E. As long as they are not susceptible to mechanical damage, it can be used in installations that are buried directly, encased in conduit, unenclosed, or installed in subterranean ducts within buildings and industrial facilities. The cable can be used for glanding purposes as well.
Important attributes:
Rating for Voltage: 0.6/1 kV.
Rating for Temperature: Up to 90°C.
Complying with AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, and AS/NZS 4026 standards during manufacturing.
Core Identification: For simple phase identification, use red, white, blue, black, and green/yellow cores.
Durability: PVC sheath and sturdy XLPE insulation for improved protection.
Flexibility: Adaptable to a range of installation techniques, such as conduit and direct burial systems.
| Specification |
Details |
| SKU |
XLPE4016E |
| Conductor Material |
Plain annealed copper (AS/NZS 1125) |
| Conductor Size |
16 mm² |
| Stranding |
7/1.65 mm |
| Earth Conductor Size |
6 mm² |
| Insulation Material |
X-90 XLPE |
| Insulation Thickness |
0.7 mm |
| Sheath Material |
5V-90 PVC |
| Sheath Thickness |
1.8 mm |
| Overall Diameter |
21.6 mm |
| Bend Radius |
85 mm |
| Conductor Resistance |
DC: 1.15 Ohm/km |
| Number of Cores |
4 Core + Earth |
| Core Colours |
Red, White, Blue, Black, Green/Yellow |
| Standards Compliance |
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, AS/NZS 4026 |
| Temperature Range |
-15°C to 90°C |
