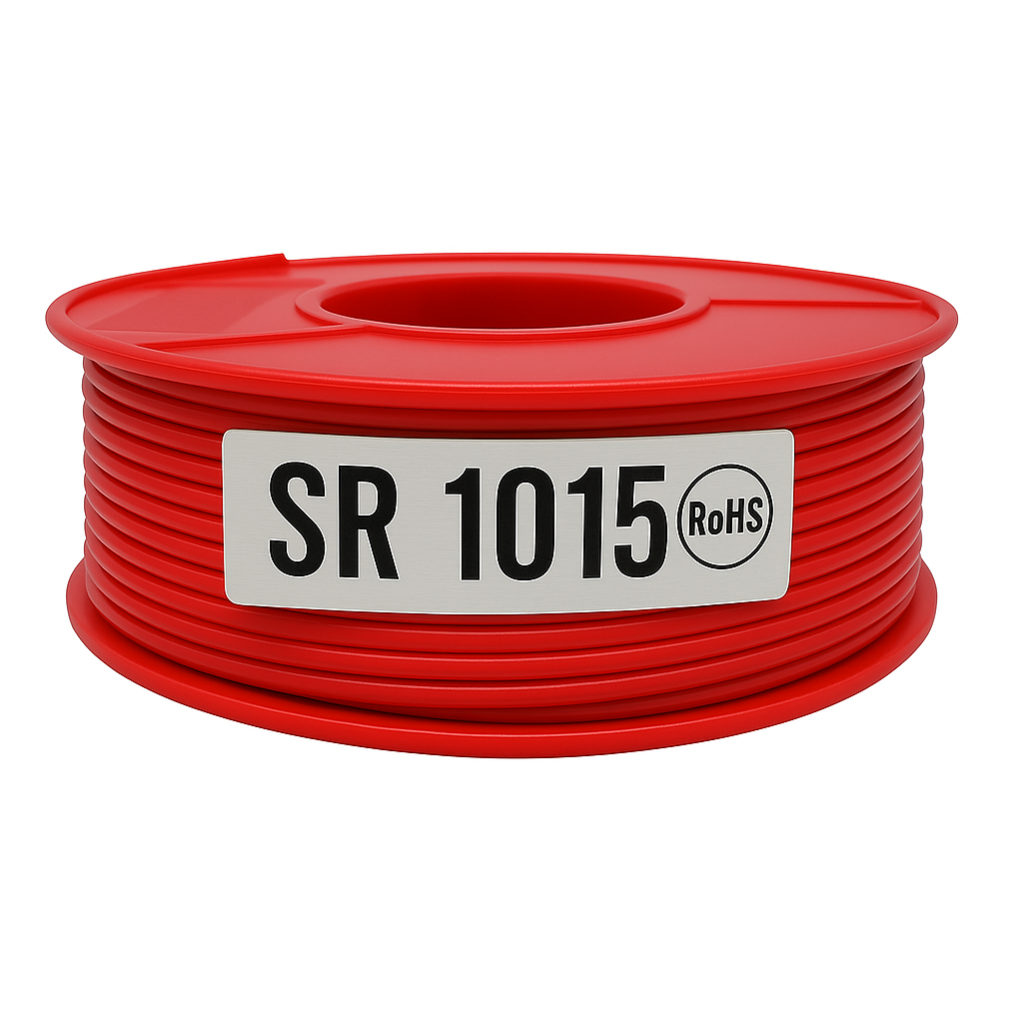

This premium building wire has a single-core, stranded copper conductor and is protected by long-lasting V-90 PVC insulation. For fixed wiring in residences, businesses, and industrial settings, it is perfect. This wire provides dependable performance and safety whether you're working on switchboards, control panels, or power distribution. Because it complies with AS/NZS 5000.1, you can rely on it for reliable electrical installations.
Key Features:
Sturdy Copper Construction: Stranded annealed copper (7 0.50 mm strands) for strength and flexibility.
Superior Insulation: Encased in V-90 PVC insulation, which is capable of withstanding temperatures as high as 90°C.
Support for Voltage: 0.6/1 kV is the ideal rating for the majority of low-voltage electrical systems.
Current Capacity: Effectively manages up to 16 Amps.
Color: Finished in a sleek red.
Length: Comes on a handy roll of 100 meters.
Standards-Compliant: Constructed to satisfy the safety and quality requirements of AS/NZS 5000.1, AS/NZS 3808, and AS/NZS 1125.
| Specification |
Details |
| Conductor Size |
1.5 mm² |
| Stranding |
7/0.50 mm |
| Insulation Thickness |
0.8 mm |
| Overall Diameter |
3.1 mm |
| Minimum Bending Radius |
15 mm |
| Conductor Resistance (DC) |
13.6 Ohm/km |
| Conductor Resistance (AC) |
16.5 Ohm/km |
| Operating Temperature |
Up to 90°C |
| Weight |
Approximately 2.135 kg per roll |
