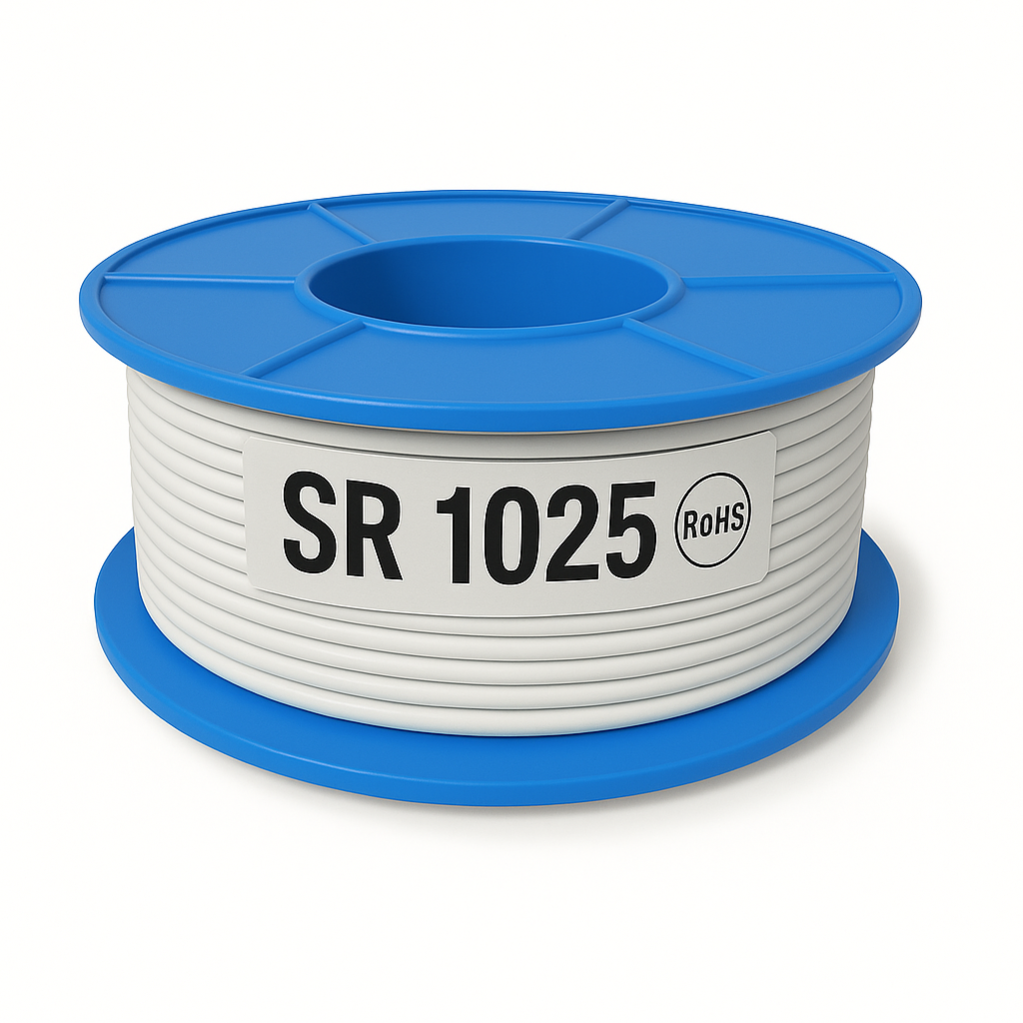

The Electra SR1025 is a high-quality single-core white building wire, perfect for a wide range of electrical installations. Whether you're wiring a switchboard, setting up a control panel, or running a separate earth conductor, this wire delivers dependable performance you can trust.
Crafted with plain annealed copper for excellent conductivity and insulated with tough V-90 PVC, it's built to handle up to 0.6/1 kV and temperatures as high as 90°C. That means it's not only flexible and easy to work with but also durable enough for both residential and commercial projects.
Key Features:
High Conductivity: Made with plain annealed copper for efficient power transmission.
Durable Insulation: V-90 PVC resists wear, heat, and moisture.
Voltage Rating: Handles up to 0.6/1 kV with ease.
Heat Resistant: Designed to perform in environments up to 90°C.
Compliant & Certified: Meets AS/NZS 1125, 5000.1, and 3808 standards.
Versatile Applications: Great for switchboards, control panels, and earth conductors.
Color: Sleek white finish.
Warranty: 1-year
| Specification |
Details |
| Conductor Size |
2.5mm² (7/0.67 mm strands) |
| Length |
100 meters |
| Insulation Thickness |
0.8 mm |
| Minimum Bending Radius |
15 mm |
| Nominal Outer Diameter |
3.6 mm |
| Approximate Mass |
32 kg/km |
| Current Rating |
22 Amps |
| Conductor Resistance |
DC: 7.41 Ω/km, AC: 9.01 Ω/km |
.png)
No Reviews For this Product
