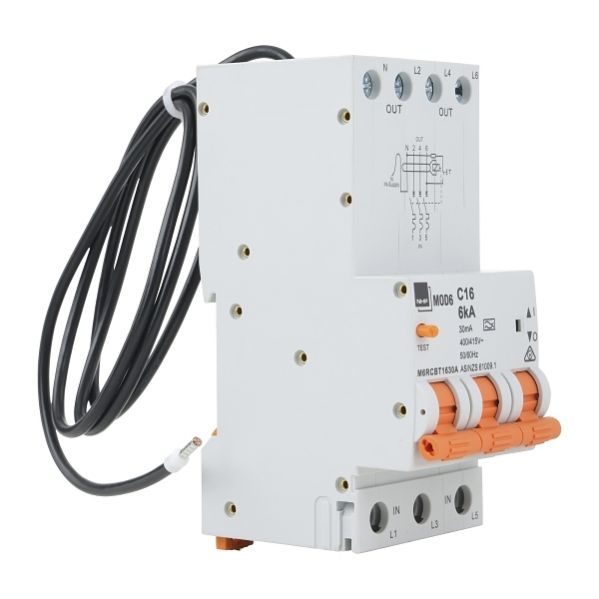

The NHP MOD6 3P+N 10A PIGTAIL C CURVE 30mA Type A RCBO (M6RCBT1030A) is designed to provide comprehensive electrical protection in a compact and efficient form factor.
By integrating both overcurrent and earth leakage protection into one device, it delivers a robust solution for safeguarding circuits against both overloads and fault currents.
Its optimized C-curve trip characteristic, high short-circuit breaking capacity, and ease of installation—thanks to its DIN rail mounting and neutral pigtail—make it an ideal choice for applications that require dependable, space-saving protection.
Additional safety features such as the padlockable toggle and free tripping mechanism further enhance its reliability and security, ensuring that the device performs consistently under demanding conditions.
FEATURES:
Provides overcurrent protection to interrupt excessive currents, ensuring that circuits are safeguarded against overload and short-circuit conditions.
With a 10A rating, this device is designed for circuits with moderate load requirements, making it suitable for applications in residential, light commercial, and specialized industrial settings where low current circuits are common
The C-curve characteristic is optimized for general lighting and power circuits, as well as for applications that experience moderate inrush currents (such as motor starts). This helps reduce nuisance tripping while ensuring that the device trips reliably under fault conditions.
Rated at 6 kA, the RCBO can safely interrupt high fault currents in accordance with AS/NZS 61009 standards, ensuring robust protection even under severe fault conditions.
The device is engineered for durability with a mechanical life of 20,000 cycles and an electrical life of 10,000 cycles, ensuring reliable performance over an extended period even in demanding environments.
| Specification |
Detailed Description |
| Product Model |
NHP MOD6 3P+N 10A PIGTAIL C CURVE 30mA Type A RCBO (M6RCBT1030A) |
| Product Type |
RCBO – Combines a miniature circuit breaker (MCB) with a residual current device (RCD) for integrated overcurrent and earth leakage protection |
| Configuration |
3 Phase + Neutral (3P+N) with an integrated neutral pigtail for simplified wiring and reduced installation time |
| Rated Current |
10 A at 30°C – Maximum continuous current the device is designed to carry under standard operating conditions |
| Rated Voltage |
415 V AC – Suitable for typical three-phase supply systems |
| Residual (Leakage) Current |
30 mA (Type A) – Provides sensitive earth leakage protection to quickly disconnect the circuit in the event of an imbalance |
| Trip Curve |
C Curve – Optimized for general lighting, power circuits, and moderate inrush currents (e.g., from motor starting), minimizing nuisance tripping |
| Frequency |
50/60 Hz – Compatible with standard power frequency requirements internationally |
| Short-Circuit Breaking Capacity |
6 kA – Rated to safely interrupt high fault currents, compliant with AS/NZS 61009 |
| Mounting Method |
DIN Rail – Designed to fit a standard 35 mm top hat rail for secure and space-efficient installation in loadcentres and panelboards |
| Dimensions (mm) |
Height: 117.5 mm, Width: 54 mm, Depth: 71.6 mm – Compact dimensions that match the standard width for a 3-pole device |
| Dimensions (cm) |
Height: 11.75 cm, Width: 5.4 cm, Depth: 7.16 cm |
| Weight |
Approximately 0.55 kg – Lightweight design for easy handling and installation |
| Mechanical Life |
20,000 cycles – Indicates robust mechanical construction capable of withstanding a high number of operational cycles |
