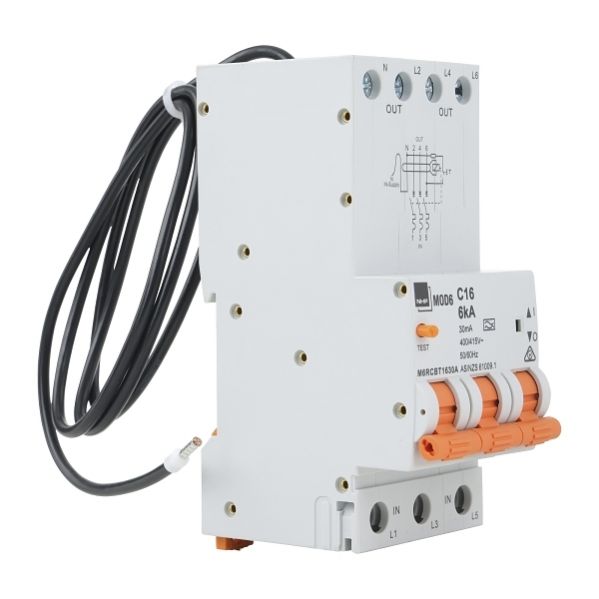

The NHP MOD6 RCBO is an integrated protective device that combines the functions of a miniature circuit breaker (MCB) and a residual current device (RCD) into one compact unit.
Designed for 3-phase applications, this unit includes a neutral pigtail for simplified wiring and a faster installation process.
Engineered to offer both overcurrent and earth leakage protection, it is suitable for a wide range of commercial, industrial, and even mining applications—particularly when used in NHP Concept One panelboards and loadcentres.
Incorporates a free tripping mechanism that ensures the device will disconnect even if the toggle is locked or sealed
Built with a robust mechanical life of 20,000 cycles and an electrical life of 10,000 cycles, ensuring long-term reliability
FEATURES:
Combines MCB and RCD functionalities, offering dual protection from overcurrent and earth leakage faults.
3P+N with an integrated neutral pigtail for easier connections
Mounting: Designed for DIN rail installation using a standard 35 mm top hat rail
Compact Form Factor: Maintains the same width as a standard 3-pole MCB (54 mm), saving space in panel installations
Features a padlockable toggle mechanism to restrict unauthorized operation
| Specification |
Value/Description |
| Product Model |
NHP MOD6 3P+N 32A PIGTAIL C CURVE 30mA Type A RCBO (M6RCBT3230A) |
| Product Type |
RCBO (Integrated MCB + RCD) |
| Configuration |
3P+N with Neutral Pigtail |
| Rated Current |
32 A (at 30°C) |
| Rated Voltage |
415 V AC |
| Residual (Leakage) Current |
30 mA (Type A) |
| Trip Curve |
C Curve (suitable for general lighting, power, and motor starting loads) |
| Frequency |
50/60 Hz |
| Short-Circuit Breaking Capacity |
6 kA (in accordance with AS/NZS 61009) |
| Mounting Method |
DIN rail (35 mm top hat rail) |
| Height |
117.5 mm (11.75 cm) |
| Width |
54 mm (5.4 cm) |
| Depth (Length) |
71.6 mm (7.16 cm) |
| Weight |
Approximately 0.55 kg |
| Mechanical Life |
20,000 cycles |
| Electrical Life |
10,000 cycles |
| Additional Features |
Padlockable toggle; free tripping mechanism even if locked; compact design ideal for modern panelboards and loadcentres |
