| Specification | Value |
|---|---|
| Product Series / Model | NHP MOD6 RCBO, M6RCBT4030A |
| Configuration | 3P+N with Neutral Pigtail |
| Rated Current | 40 A at 30°C |
| Rated Voltage | 415 V AC |
| Residual (Leakage) Current | 30 mA (Type A) |
| Trip Curve | C Curve |
| Frequency | 50/60 Hz |
| Short-Circuit Breaking Capacity | 6 kA (as per AS/NZS 61009) |
| Mounting Method | DIN rail (35 mm top hat rail) |
| Dimensions (mm) | Height: 117.5 mm, Width: 54 mm, Depth: 71.6 mm |
| Dimensions (cm) | Height: 11.75 cm, Width: 5.4 cm, Depth: 7.16 cm |
| Weight | Approximately 0.55 kg |
| Mechanical Life | 20,000 cycles |
| Electrical Life | 10,000 cycles |
| Additional Features | Padlockable toggle; free tripping mechanism even if locked; compact design suitable for NHP Concept One panelboards |

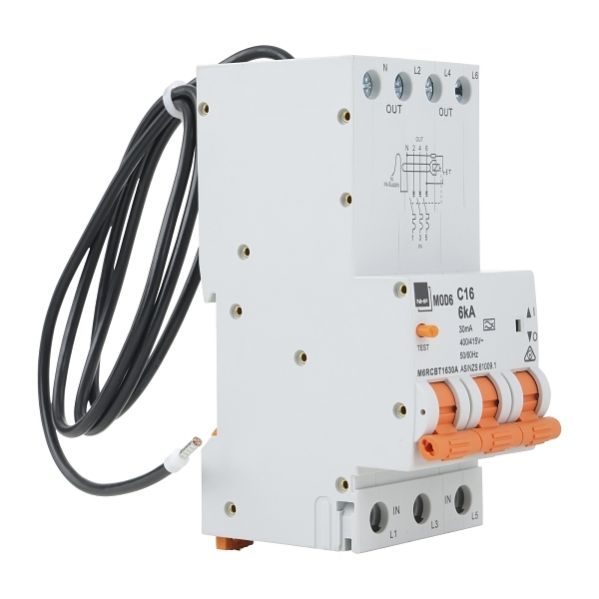

NHP MOD6 3P+N 40A PIGTAIL C CURVE 30mA Type A RCBO M6RCBT4030A
This RCBO is designed for commercial, industrial, and mining applications and is well-suited for installation in NHP Concept One panelboards. This compact design is ideal for DIN rail installations, fitting in the same width as a standard 3P MCB (54 mm), while still offering robust protection with a 6kA short-circuit breaking capacity and integrated residual current protection.
, ,
$198.18
ex. GST
$218.00
| Color : | Black |
| Brand : |
|
|---|
0 Reviews For this Product
