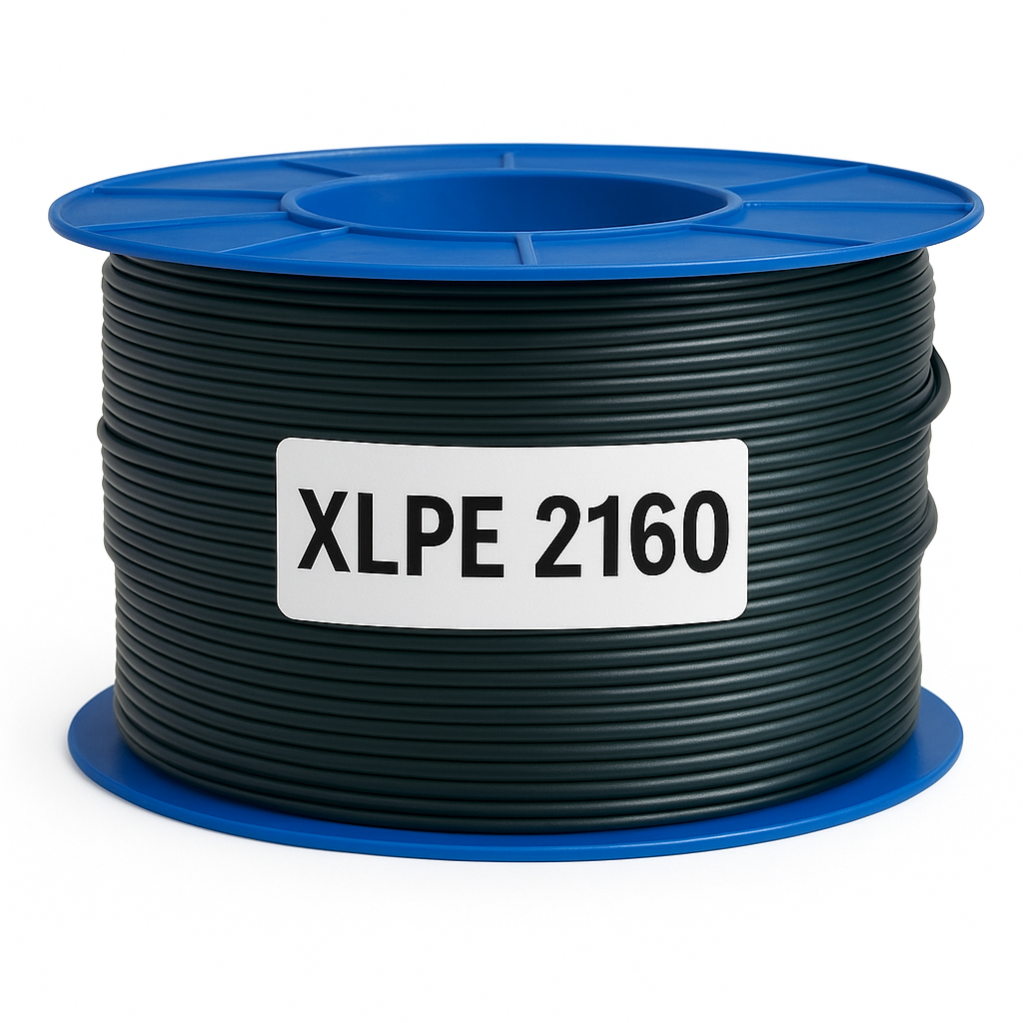

The twin 16mm² 2 Core, unarmoured Electra XLPE2160 power cable is made for dependable fixed wiring applications. It has a sturdy Black 5V-90 PVC sheath and premium XLPE (Cross-linked Polyethylene) X-90 insulation. This cable can be used for single-phase power distribution in commercial, industrial, and residential contexts because of its red and black core colors. When no mechanical loads are anticipated, it is perfect for mains, sub-mains, and sub-circuits. As long as it is shielded from mechanical harm, the cable's design permits a variety of installation techniques, such as unenclosed, within conduit, direct burial, or in underground ducts. The XLPE2160 was manufactured in accordance with the strict Australian and New Zealand standards (AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, and AS/NZS 4026) to provide a reliable, efficient, and safe electrical supply.
Important attributes:
With a voltage rating of 0.6/1 kV, it can be used in a variety of general power applications.
High Temperature Performance: Up to 90°C can be operated continuously.
Sturdy Construction: Contains a durable Black 5V-90 PVC sheath for strong mechanical protection and XLPE X-90 insulation for exceptional thermal and electrical qualities.
Flexible Installation: Adaptable to a number of installation techniques, including conduit, unenclosed, direct burial, and underground ducting.
Clear Core Identification: For simple and secure phase identification in single-phase applications, this product comprises conventional red and black cores.
Standards Compliant: High quality and safety are ensured by manufacturing in compliance with AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, and AS/NZS 4026 standards.
Optimal Conductivity: For greatest efficiency and current carrying capacity, use plain annealed copper conductors.
| Specification |
Details |
| SKU |
XLPE2160 |
| Cable Size |
16 mm² (each core) |
| Number of Cores |
2 (Twin) |
| Core Colors |
Red & Black |
| Insulation Type |
XLPE |
| Conductor Stranding |
Typically 7/1.7 mm |
| Insulation Material |
X-90 XLPE |
| Insulation Thickness (per core) |
1.5 mm |
| Sheath Material |
5V-90 PVC |
| Sheath Colour |
Black |
| Sheath Thickness |
1.5 mm |
| Voltage Rating |
0.6/1 kV |
| Max Conductor Temp |
90°C (continuous operation) |
| Bending Radius |
290 mm |
| Standards |
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, AS/NZS 4026 |
