Designed for DIN rail mounting, the unit offers a secure and space-efficient solution for modern loadcentres and panelboards.

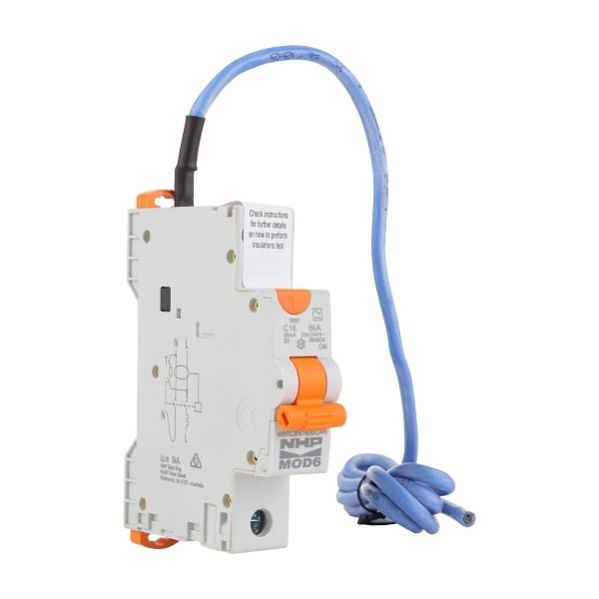

The NHP MOD6 1P10A PIGTAIL C CURVE TYPE A RCBO (M6RCBS1030CAN) delivers integrated overcurrent and earth leakage protection in a single compact unit, making it an ideal solution for low-current, single-phase electrical installations.
With its 10 A rating, C-curve trip characteristic, and robust 6 kA fault interruption capacity, this RCBO provides reliable protection while accommodating moderate inrush currents.
Its ease of installation, facilitated by the integrated neutral pigtail and DIN rail mounting design, along with enhanced safety features such as the padlockable toggle and free tripping mechanism, make it a dependable choice for modern loadcentres and panelboards.
FEATURES:
Interrupts excessive currents caused by overloads or short circuits, thereby protecting the circuit and connected equipment.
Provides sensitive leakage detection at 30 mA (Type A), ensuring rapid disconnection in the event of an imbalance to enhance personal safety.
Optimized for general lighting and power circuits, this curve accommodates moderate inrush currents while reducing the likelihood of nuisance tripping.
With a short-circuit breaking capacity of 6 kA, the unit safely interrupts high fault currents in accordance with industry standards.
Its small footprint facilitates high-density installations without compromising on protection.
| Specification |
Detailed Description |
| Product Model |
NHP MOD6 1P10A PIGTAIL C CURVE TYPE A RCBO – Catalogue No. M6RCBS1030CAN |
| Product Type |
RCBO – Integrated device combining a miniature circuit breaker (MCB) and a residual current device (RCD) for dual overcurrent and earth leakage protection |
| Configuration |
1P+N – Single-pole with neutral connection; includes an integrated neutral pigtail for simplified wiring and faster installation |
| Rated Current |
10 A at 30°C – Maximum continuous current handling under standard operating conditions |
| Rated Voltage |
415 V AC – Suitable for typical single-phase supply systems |
| Residual (Leakage) Current |
30 mA (Type A) – Provides sensitive earth leakage detection that trips at 30 mA to prevent electrical shock hazards |
| Trip Curve |
C Curve – Optimized for general lighting and power circuits; accommodates moderate inrush currents to reduce nuisance tripping |
| Frequency |
50/60 Hz – Compatible with standard international power frequency requirements |
| Short-Circuit Breaking Capacity |
6 kA – Rated to safely interrupt high fault currents in accordance with industry standards (e.g., AS/NZS 61009) |
| Mounting Method |
DIN Rail – Designed for secure, space-efficient installation on a standard 35 mm top hat rail in loadcentres and panelboards |
| Mechanical Life |
20,000 cycles – Ensures long-term durability under repeated mechanical operations |
| Electrical Life |
10,000 cycles – Reflects the number of reliable tripping events over the device’s service life |
