The NHP MOD6 1P+N C25 RCBO is an integrated circuit protection device designed for single‐phase applications.
It combines the functionality of a miniature circuit breaker (MCB) and a residual current device (RCD) in one compact unit, offering dual protection against both overcurrent conditions and earth leakage faults
Engineered for a rated current of 25 A at 415 V AC, this unit features a C-curve tripping characteristic that is optimized for general lighting and power circuits.
It accommodates moderate inrush currents—such as those from motor starts—while reducing nuisance tripping.
The 1P+N configuration, which includes an integrated neutral pigtail, simplifies wiring and accelerates installation. Designed for DIN rail mounting, it is ideal for modern loadcentres and panelboards where space efficiency is critical.
FEATURES:
Interrupts excessive current due to overloads or short circuits, thereby protecting the circuit components.
Rated at 25 A and 415 V AC, making it suitable for typical single‐phase supply systems.
Tailored for general lighting and power applications, it reliably detects fault conditions while accommodating moderate inrush currents.
The single-pole design with an integrated neutral pigtail minimizes the need for extra wiring, speeding up installation and reducing potential wiring errors.
Its compact size allows for high-density installations without compromising protection.
With a mechanical life of 20,000 cycles and an electrical life of 10,000 cycles, it is built for consistent performance over many operations.
| Specification |
Detailed Description |
| Product Model |

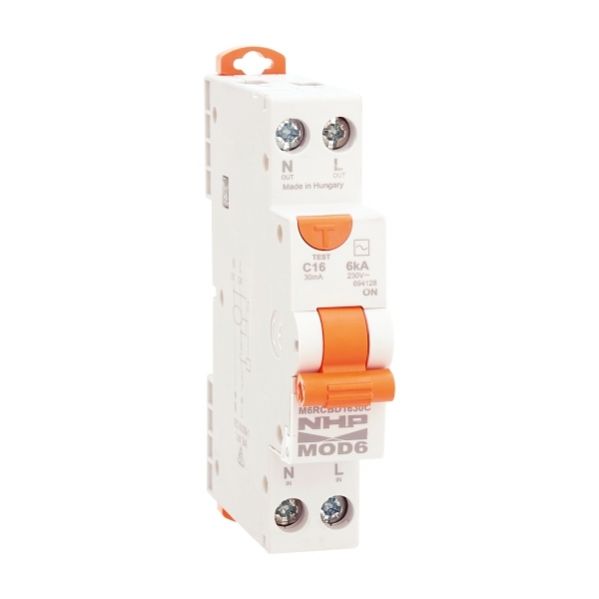

NHP MOD6 1P+N C25 30mA Type A RCBO – Catalogue No. M6RCBD2530CAN |
| Product Type |
RCBO – Integrated device combining a miniature circuit breaker (MCB) with a residual current device (RCD) for dual protection |
| Configuration |
1P+N – Single-pole with neutral connection; includes an integrated neutral pigtail for simplified wiring and faster installation |
| Rated Current |
25 A at 30°C – Maximum continuous current handling under standard operating conditions |
| Rated Voltage |
415 V AC – Suitable for typical 1-phase supply systems |
| Residual (Leakage) Current |
30 mA (Type A) – Sensitive earth leakage protection that trips at 30 mA to prevent shock hazards |
| Trip Curve |
C Curve – Optimized for general lighting and power circuits; accommodates moderate inrush currents (e.g., from motor starting) to minimize nuisance tripping |
| Frequency |
50/60 Hz – Compatible with standard international power frequency requirements |
| Short-Circuit Breaking Capacity |
6 kA – Rated to safely interrupt high fault currents in compliance with AS/NZS 61009 |
| Mounting Method |
DIN Rail – Designed for secure, space-efficient installation on a standard 35 mm top hat rail in loadcentres and panelboards |
| Mechanical Life |
20,000 cycles – Robust construction ensuring longevity under repeated mechanical operations |
| Electrical Life |
10,000 cycles – Reflects reliable performance over numerous tripping events |
