The device’s C-curve tripping characteristic is optimized for general lighting and power circuits, accommodating moderate inrush currents—such as those experienced during motor starts—while minimizing nuisance tripping. Its DIN rail–mountable design ensures a secure and space-efficient installation in modern loadcentres and panelboards.
The NHP MOD6 1P+N C10A RCBO is an integrated protection device designed for single-phase applications.
It combines the functions of a miniature circuit breaker (MCB) with those of a residual current device (RCD) in one compact unit, offering dual protection against both overcurrent conditions (such as overloads and short circuits) and earth leakage faults.

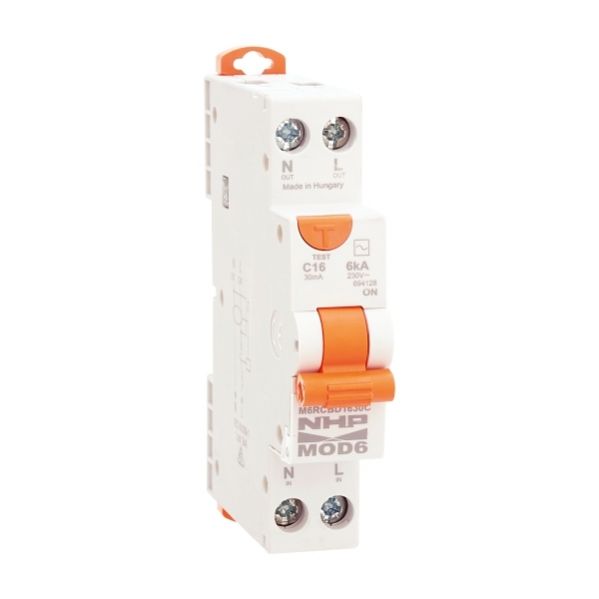

The NHP MOD6 1P+N C10A 30mA Type A RCBO (M6RCBD1030CAN) delivers integrated overcurrent and earth leakage protection in a compact, DIN rail–mountable unit. With its 10 A rating, C-curve trip characteristic, and 6 kA fault interruption capacity, it is an ideal solution for protecting low-current 1-phase circuits.
Features:
Interrupts excessive currents due to overloads or short circuits, protecting downstream equipment.
Provides sensitive leakage detection at 30 mA (Type A) to quickly disconnect the circuit in the event of an imbalance, reducing the risk of electrical shock.
Suitable for low-current 1-phase applications, ensuring reliable performance under typical operating conditions.
Balances reliable fault detection with the ability to handle moderate inrush currents, thus reducing nuisance tripping.
With a short-circuit breaking capacity of 6 kA, it meets the standards of AS/NZS 61009.
Incorporates a single-pole design with a neutral connection, featuring an integrated neutral pigtail that simplifies wiring and accelerates installation.
Engineered to fit on a standard 35 mm top hat DIN rail, providing a secure, space-saving installation in electrical distribution panels.
Compact Form Factor: Designed for high-density installations without compromising performance.
The operating toggle can be secured with a padlock to prevent unauthorized adjustments, enhancing safety in sensitive environments.
Ensures reliable disconnection in fault conditions even if the toggle is locked.
Built with a robust mechanical life of 20,000 cycles and an electrical life of 10,000 cycles, ensuring durability over extended periods.
| Specification |
Detailed Description |
| Product Model |
NHP MOD6 1P+N C10A 30mA Type A RCBO – Catalogue No. M6RCBD1030CAN |
| Product Type |
RCBO – Integrated device combining a miniature circuit breaker (MCB) with a residual current device (RCD) for dual protection |
| Configuration |
1P+N – Single-pole with neutral connection; includes an integrated neutral pigtail for simplified wiring and faster installation |
| Rated Current |
10 A at 30°C – Maximum continuous current handling under standard conditions |
| Rated Voltage |
415 V AC – Suitable for typical 1-phase supply systems |
| Residual (Leakage) Current |
30 mA (Type A) – Sensitive earth leakage protection that trips at 30 mA to prevent electrical shock hazards |
| Trip Curve |
C Curve – Optimized for general lighting and power circuits; accommodates moderate inrush currents (e.g., motor starting) to minimize nuisance tripping |
| Frequency |
50/60 Hz – Compatible with standard international power frequency requirements |
| Short-Circuit Breaking Capacity |
6 kA – Rated to safely interrupt high fault currents in accordance with AS/NZS 61009 |
| Mounting Method |
DIN Rail – Designed for secure, space-efficient installation on a standard 35 mm top hat rail in loadcentres and panelboards |
| Electrical Life |
10,000 cycles – Reflects the number of reliable tripping events over the device’s service life |
