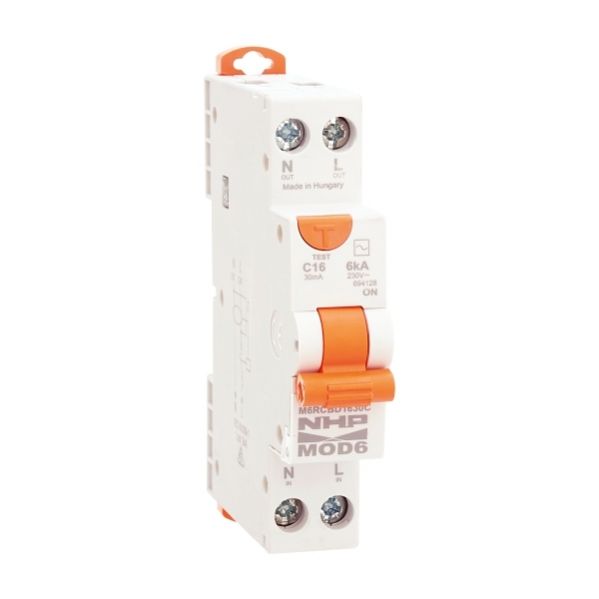

The NHP MOD6 1P+N C16A 30mA Type A RCBO (M6RCBD1630CAN) offers comprehensive, integrated protection for single-phase circuits by combining both overcurrent and earth leakage protection in one compact, DIN rail–mountable unit.
With its 16 A rating, C-curve trip characteristic, and high short-circuit breaking capacity of 6 kA, it is engineered to reliably safeguard against electrical faults in typical 1-phase systems.
The design’s ease of installation—thanks to the integrated neutral pigtail—and enhanced safety features such as the padlockable toggle and free tripping mechanism make it an efficient and secure choice for modern electrical installation.
FEATURES:
Automatically interrupts excessive current caused by overloads or short circuits to protect downstream equipment.
Provides sensitive leakage detection at a 30 mA threshold (Type A) to rapidly disconnect the circuit in the event of a fault, enhancing safety
Balances reliable fault detection with accommodation for moderate inrush currents, ensuring proper operation without nuisance tripping
With a 6 kA rating, it safely interrupts high fault currents, complying with AS/NZS 61009 standards.
Its small footprint allows for high-density installations without compromising performance.
| Specification |
Detailed Description |
| Product Model |
NHP MOD6 1P+N C16A 30mA Type A RCBO – Catalogue No. M6RCBD1630CAN |
| Product Type |
RCBO – Integrated device combining a miniature circuit breaker (MCB) with a residual current device (RCD) for overcurrent and earth leakage protection |
| Configuration |
1P+N – Single-pole with neutral connection; includes an integrated neutral pigtail for simplified wiring and faster installation |
| Rated Current |
16 A at 30°C – Maximum continuous current handling under standard operating conditions |
| Rated Voltage |
415 V AC – Suitable for typical 1-phase supply systems |
| Residual (Leakage) Current |
30 mA (Type A) – Provides sensitive earth leakage protection that trips at 30 mA to prevent electrical shock hazards |
| Trip Curve |
C Curve – Optimized for general lighting and power circuits; accommodates moderate inrush currents to reduce nuisance tripping |
| Frequency |
50/60 Hz – Compatible with standard international power frequency requirements |
| Short-Circuit Breaking Capacity |
6 kA – Rated to safely interrupt high fault currents in compliance with AS/NZS 61009 |
| Mounting Method |
DIN Rail – Designed for secure, space-efficient installation on a standard 35 mm top hat rail in loadcentres and panelboards |
| Mechanical Life |
20,000 cycles – Ensures long-term durability under repeated mechanical operations |
| Electrical Life |
10,000 cycles – Reflects the number of reliable tripping events over the device’s service life |
| Additional Features |
• Padlockable Toggle: Secures the operating mechanism against unauthorized adjustments
• Free Tripping Mechanism: Guarantees disconnection even when locked
• Compact Design: Ideal for modern loadcentres and panelboards |
