The operating toggle can be secured with a padlock to prevent unauthorized adjustments, ensuring added safety in public or sensitive installations.
Even if the toggle is locked or sealed, the unit maintains a free tripping function to reliably disconnect the circuit in the event of a fault.

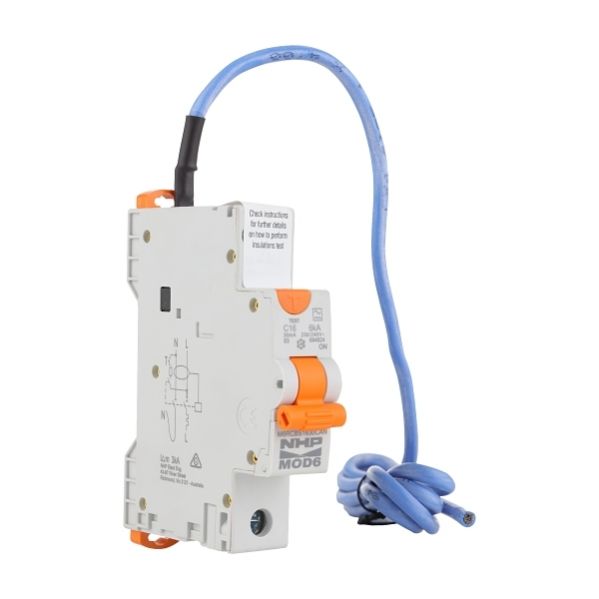

The NHP MOD6 1P20A RCBO (M6RCBS2030CAN) is an efficient, integrated solution for 1-phase electrical protection. Its dual functionality—combining both MCB and RCD features—ensures comprehensive circuit protection from overcurrent and earth leakage faults.
The device's optimized electrical performance, ease of installation with an integrated neutral pigtail, compact DIN rail–mountable design, and enhanced safety features like the padlockable toggle make it an ideal choice for modern residential and light commercial installations where reliability and space efficiency are paramount.
FEATURES:
Automatically interrupts excessive current due to overloads or short circuits, safeguarding the connected equipment and wiring.
Monitors the current balance between live and neutral conductors, and trips the circuit at a 30 mA threshold (Type A) to reduce the risk of electrical shock
Balances reliable fault detection with accommodation for moderate inrush currents, making it well-suited for general lighting and power circuits.
Ideal for applications requiring protection of a single live conductor, simplifying circuit design.
Built to withstand a mechanical life of 20,000 cycles and an electrical life of 10,000 cycles, ensuring reliable long-term performance
| Specification |
Detailed Description |
| Product Model |
NHP MOD6 1P20A PIGTAIL C CURVE TYPE A RCBO – Catalogue No. M6RCBS2030CAN |
| Product Type |
RCBO – An integrated device combining a miniature circuit breaker (MCB) with a residual current device (RCD) for overcurrent and earth leakage protection |
| Configuration |
Single-Pole (1P) with an integrated neutral pigtail for simplified wiring and reduced installation time |
| Rated Current |
20 A at 30°C – Maximum continuous current handling under standard operating conditions |
| Rated Voltage |
415 V AC – Suitable for typical 1-phase supply systems |
| Residual (Leakage) Current |
30 mA (Type A) – Provides sensitive earth leakage protection that disconnects the circuit when an imbalance occurs |
| Trip Curve |
C Curve – Optimized for general lighting and power circuits, accommodating moderate inrush currents (e.g., motor starting) to reduce nuisance tripping |
| Frequency |
50/60 Hz – Compatible with standard international power frequency requirements |
| Short-Circuit Breaking Capacity |
6 kA – Rated to safely interrupt high fault currents in compliance with AS/NZS 61009 |
| Mounting Method |
DIN Rail – Designed for secure, space-efficient installation on a standard 35 mm top hat rail in loadcentres and panelboards |
| Mechanical Life |
20,000 cycles – Robust construction for long-term mechanical durability |
| Electrical Life |
10,000 cycles – Reliable performance over a large number of tripping events |
